(8) Replacement of elevating motor section
1, Disconnect elevating motor lead wires (CN404).
2, Detach BELT (ROLLING).

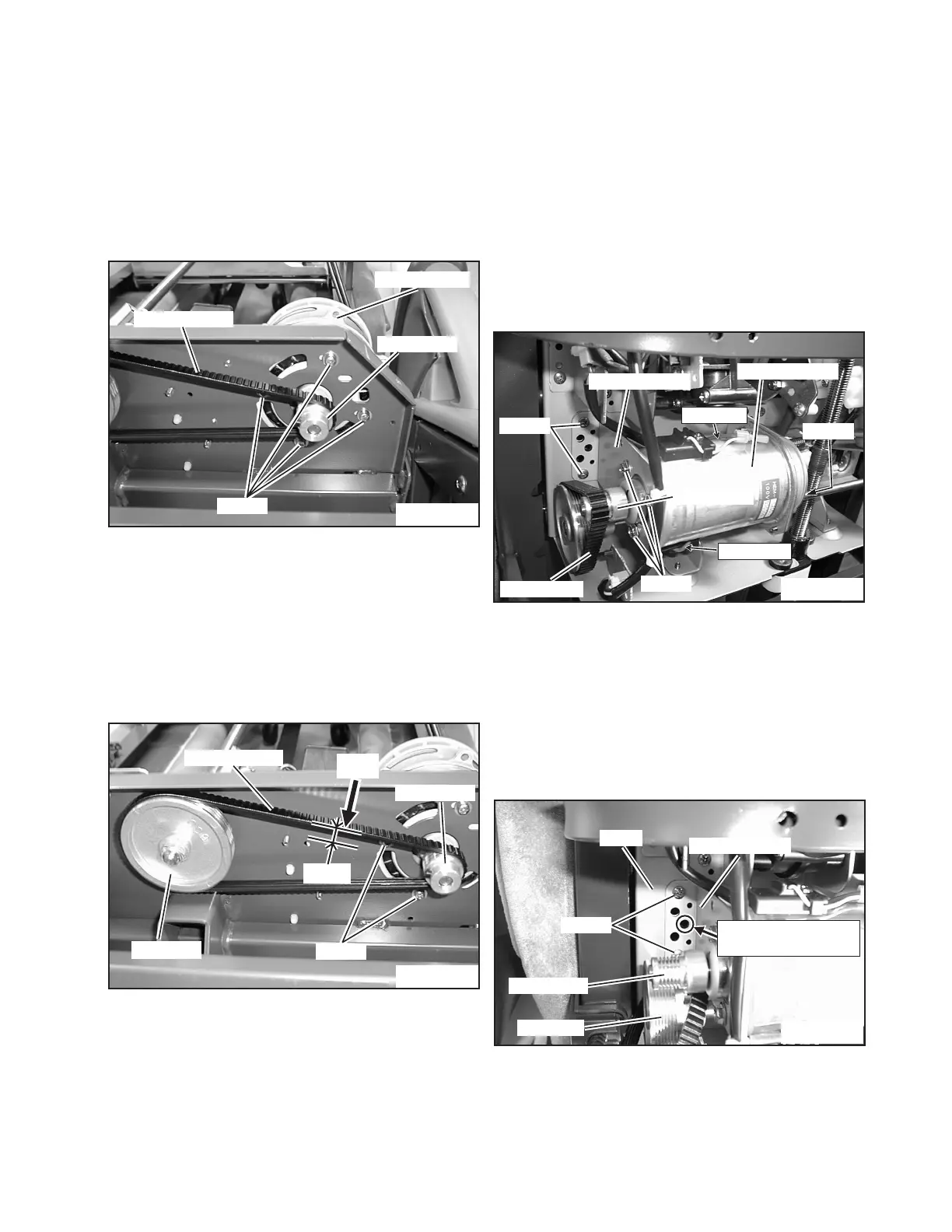

Photo.9
3, Detach
PULLEY (SM)
from elevating motor shaft,
and unscrew four elevating motor set screws.
Photo.9
Precautions for Assembly
Install belt over pulley, adjust tension in reference
to photo 10, and securely fix with four set screws.
Photo.10
Adjust and mount PULLEY (SM) so that grooves of
PULLEY (S) and PULLEY (SM) are aligned in a straight
line.
Photo.10
Take care to prevent grease from adhering to
driven sections such as belt, etc. (bad operation
occurs due to slip).
(9)
Replacement of tapping motor section
1, Disconnect connectors of tapping motor.
2, Detach BELT (TATAKI).
Photo.11
3, Unscrew 1 motor fixing screw.
Photo.11
4, Unscrew two
STAY A (MOTOR T)
set screws and
remove tapping motor section.
Photo.11
5, Remove
PULLEY (TM)
from tapping motor shaft
and unscrew three tapping motor set screws.
Photo.11
Precautions for Assembly
Securely fix
STAY A
with two
STAY A
set screws so
that holes of frame coincide with those of STAY A
(MOTOR T) (see round section of Photo 12).
Photo.12
Adjust and mount
PULLEY (TM)
so that grooves of
PULLEY (T)
and
PULLEY (TM)
are aligned in a straight
line.
Photo.12
Take care to prevent grease from adhering to
driven sections such as belt, etc. (bad operation
occurs due to slip).
Photo.9
Elevation motor
BELT (ROLLING)
Tapping motor
PULLEY (TM)
Cord (RED)
BELT (TATAKI)
STAY A (MOTOR T)
1
kg
6
mm
BELT (ROLLING)
PULLEY (S)
Frame
PULLEY (SM)
PULLEY (SM)
STAY A (MOTOR T)
PULLEY (TM)
PULLEY (T)
Cord (BLUE)
Photo.10
Photo.11
Photo.12
SCREW
SCREW
SCREW
SCREW
SCREW
In perfect alignment
of the holes
SCREW
-
15
-
Replacement Procedure
HEC-DR21 (TAIWAN)
