9

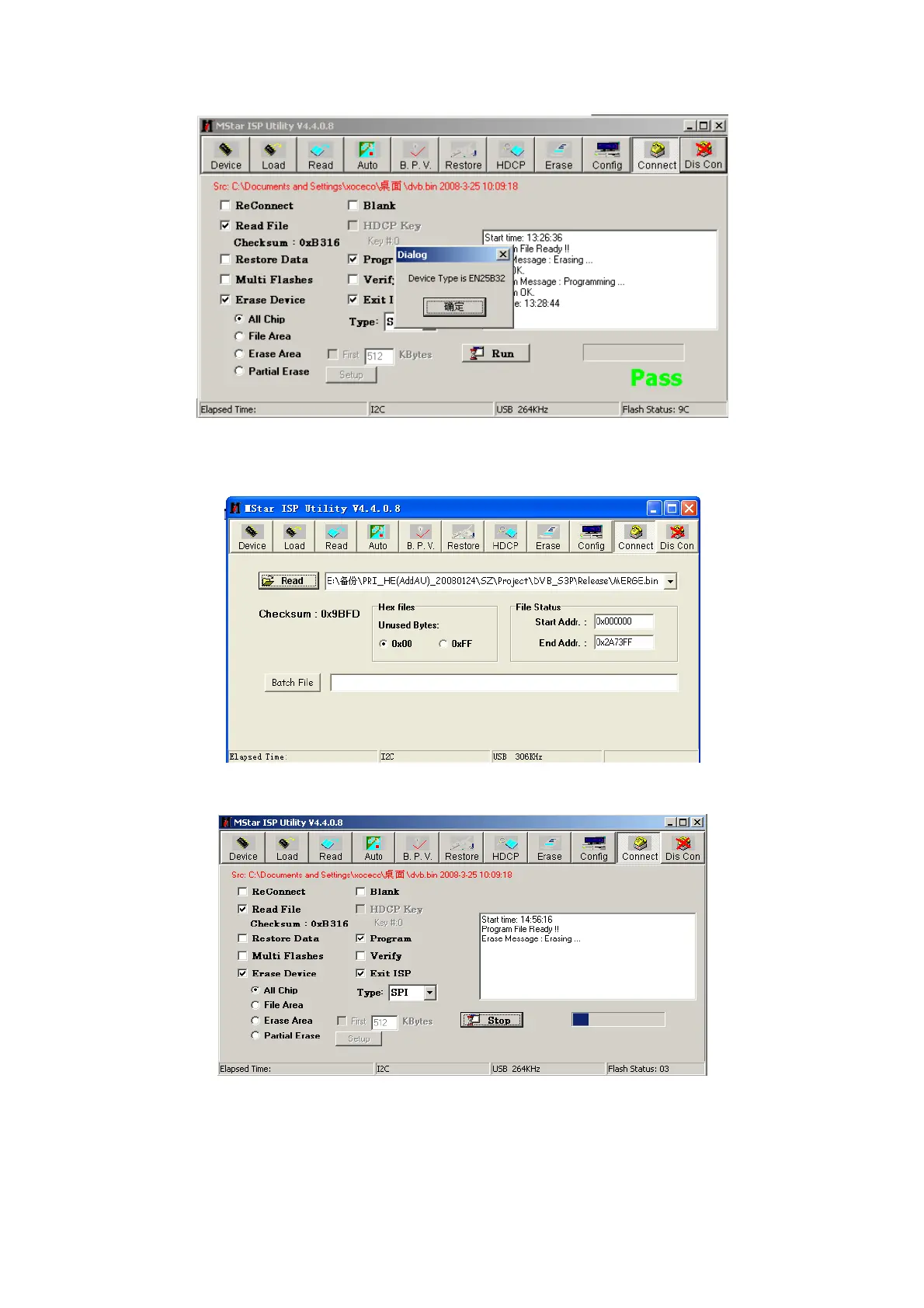

Fig2 Device EN25B52 successful connection
(3) Click “Read” and select the file written (MERGE.bin for example) as shown in fig3.
Fig3 the written file
(4) Click “Auto”, select “All chip” , “program” and other items as shown if fig4.
Fig4 selected items
(5) Press “Run” in fig4 to begin writing and there are two steps: Erase and Program.
(6) If the process of writing succeeds, it will display “Pass” near “Run” as shown in fig5.
