Sanyo LCD-32XA2 - Chassis Block Diagrams (Audio Signal Lines)

-5-

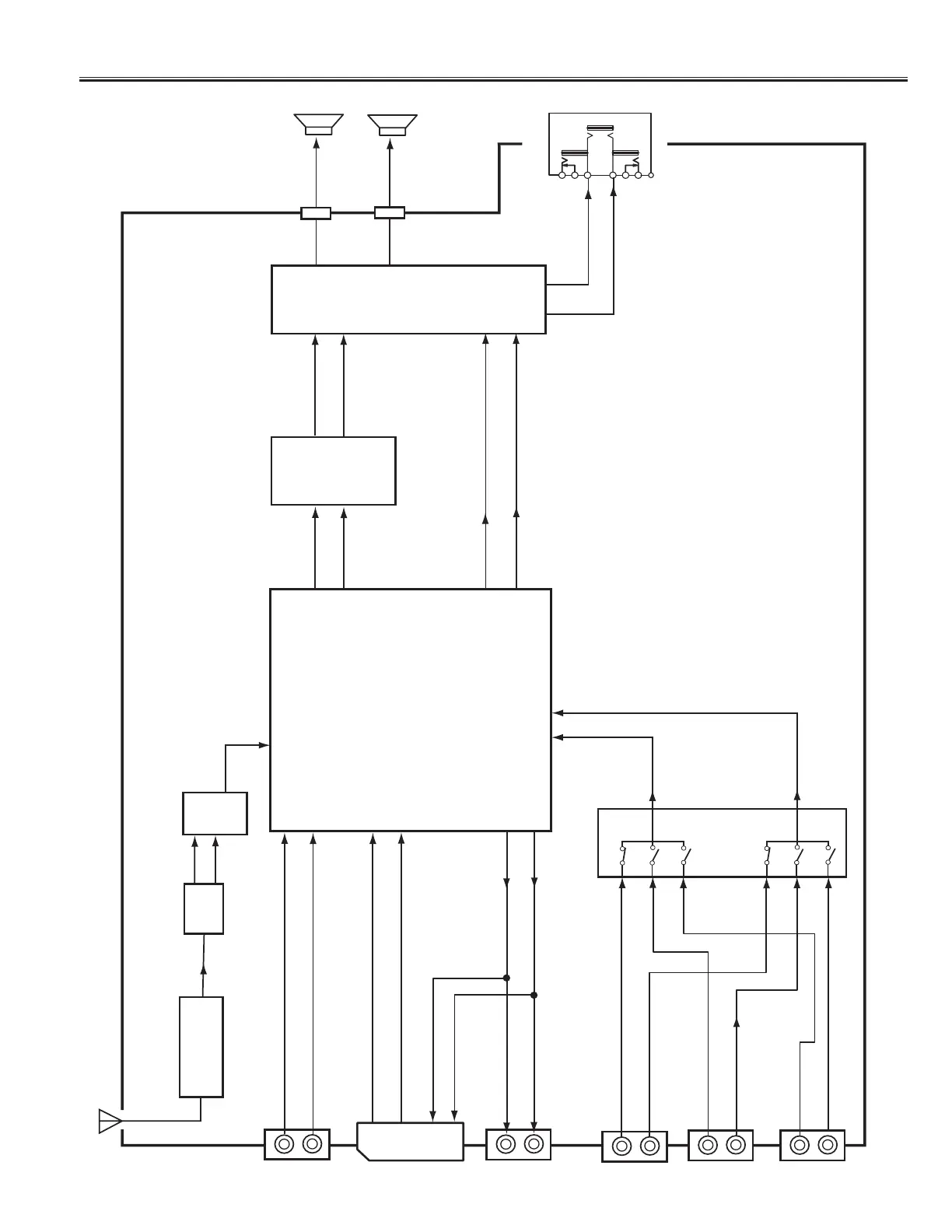

Chassis Block Diagrams
(Audio Signal Lines)
IF
A101
TUNER
SAW
FILTER
X122
2
AV2 SCART (K1002)
6
ASSY, PWB, SIGNAL
IC101
(TDA9886)
IF-PLL
DEMODULATOR
23
24
SIF1
SIF2
8
TV AUDIO OUT
AUDIO L-IN
AV1 TERMINAL (K1001)
AV5 TERMINAL (K1007)
AV3 TERMINAL (K1003)
AV4 TERMINAL (K1004)
78
9
10
IC3451
(STV8216)
AUDIO PROCESSOR &
DIGITAL SOUND DEMODULATOR
(NICAM/A2 STEREO/3D SURROUND)
1
IC1222
AUDIO SW
14
18
14
15
15
5
3
12
1
2
L-OUT
24
23
IC3501
(NJM2155)
BBE/BASS EXPANDER
SP902
K001
HEADPHONE JACK
R-OUT
AUDIO R-IN
AUDIO L-IN
AUDIO R-IN
AUDIO L-IN
AUDIO R-IN
AUDIO L-IN
AUDIO R-IN
AUDIO L-IN
AUDIO R-IN
13
R-OUT
AV3 L-IN
AV4 L-IN
AV5 L-IN
AV3 R-IN
AV4 R-IN
AV5 R-IN
AUDIO MONITOR OUT
(K1005)
19
AUDIO MONITOR OUT-L
3
AUDIO MONITOR OUT-R
AUDIO MONITOR OUT-L
AUDIO MONITOR OUT-R
L-IN
R-IN
IC001
(LA4919N)
AUDIO AMP.
28
29
1
24
AUDIO R-OUT
AUDIO L-OUT
6
19
13
9
AUDIO R-OUT
AUDIO L-OUT
15/16
24/25
SP901
L-OUT
KSPL
KSPR
31
29
HEADPHONE L-OUT
HEADPHONE R-OUT
1
2
27
28
L-OUT
R-OUT
