Sanyo MCD-Z100F User Manual

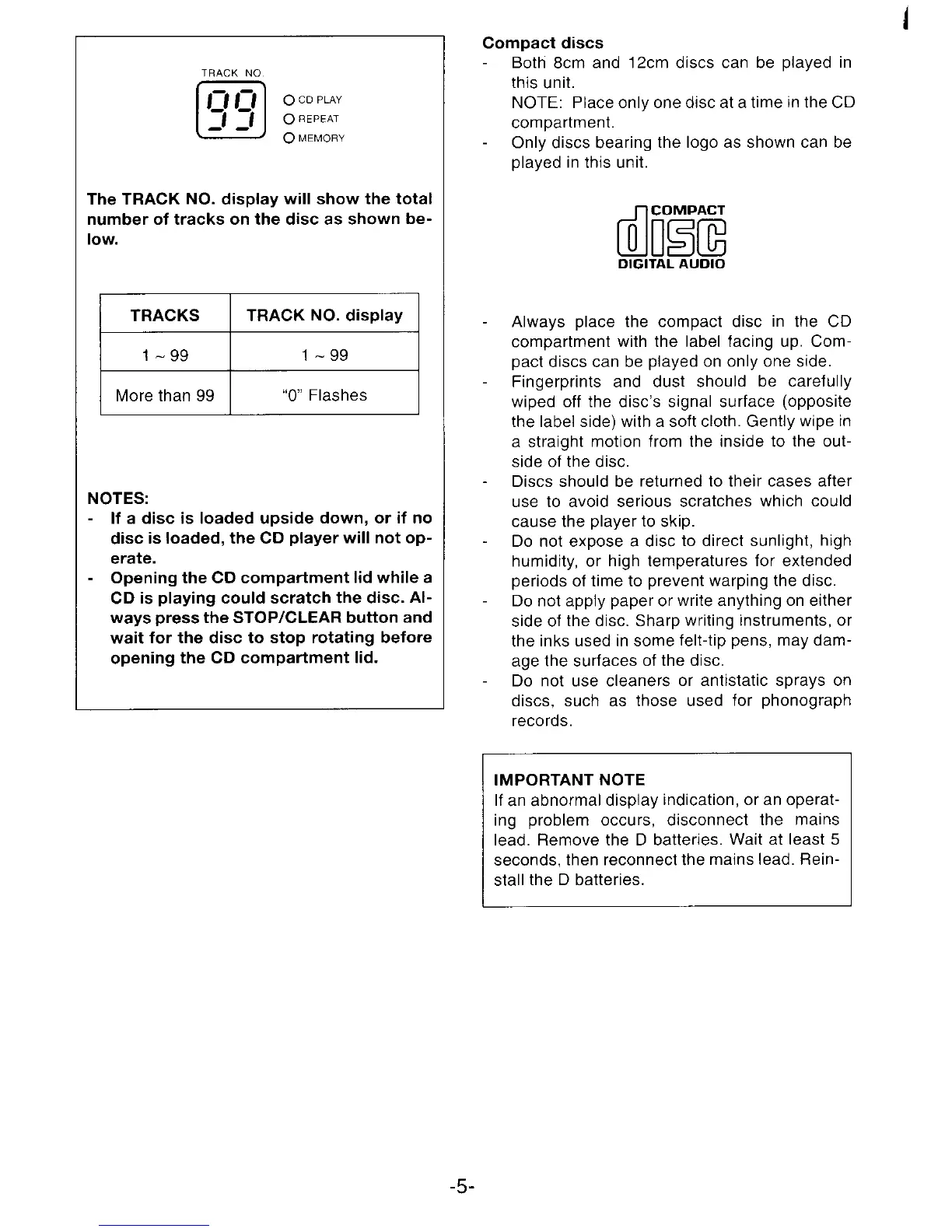

TRACK NO
c1
/:/ /:/ o CD PLAY
/ / c) REPEAT
.-
0 MEMORY
The TRACK NO. display will show the total
number of tracks on the disc as shown be-
low.
E
NOTES:
- If a disc is loaded upside down, or if no
disc is loaded, the CD player will not op-
erate.
- Opening the CD compartment lid while a
CD is playing could scratch the disc. Al-
ways press the STOPICLEAR button and
wait for the disc to stop rotating before
opening the CD compartment lid.
Compact discs
Both 8cm and 12cm discs can be played in
this unit.
NOTE: Place only one disc at a time in the CD
compartment.
Only discs bearing the logo as shown can be
played in this unit.
~iwi
DIGITAL AUDIO
Always place the compact disc in the CD
compartment with the label facing up. Com-
pact discs can be played on only one side.
Fingerprints and dust should be carefully
wiped off the disc’s signal surface (opposite
the label side) with a soft cloth. Gently wipe in
a straight motion from the inside to the out-
side of the disc.
Discsshould be returned to their cases after
use to avoid serious scratches which could
cause the player to skip.
Do not expose a disc to direct sunlight, high
humidity, or high temperatures for extended
periods of time to prevent warping the disc.
Do not apply paper or write anything on either
side of the disc. Sharp writing instruments, or
the inks used in some felt-tip pens, may dam-
age the surfaces of the disc.
Do not use cleaners or antistatic sprays on
discs, such as those used for phonograph
records
IMPORTANT NOTE
If an abnormal display indication, or an operat-
ing problem occurs, disconnect the mains
lead. Remove the D batteries. Wait at least 5
seconds, then reconnect the mains lead. Rein-
stall the D batteries.
-5-

Sanyo MCD-Z100F Specifications

Power

ac_power_source	230-240 V, 50 Hz
dc_power_source	12 V (8 "D" size batteries)
output_power	3.0 W x 2 (DC max.)

Audio Specifications

frequency_response	80-12, 000 Hz (Normal tape)
s_n_ratio	70 dB
wow_flutter	undetectable

Radio Specifications

am_tuning_range	525-1710 kHz
fm_tuning_range	87.5-108 MHz
aerials	Built-in ferrite bar and telescopic rod aerials

CD Specifications

sampling_frequency	44.1 kHz
quantization	16 bits linear/ch
pick_up_wave_length	790 nm

Weight and Dimensions

dimensions	460x155x250 mm
weight	3.2 kg
