Sanyo MDF-C8V Brochure & Specs

SANYO E&E America Company
1062 Thorndale Avenue, Bensenville,
IL 60106 USA
Toll Free USA 800-858-8442 • Fax
630-238-0074
www.sanyobiomedical.com
SANYO Canada, Inc.
1- 300 Applewood Crescent,
Concord, Ontario L4K 5C7
905-760-4025 • Fax 905-760-9945
■
SANYO’s most advanced insulation system V.I.P.
®
PLUS™ enables reducing the thickness of insulation
to approximately one half compared to conventional
systems. Use of V.I.P. PLUS™ insulation material on the
front, left, and right sides enables a smaller installation
space with exceptional storage capacity to foot print
ratio.
■ Newly developed single-compressor system achieves
a space reduction and enables low-noise operation.
■
Achieves 40% higher energy conservation than
competing models with conventional insulation.
■
New refrigeration circuit without filter makes the
inconvenient customer maintenance procedure of filter
cleaning unnecessary.
■
Alarm lamp and buzzer offer secure warning of power
failure or abnormal temperature changes.
■
High and low temperature warning provides an
audible and visual alarm when the temperature
deviates more than ±5°C to ±20°C (adjustable) from
the set point.
■
Alarm ring back function ensures that buzzer will
resume operation should alarm conditions continue
after it is silenced.
■
Control panel with LED digital display for easy
operation.
EVOLUTIONARY DESIGN
SAFETY & ALARM
p r e s e r v a t i o n
w w w . s a n y o b i o m e d i c a l . c o m
DMVER1206.1
MDF-C8V

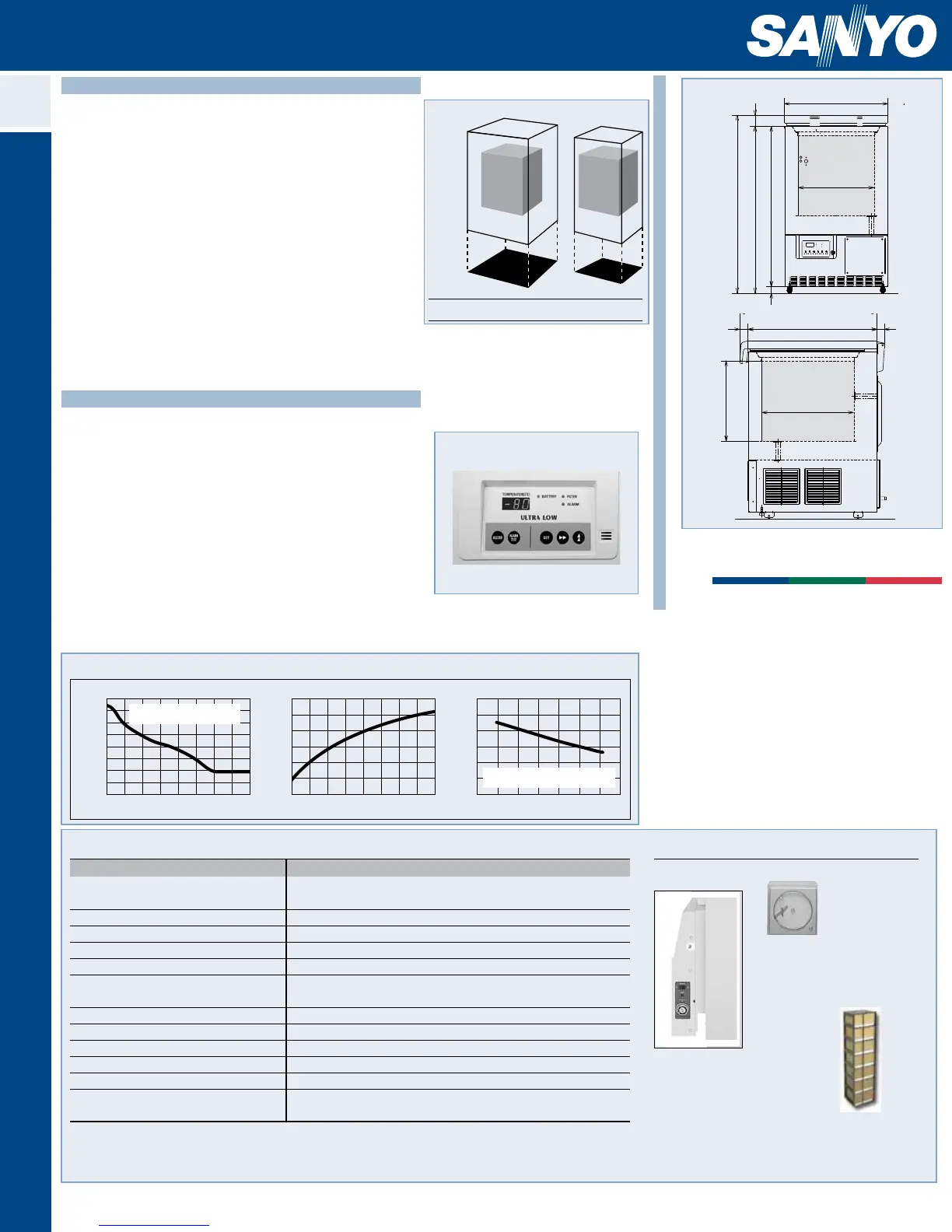

Dimensions [Unit : mm (inch)]
Specifications
Model
Temperature range
Maximum cooling performance
Exterior dimension (W x D x H)
Inner dimension
Effective capacity
Net weight
Storage capacity
Outer door/Inner door
Insulation
Cooling system
Compressor
Refrigerant
Evaporator
Alarm system
MDF-C8V
-60°C to -80°C (1°C increments)
-80°C (Ambient temp. 30°C)
21.6” x 27.0” x 37.2” (550 x 685 x 945 mm)
15.9” x 19.3” x 16.9” (405 x 490 x 430 mm)
3.0cu.ft. (84 Liter)
Approx. 67 kg (148lbs.)
2” box: 42pcs. (SCR-072 x 6 racks) 3” Box: 30 pcs.
Outer Lid: 1piece, Inner Lid: 1piece
New VIP® Plus™ Rigid polyurethane foam (HC)
115V / 60 Hz / 1Phase NEMA 5-15P Plug
Rotary type, Output: 400W (1/2 HP)
HFC
Tube on sheet type
• High/Low temp. alarm (5°C to 20°C) • Power failure alarm
• Remote alarm contact: DC30V, 2A
Features
Distributed by:
SANYO Electric Co., Ltd.
SANYO Sales & Marketing Corporation
5-15, Hiyoshi-cho 2-chome, Moriguchi City, Osaka, 570-8634, Japan
Telephone: +81-6-6992-0322 Fax: +81-6-6992-9291
URL http://www.sanyo.co.jp/cmg/biomedical
©2006 SANYO Printed in Japan 2006.10. MA. SHR110
Options
We design and manufacture products in accordance with ISO9001 & 14001 requirements.
Pull-down characteristics Pull-up characteristics during power failure CO2 backup system operation characteristics
Performance Data
40
20
0
–20
–120
–40
–60
–80
–100
0 7652 83 41
Temperature (˚C)
Time (hour)
20
0
–20
–40
–60
–80
–100
0 6 75321 84
Temperature (˚C)
Time (hour)
Central air temp. in cabinet
Ambient temp. 30˚C, No-load
5 25201510 30 35
12
10
15
0
Time (hour)
Ambient temperature (˚C)
Ambient temp. and maintenance
of –70˚C by injection of LCO2 (30kg)
More advanced insulation system:
V.I.P. PLUS
™
SANYO’s more advanced insulation system
V.I.P. PLUS
™
enables reducing the thick-
ness of insulation to approximately one half
compared to conventional systems. Small
freezers such as MDF-C8V takes full advan-
tage of this feature.
Use of V.I.P. PLUS
™
insulation material on
the front, left, and right sides enables a
smaller installation space with the highest-
class storage capacity ratio.
New cooling circuit enables filter-
less structure
A new cooling circuit makes the inconve-
nient customer maintenance procedure of
filter cleaning unnecessary.
Newly developed single-compressor
system
Use of a newly developed single-compres-
sor system achieves an approximately 40%
reduction in power consumption and en-
ables low-noise operation.
MDF-C8V
Conventional
model*
Rated power consumption
340W/345W
550W/600W
MTR-C954
CVK-UB4 (I)
LCO2 Back-up
system
Temperature Recorder
Back-up system
mounting kit
MDF-UBK
Inventory rack
SCR-072-I
SCR-053-I
MDF-C8VConventional insulation*
Capacity
84L
Capacity
86L
5.65 sq.ft
Installation
space
*SANYO comparison
*SANYO comparison (115V, 60Hz/230V, 50Hz)
550 (21.6”)
35 (1.4”)
852 (33.5”)
430 (16.9”)
887 (34.9”) 945 (37.2”)
58 (2.3”)
44 (1.7”)
685 (27.0”)
39 (1.5”)
729 (28.7”)
405 (15.9”)
490 (19.3”)
*Appearance and specifications are subject to change without notice.
*Cooling performance is indicated by the temperature reached at the center of the freezer (at ambient temperature of 30°C with no load).
lowest temperature.
4.05 sq.ft
