6

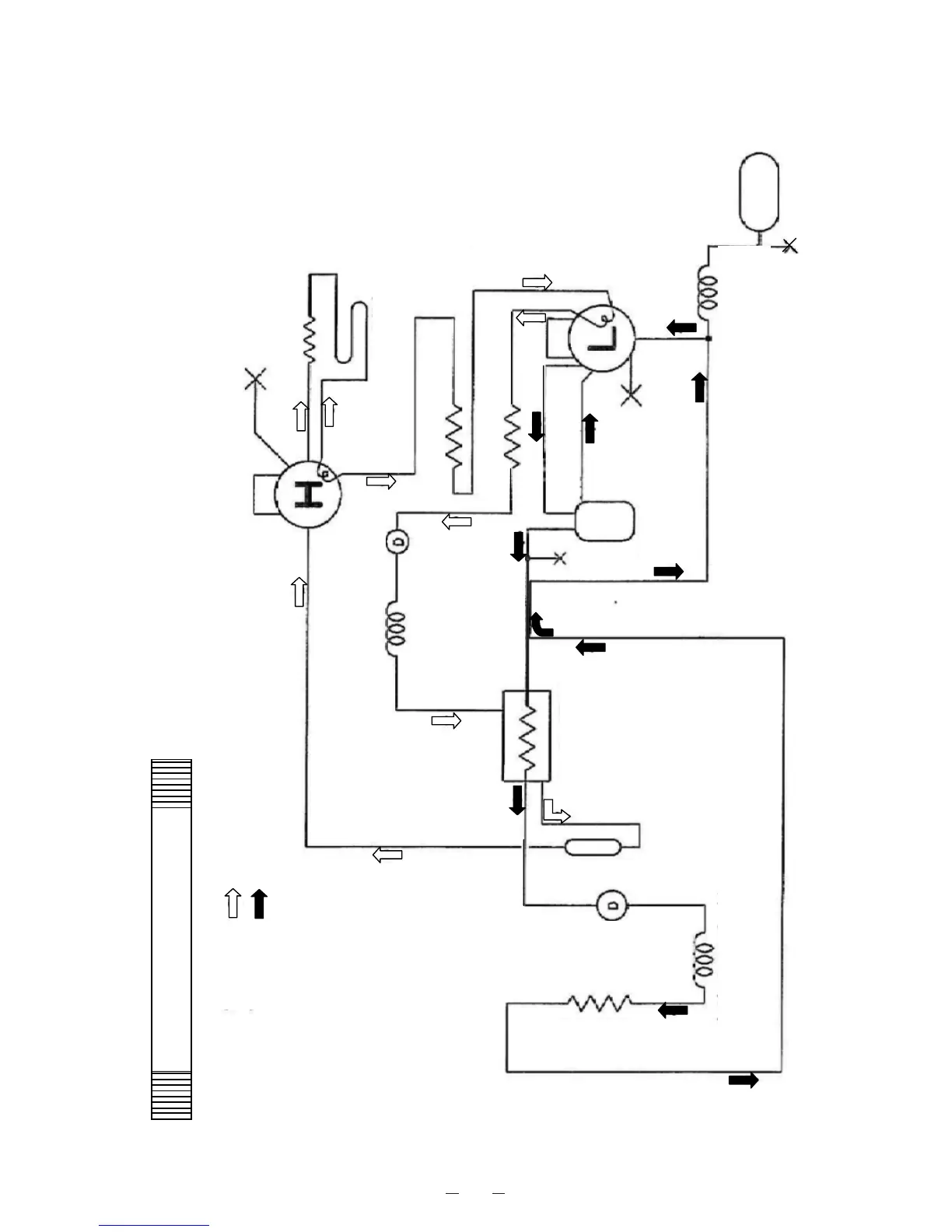

Refrigeration circuit
H side
L side
Compressor H
Pre-condenser
Frame pipe
Pre-condenser
Condenser
Dryer H
Capillary tube H
Compressor L
Oil separator
Capillary tube
EX
EX tank
Heat exchanger
Cascade condenser
Capillary tube L
Header
Dryer L
Evaporator
