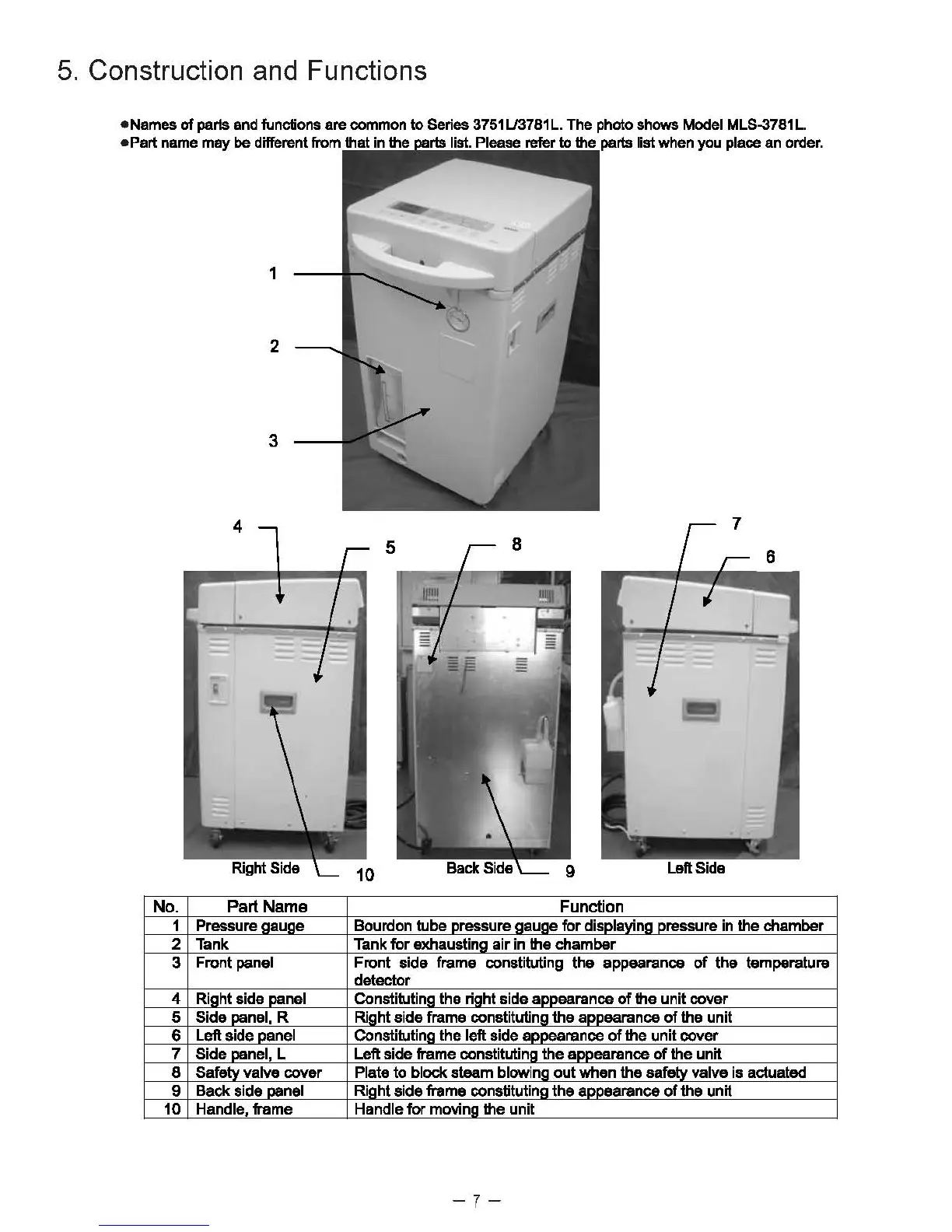

5.
Construction and Functions
_
Names
of parts
and
functions are
common
to Series
3751
U3781
L.
The
shows
Model
MLS-3781
L.
.
Part
name
may
be
I I list
when
you
place
an
order.
1
2
3
4
7
-
,
No. Part Name Function
1
Pressure gauge Bourdon tube pressure gauge for displaying pressure
in
the chamber
2
Tank
Tank
for exhausting air
in
the chamber
3
Front panel Front side frame constituting the appearance of the temperature
detector
4 Richt side
Danel
Constitutina the richt side appearance
of
the unit cover
5 Side
panel.
R Right side frame constituting the appearance
of
the unit
6
Left side panel Constitutin the left side appearance
of
the unit cover
7
Side
panel,
L Left side frame constituting the appearance
of
the unit
8
Safety valve cover Plate to block steam
blOW'ing
out when the safety valve
is
actuated
9
Back side
Danel
Richt side frame constitutina the appearance of the unit
10 Handle, frame
Handle for moving the unit
-7-
