15
Thereinto:
Pin16 is the PIP
TV signal input
Pin8 foot
is
A
V or Y
(
SV) input
Pin1 is C (SV) sig
nal input
Pin7 is SCART
CVBS or
Y
sig
nal input
Pin80 is SCART
C sig
nal input

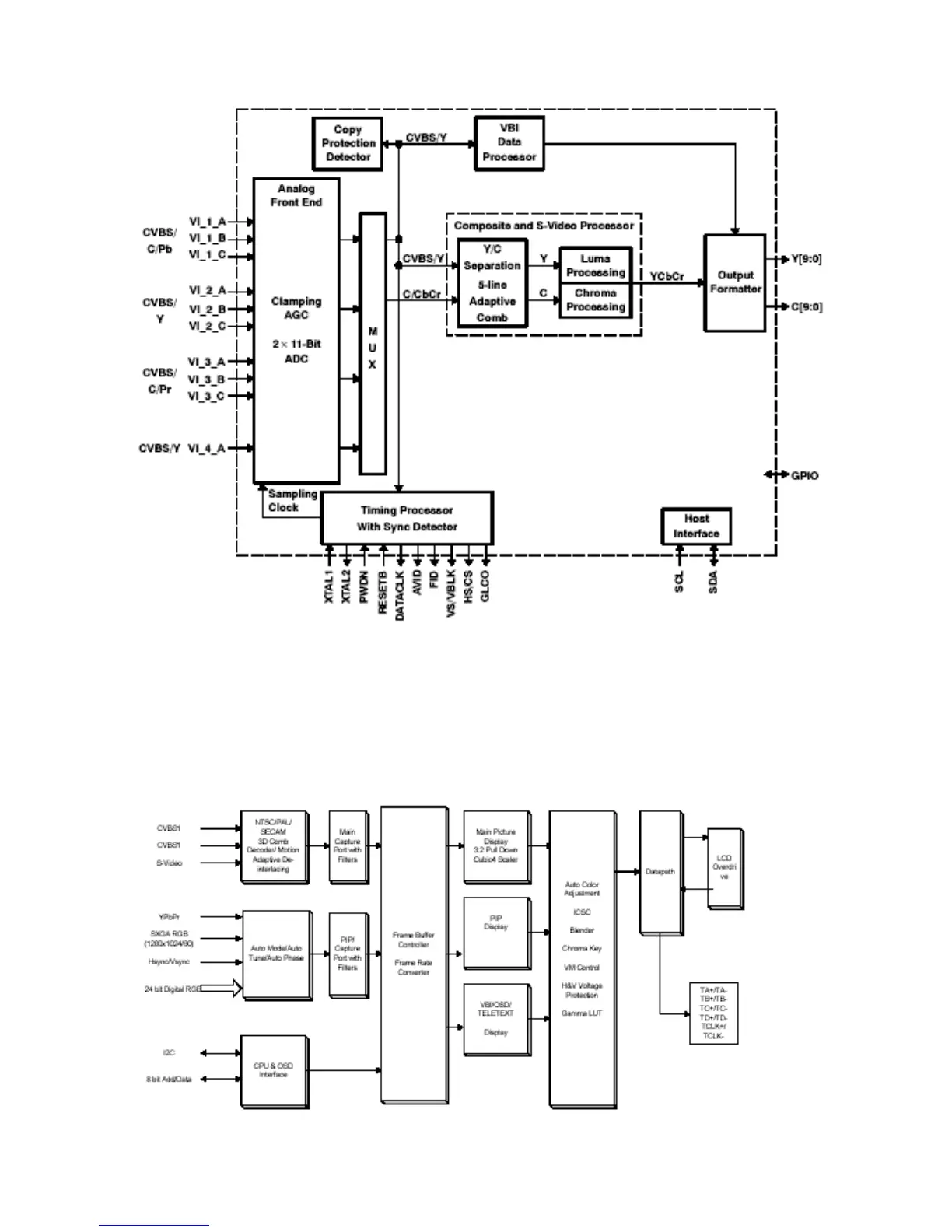

3.2 SVP-EX62 diag
ram shown as f
ollows:
16
18
Table of Contents
Table of Contents
2
Safety Precautions
3
Alignment Equipment
5
Alignment Flow-Chart
5
Unit Adjustments
5
Alignment Instructions
5
EEPROM Initialization
6
White Balance Adjustment
6
Performance Check
6
TV Function
6
SCART2 Terminal Function
7
Ypbpr Terminal
7
SCART1 Terminal Function
7
Check SCART OUTPUT Special Function
7
Factory Option Menu
8
Factory Audio Setting
8
Hp Volumesetting
8
Factory Video Limit Setting
9
The Image Analog Setting
9
SOUND Equilibrium Value Setting
10
Method of Software Upgrading
11
Block Diagram
14
TV Board
14
Digital Board
14
Working Principle Analysis of the Unit
14
Including
15
Sound Parts
15
Descriptions of the Pins
16
Picture Parts
16
Thereinto
17
Block Function of Panel
18
Trouble Diagnosis
18
The Screen Is Not Bright
18
Diagnose and Service of Panel
18
Wiring Diagram
21
Assembly List
22
No Raster, no Picture, no Sound
23
Trouble Shooting Guide
23
With Sound but no Picture
24
No Picture on AV
25
A Certain Channel Is Abnormal
25
With Picture but no Sound
25
No Picture on S-Terminal
26
NO Picture of TV Channel
26
Mainframe
26
Sub Frame
27
No Picture of SCART2
27
No Picture of SCART1
28
No Picture of HDMI
28
No Picture of YPBPR or YCBCR
29
No of Picture of D-SUB Channel
29
NO SOUND of HDMI Channel
30
Abnormal of the Picture
31
Color Abnormal
31
Schematic Diagram
32
