Sanyo RD2016 - Main Pcb Assy

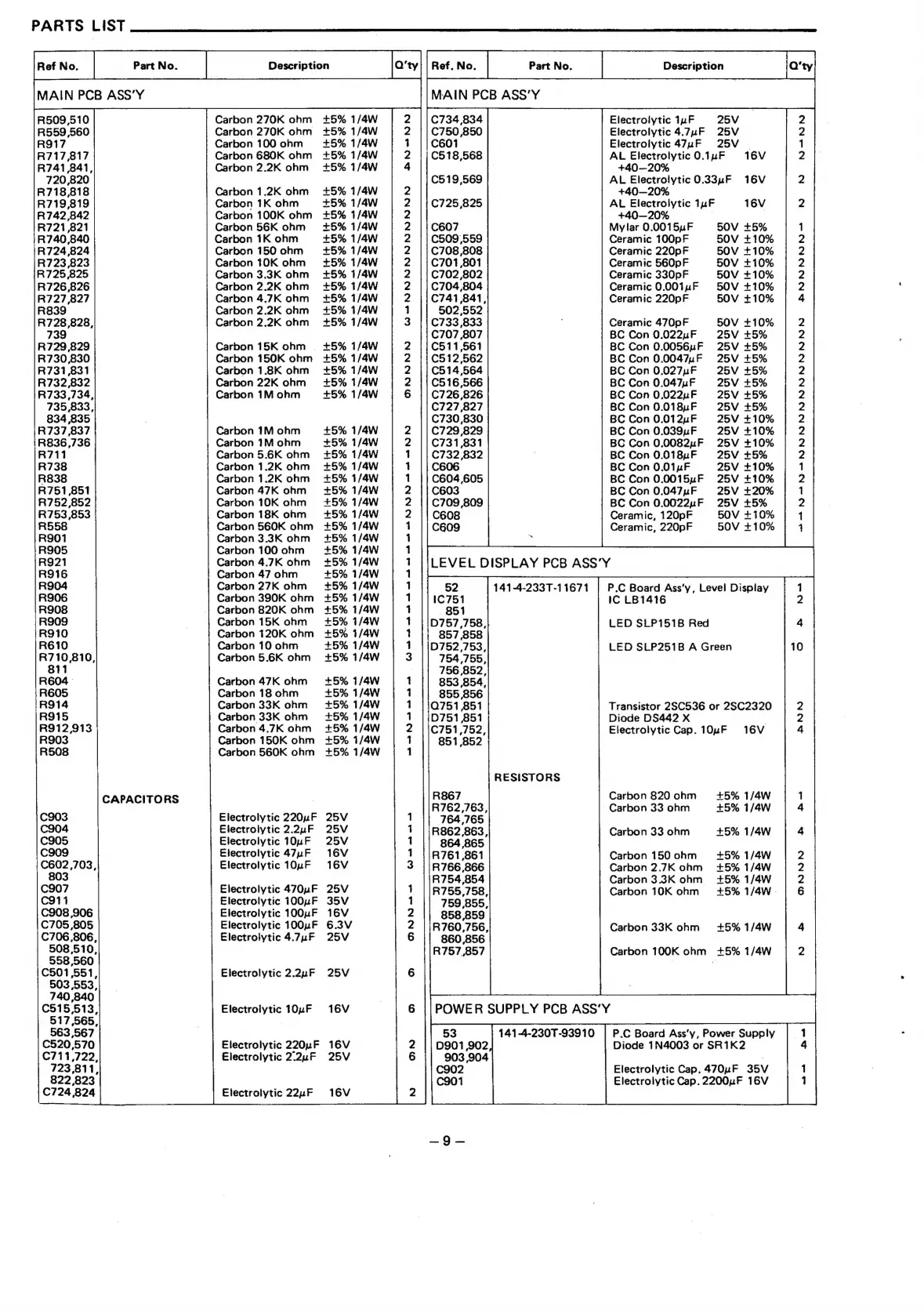

PARTS LIST
MAIN PCB ASS‘Y
ine [wns | mee
R509,510 Carbon 270K ohm +5% 1/4W
R559 ,560 Carbon 270K ohm +5% 1/4W
R917 Carbon 100 ohm +5% 1/4W
R717,817 Carbon 680K ohm +5% 1/4W
R741,841, Carbon 2.2K ohm +5% 1/4W
720,820
R718,818 Carbon 1.2K ohm +5% 1/4W
R719,819 Carbon 1K ohm +5% 1/4W
R742 ,842 Carbon 100K ohm +5% 1/4W
R721 821 Carbon 56K ohm = +5% 1/4W
R740,840 Carbon 1K ohm +5% 1/4W
R724 824 Carbon 150 ohm +5% 1/4W
R723 823 Carbon 10K ohm +5% 1/4W
R725 825 Carbon 3.3K ohm +5% 1/4W
R726 ,826 Carbon 2.2K ohm +5% 1/4W
R727 ,827 Carbon 4.7K ohm +5% 1/4W
R839 Carbon 2.2K ohm +5% 1/4W
R728,828, Carbon 2.2K ohm +5% 1/4W
739
R729 829 Carbon 15K ohm = +5% 1/4W
R730,830 Carbon 150K ohm +5% 1/4W
R731,831 Carbon 1.8K ohm +5% 1/4W
R732,832 Carbon 22K ohm +5% 1/4W
R733 ,734, Carbon 1M ohm +5% 1/4W
735,833,
834 835
R737 837 Carbon 1M ohm +5% 1/4W
R836 ,736 Carbon 1M ohm +5% 1/4W
R711 Carbon 5.6K ohm +5% 1/4W
R738 Carbon 1.2K ohm +5% 1/4W
R838 Carbon 1.2K ohm +5% 1/4W
R751,851 Carbon 47K ohm +5% 1/4W
R752,852 Carbon 10K ohm +5% 1/4W
R753 ,853 Carbon 18K ohm = +5% 1/4W
R558 Carbon 560K ohm +5% 1/4W
R901 Carbon 3.3K ohm +5% 1/4W
R905 Carbon 100 ohm = +5% 1/4W
R921 Carbon 4.7K ohm +5% 1/4W
R916 Carbon 47 ohm +5% 1/4W
R904 Carbon 27K ohm +5% 1/4W
R906 Carbon 390K ohm +5% 1/4W
R908 Carbon 820K ohm +5% 1/4W
R909 Carbon 15K ohm = +5% 1/4W
R910 Carbon 120K ohm +5% 1/4W
R610 Carbon 10 ohm +5% 1/4W
R710,810, Carbon 5.6K ohm +5% 1/4W
811
R604 - Carbon 47K ohm +5% 1/4W
R605 Carbon 18 ohm +5% 1/4W
R914 Carbon 33K ohm +5% 1/4W
R915 Carbon 33K ohm +5% 1/4W
R912,913 Carbon 4.7K ohm +5% 1/4W
R903 Carbon 150K ohm +5% 1/4W
R508 Carbon 560K ohm +5% 1/4W
CAPACITORS
C903 Electrolytic 220uF
C904 Electrolytic 2.2uF 25V
C905 Electrolytic 10uF 25V
C909 Electrolytic 47uF 16V
C602,703, Electrolytic 10uF
803
C3907 Electrolytic 470uF
C911 Electrolytic 100uF 35V
C908 906 Electrolytic 100uF 16V
C705 ,805 Electrolytic 100uF 6.3V
C706,806, Electrolytic 4.7uF
508,510,
558,560
C501,551, Electrolytic 2.2uF
503,553,
740,840
C515 513 Electrolytic 10uF
517,565 7
563,567
C520,570 Electrolytic 220uF
C711,722, Electrolytic 2.2uF
723,811,
822,823
C724 824 Electrolytic 22uF
O RIND N DO WeNNMNNMN NNN NP ANN
Ca) wed wd ek ek ek et od ed wt wt ow A AQ A) SO = = AQ AD
GC) at ot oe =
ONIN = =
MAIN PCB ASS'Y
C734,834
C750 ,850
C601
C518,568
C519,569
C725,825
C607
C509,559
C708,808
C701 ,801
C702 ,802
C704,804
C741 841,
502,552
C733,833
C707 807
C511,561
C512,562
C514,564
C516 ,566
C726,826
C727 827
C730,830
C729 ,829
C731,831
C732,832
C709 809
C608
CE09
RESISTORS
Electrolytic 1pF
25V
Electrolytic 4.7uF 25V
Electrolytic 47uF
AL Electrolytic 0.1uF
+40-—20%
AL Electrolytic 0.33 uF
+40—20%
AL Electrolytic 1uF
+40—20%
My lar 0.001 5uF
Ceramic 100pF
Ceramic 220pF
Ceramic 560pF
Ceramic 330pF
Ceramic 0.0017 uF
Ceramic 220pF
Ceramic 470pF
BC Con 0.022yuF
BC Con 0.0056yF
BC Con 0.0047, F
BC Con 0.027uF
BC Con 0.047uF
BC Con 0.022uF
BC Con 0.018uF
BC Con 0.012uF
BC Con 0.039uF
BG Con 0.0082uF
BC Con 0.018uF
BC Con 0.01uF
BC Con 0.0015uF
BC Con 0.047 uF
BC Con 0.0022uF
Ceramic, 120pF
Ceramic, 220pF
25V |
16V
16V
16V
5O0V +5%
50V +10%
50V +10%
50V +10%
50V +10%
50V +10%
50V +10%
50V +10%
25V +5%
25V +5%
25V +5%
25V +5%
25V +5%
25V +5%
25V +5%
25V +10%
25V +10%
25V +10%
25V +5%
25V +10%
25V +10%
25V +20%
25V +5%
50V +10%
50V +10%
P.C Board Ass‘y, Level Display
IC LB1416
LED SLP151B Red
LED SLP251B A Green
Transistor 2SC536 or 2SC2320
Diode DS442 X
Electrolytic Cap. 10uF
Carbon 820 ohm
Carbon 33 ohm
Carbon 33 ohm
Carbon 150 ohm
Carbon 2.7K ohm
Carbon 3.3K ohm
Carbon 10K ohm
Carbon 33K ohm
Carbon 100K ohm
16V
+5% 1/4W
+5% 1/4W
+5% 1/4W
+5% 1/4W
+5% 1/4W
+5% 1/4W
+5% 1/4W -
+5% 1/4W
+5% 1/4W
P.C Board Ass'y, Power Supply
Diode 1N4003 or SR1K2
Electrolytic Cap. 470uF 35V
Electrolytic Cap. 2200uF 16V
NO NH NANA
== AD A= ND AO AD ND AD DD BAD RD ND RODD ND BNMNNMNN —
