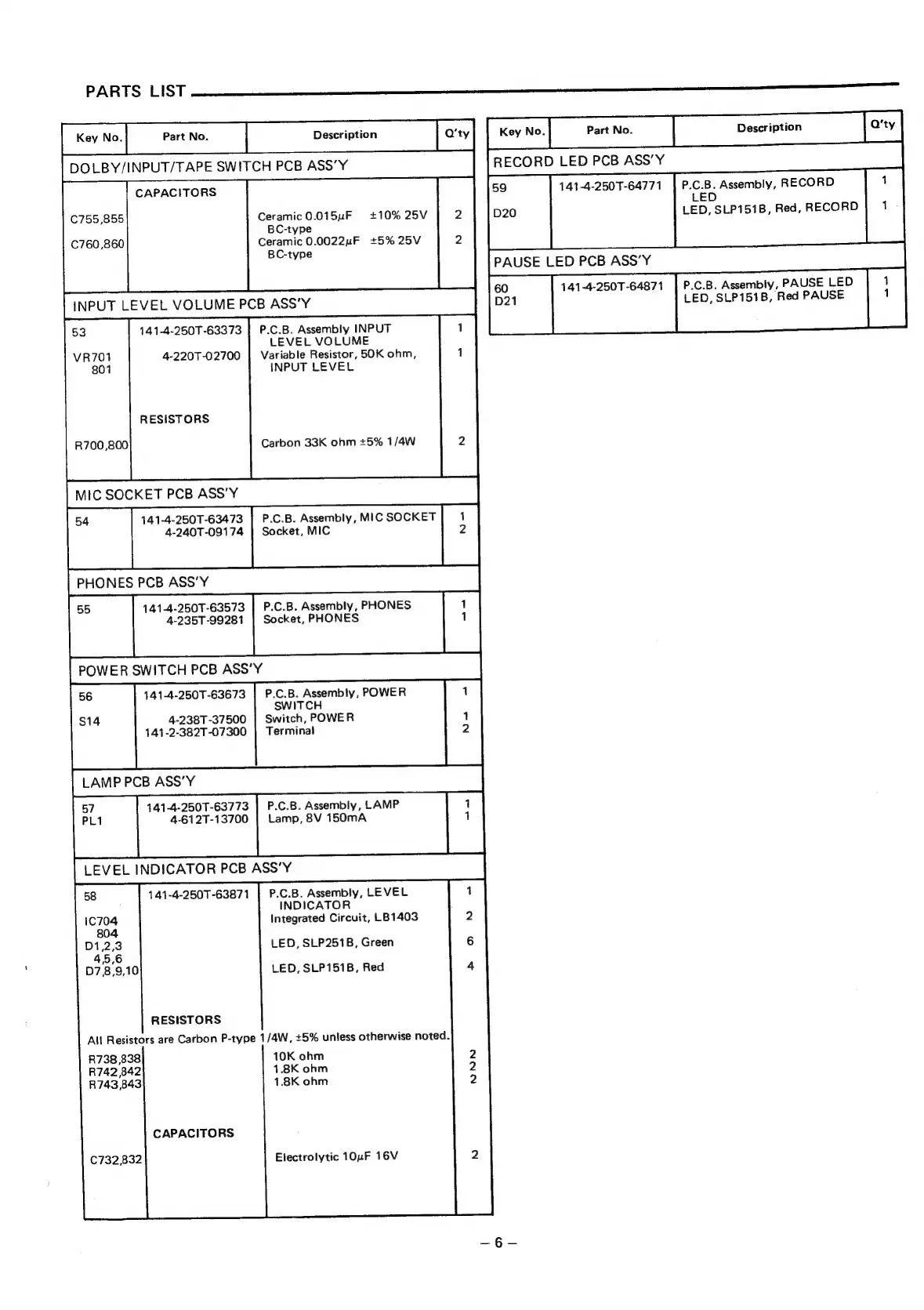

Sanyo RD250 - Page 7

PARTS LIST
DOLBY/INPUT/TAPE
SWITCH
PCB
ASS’Y
CAPACITORS
Pee] rome
RECORD LED PCB ASS'Y
141-4-250T-64771
P.C.B.
Assembly,
RECORD
LED
LED,
SLP151B,
Red,
RECORD
Ceramic 0.015yF
BC-type
Ceramic 0.0022uF +5% 25V
BC-type
+10% 25V
PAUSE LED PCB ASS'Y
141-4-250T-64871
P.C.B.
Assembly,
PAUSE
LED
LED,
SLP151B,
Red
PAUSE
INPUT LEVEL VOLUME PCB ASS'Y
141-4-250T-63373
P.C.B. Assembly INPUT
LEVEL VOLUME
Variable Resistor, 50K ohm,
INPUT LEVEL
4-220T-02700
RESISTORS
Carbon 33K ohm +5% 1/4W
MIC SOCKET PCB ASS'Y
141-4-250T-63473
4-240T-09174
P.C.B. Assembly, MIC SOCKET
Socket, MIC
PHONES PCB ASS’Y
141-4-250T-63573
4-235T-99281
P.C.B. Assembly, PHONES
Socket, PHONES
POWER SWITCH PCB ASS'Y
141-4-250T-63673
P.C.B. Assembly, POWER
SWITCH
Switch, POWER
Terminal
4-238T -37500
141-2-382T -07300
LAMP PCB ASS’Y
141-4-250T-63773
4-612T-13700
P.C.B. Assembly, LAMP
Lamp, 8V 150mA
LEVEL INDICATOR PCB ASS'Y
141-4-250T-63871
P.C.B. Assembly, LEVEL
INDICATOR
Integrated Circuit, LB1403
LED, SLP251B, Green
LED, SLP151B, Red
10K ohm
1.8K ohm
1.8K ohm
CAPACITORS
Electrolytic 10uF 16V
