Sanyo SAP-C91GA - Page 20

17

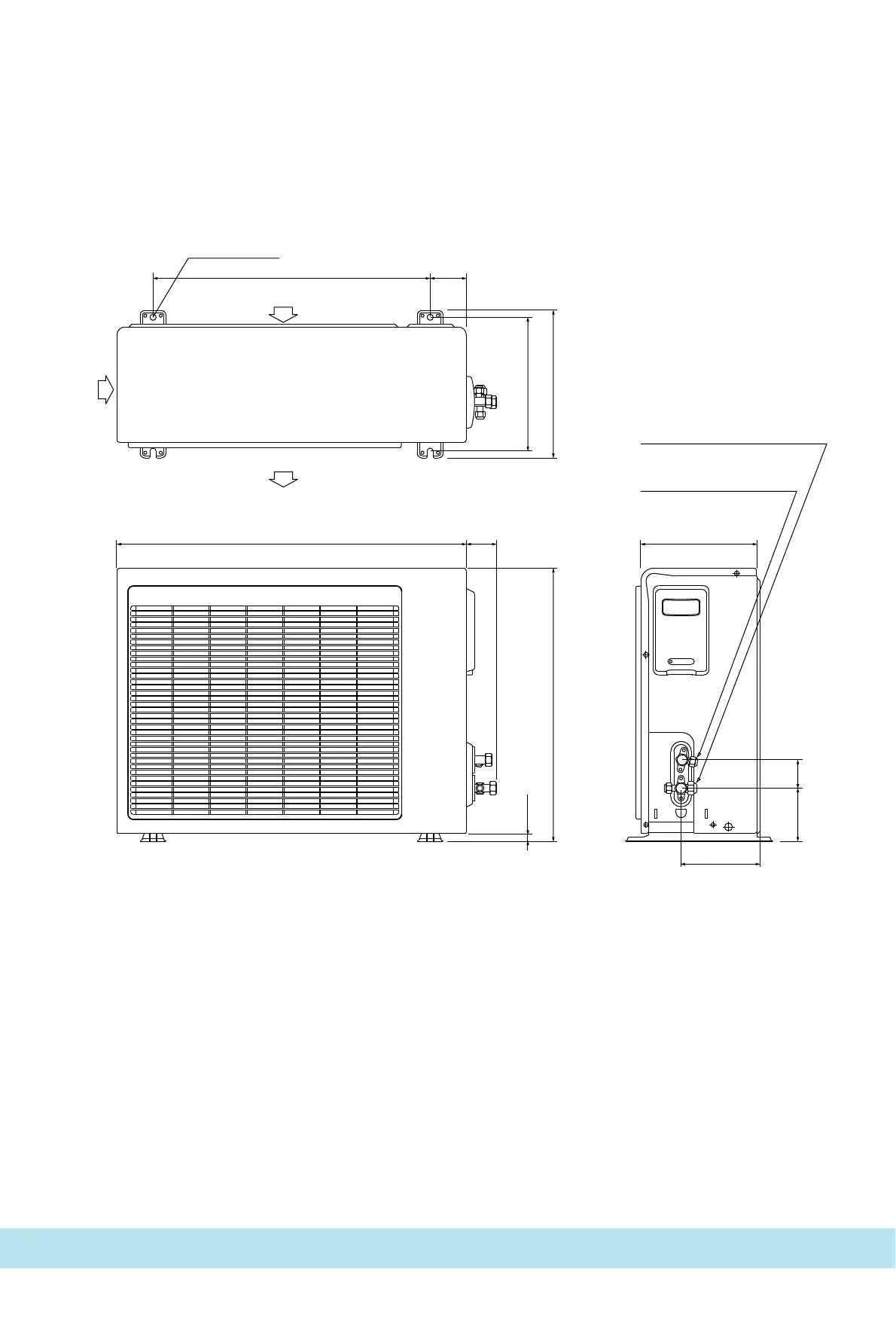

Outdoor Unit SAP–C71GA
SAP–C91GA
SAP–C91JA
680 58
530
15
225
Narrow tube service valve
ø6.35 (1/4")
Wide tube service valve
ø9.52 (3/8")
150
103 55
538
(C91 only)
2 – ø12 holes
71
286
260
Air intake
Air discharge
Unit : mm
