System Configuration
A - 3

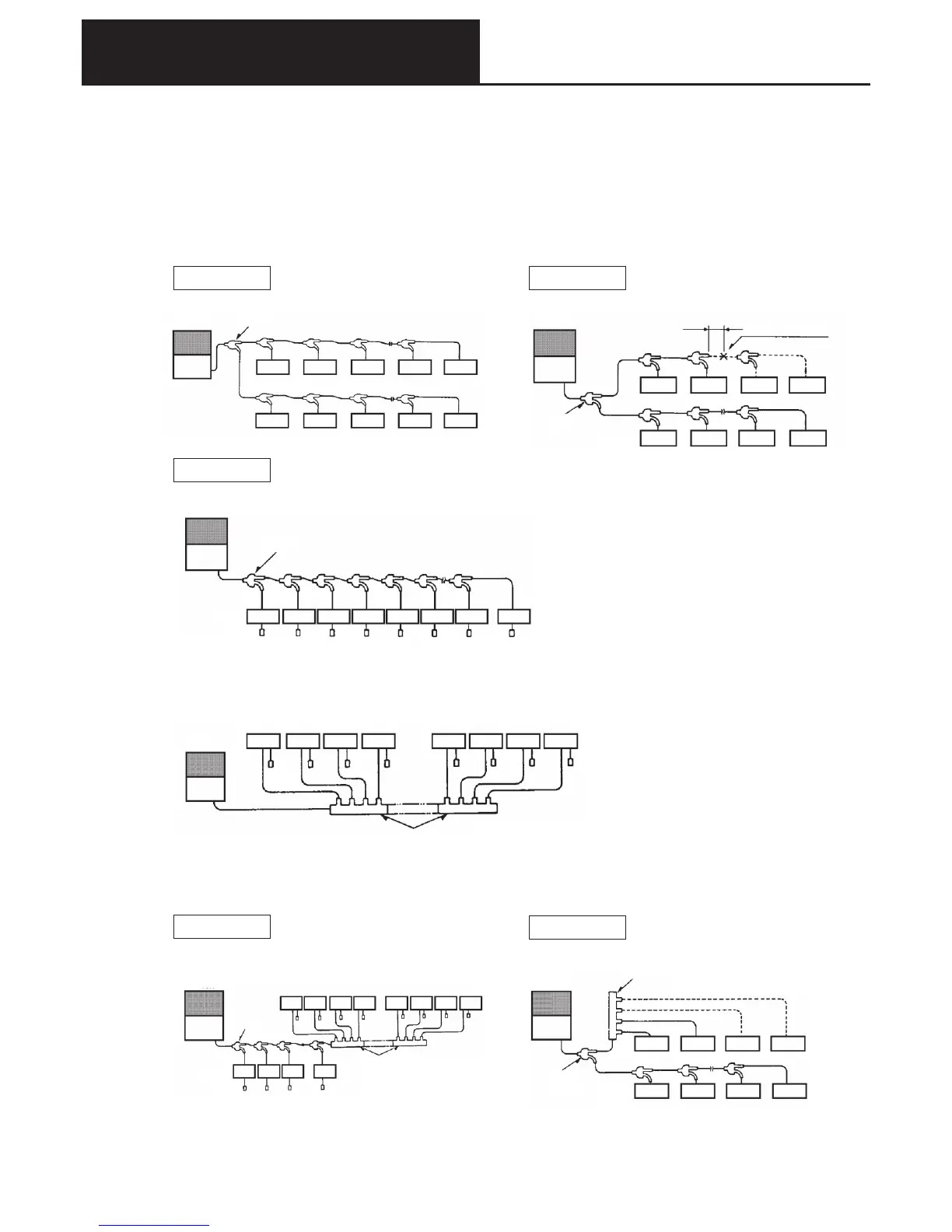

2. System Configuration
Example 1
(1) Multi-type system
■ Example of use of distribution pipe set (sold separately)
(The number of indoor units that can be connected is in the range 50-200% of the outdoor unit capacity, up to a maximum of
24 units)
● Example of use of header
● Example of use of combined header and pipe branch
● Example of use of pipe branch
Example 2
Example 3
* Line branch type
Example 1
Outdoor unit
Pipe branch
Indoor unit
Within 1 meter
Shut off valve
(supplied on site)
Outdoor unit
Pipe branch
Indoor unit
Outdoor unit
Pipe branch
Indoor unit
Remote control
Outdoor unit
Pipe branch
Indoor unit
Remote
control
Header
Note: From one header there can be up to 4
branches. For 5 or more branches in a
header system, use 2-3 headers.
Note: After branching from a
header, a pipe cannot be
branched again.
Outdoor unit
Indoor unit
Remote control
Header
Pipe branch
Outdoor unit
Indoor unit
Header
The branch ports of the header are closed
when the unit is shipped. When expanding
the system connect them to the pipework.
Example 2
