Outline of 3-WAY ECO-i SYSTEM
1
2
3
4
5
6
7
8
The compressor combination (DC inverter compressor + constant-speed compressor) allows smooth capacity
control from 0.8 HP to 48 HP.
Realization of smooth capacity control from
0.8 HP to 48 HP
For the outdoor units of 8, 10, 12, 14 and 16 HP, a DC
inverter and a constant-speed compressor both are installed.
Correspondence to capacity control, which is difficult with
a constant-speed compressor, is possible smoothly with
a DC inverter. The performance difference at the time of
start of a constant-speed compressor also is eliminated.

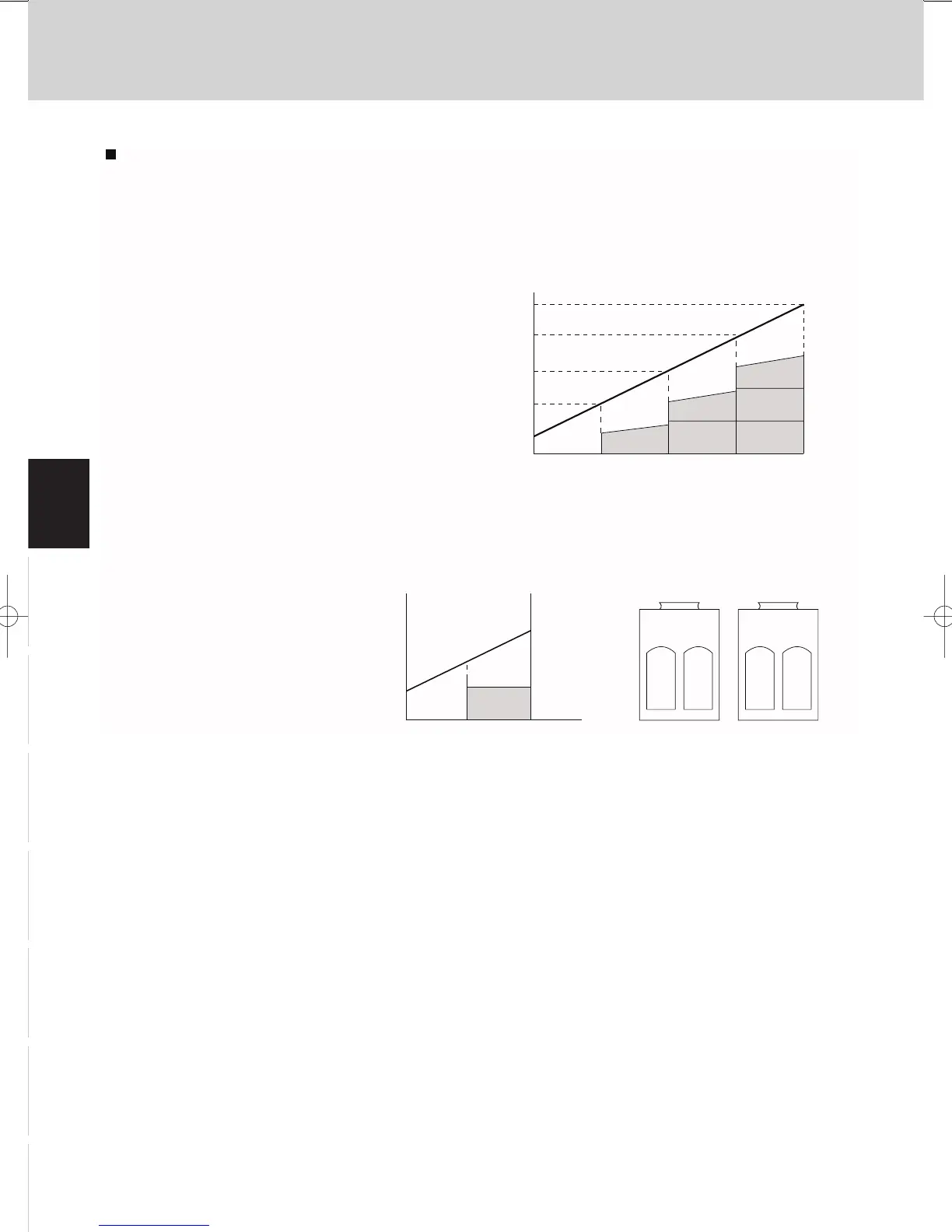

Capacity control
Capacity
(Load)
Example of 2 unit connection
DC1
DC2
AC1 AC1
DC1
DC2
AC2
DC1
DC2
DC1
4
8
12
16
Priority selection is included for pairs of DC units (DC1 and DC2).
Priority selection is included for pairs of AC units (AC1 and AC2).
DC1 AC1
DC1
AC1
DC1
DC2 AC2
In case of 16 HP system
In case of 8, 10, 12, 14, 16 HP system
2. Features of 3-WAY ECO-i SYSTEM
