8
Need help?
Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032
MULTICHANNEL RECEIVER CONNECTED TO
DIGITAL AUDIO OUT JACK
SET-TOP BOX, DVD PLAYER
or similar device
1
GREEN, BLUE, RED JACKS
OPERATING TIPS:
Press the INPUT key after connecting cables to
access the AV Inputs. There is NO need to tune
to a blank channel.
You DO NOT need to tune the DTV to Channel 3
or 4 to view a DVD program.
BACK VIEW OF DTV
PHONO-TYPE
DIGITAL AUDIO
OUT CABLE
(Not supplied)
MULTICHANNEL RECEIVER
1
BACK VIEW
OF DTV
(VIDEO 3)

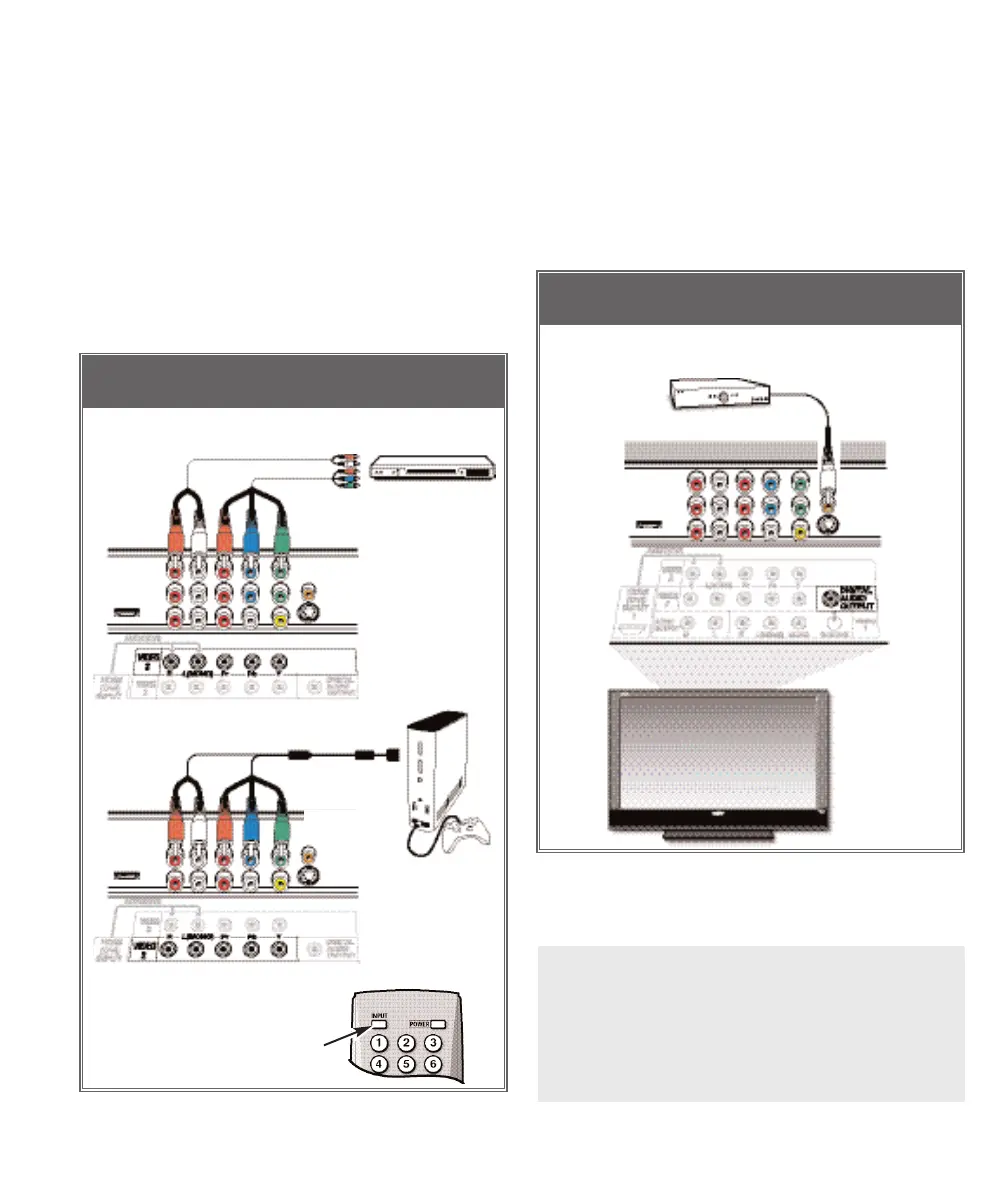

DVD PLAYER / GAME SYSTEM CONNECTED TO
VIDEO 2 / VIDEO 3 JACKS (Y-green Pb-blue Pr-red)
2
AUDIO L/R
JACKS
BACK VIEW
OF DTV
(VIDEO 2)
2
AUDIO L/R
JACKS
GAME SYSTEM
1
Connect a Component Cable to the VIDEO 2 / 3
Green, Blue, and Red video jacks.
2
Connect an Audio Cable to the VIDEO 2 / 3
White and Red audio jacks.
3
Press INPUT to select Video 2 or Video 3 to
view the program.
Note: VIDEO 2 and VIDEO 3 jacks have identical
functions. Compatible video devices can be
connected to either or both jacks.
VIDEO 2 & 3 COMPONENT: GREEN,
BLUE, RED—
An Exceptional Picture
CONNECTING A STB, DVD, OR GAME
1
Connect a Multichannel Receiver to the DTV
Digital Audio Output as shown.
Note: Dolby
®
Digital 5.1 audio is available at the Digital
Audio Output only when received as part of a
Digital Antenna signal being viewed on the
screen.
DIGITAL AUDIO JACK
CONNECTING A MULTICHANNEL RECEIVER
TO THE DTV
1
GREEN, BLUE,
RED JACKS
REMOTE CONTROL
3
IMPORTANT FACT:
To view available High-Definition
(HD) programs, you must connect your HD equipment
to the Component or HDMI jacks.
To Next Page
