Double Mount Installation - Round Metal Clock
9) Attach the base of the pole to the mounting plate so that the lip is on the top of the base, and the holes
for the screws are on the bottom of the base. Hang the base on the mounting plate, attach the wires
from the bottom of the pole to the wires in the gang box, then screw the other side of the base onto the
mounting plate using the two black screws you set aside before.

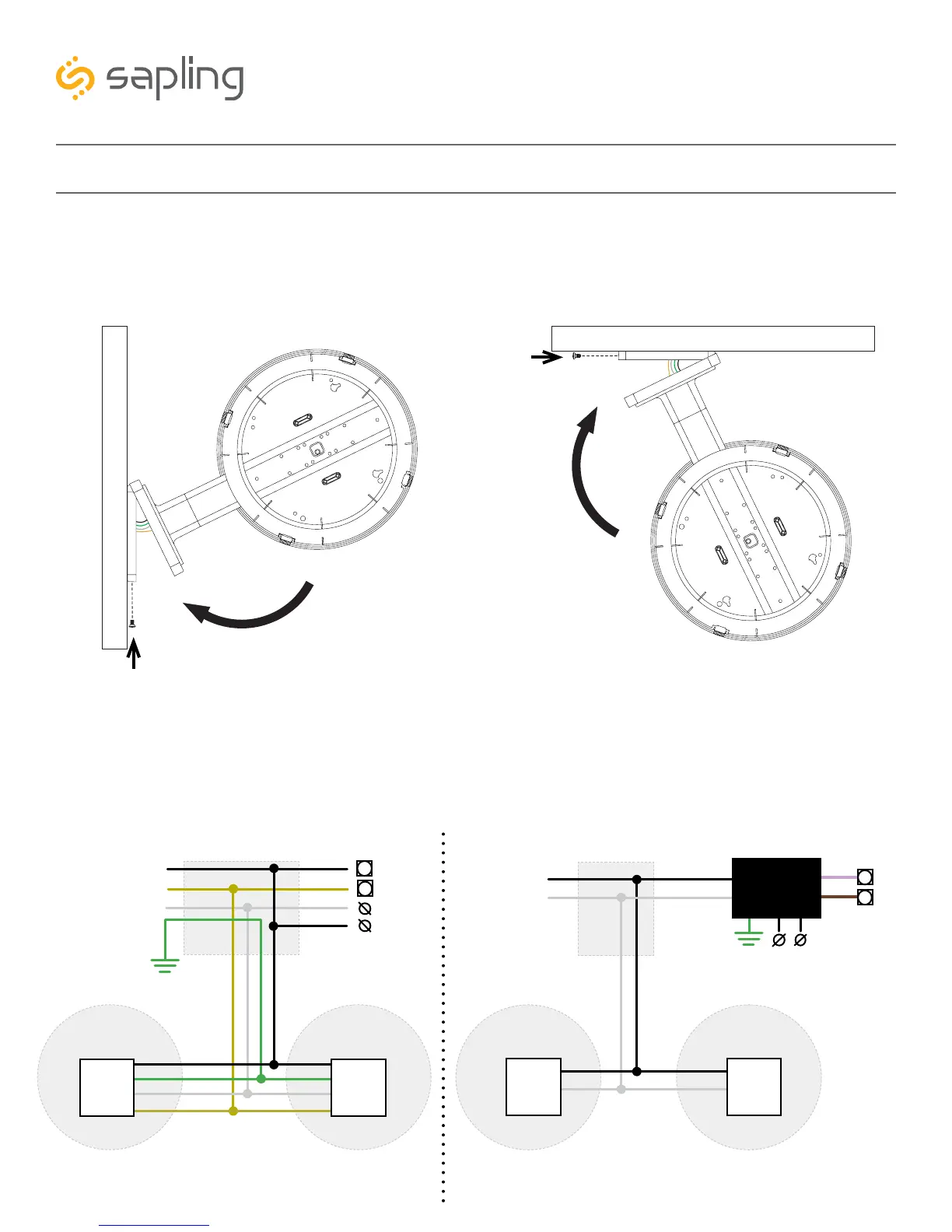

10) Attach the power connectors to the wires you threaded through the pole. Consult the diagrams
below for additional help, or see the sections of this manual labeled “3-Wire Synchronous (Sync-Wire)
Communication Wiring Information” or “2-Wire Digital Communication Wiring Information” for additional
details, depending on your system.
1
2
WALL
1
2
CEILING
3-Wire Sync
YellowYellow
BlackBlack
WhiteWhite
Black
White
Yellow
27/24
26/23
To next
clock
Power
Common
Master Clock
CLOCK 1CLOCK 2
Gang
Box
GreenGreen
Green
Ground
2-Wire Digital
BlackBlack
WhiteWhite
Black
White
18
19
To next
clock
Master Clock
CLOCK 1CLOCK 2
Gang
Box
115VAC or
230VAC
A2/B2/C2
A1/B1/C1
Input A
Input B
Converter
Box
