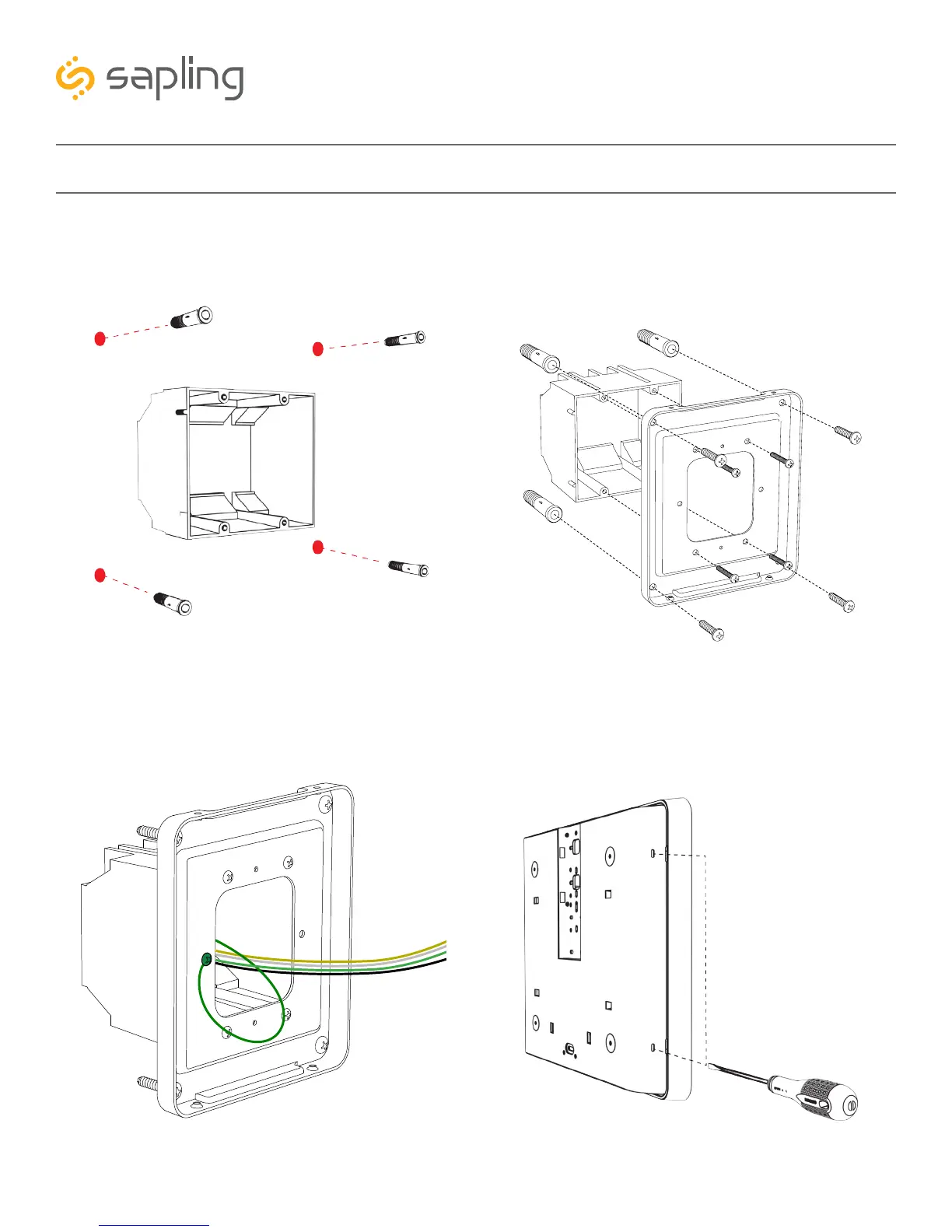

Double Mount Installation - Square Clock
5) Remove the mounting plate and drill the four
holes that were just traced. Insert the four wall
anchors into the holes.
7) Thread any wiring through the mounting plate,
and attach a grounding wire to the mounting plate
using one of the larger centered holes and the
#10-32x3/8 screw.
6) Reattach the mounting plate, this time using all
four long, silver #6-32x1 screws, then insert the four
#8 screws through the mounting plate and into
the anchors.
8) Detach the housing from the back of each clock.
Do this by inserting a flat-blade screwdriver about
1/8 inch into each of the slot holes until the piece
detaches. You may hear a snapping noise as the
latches disengage.
