The purpose of Diagnostic #2 is to test the
Movement gearbox and electrical components of
your clock.

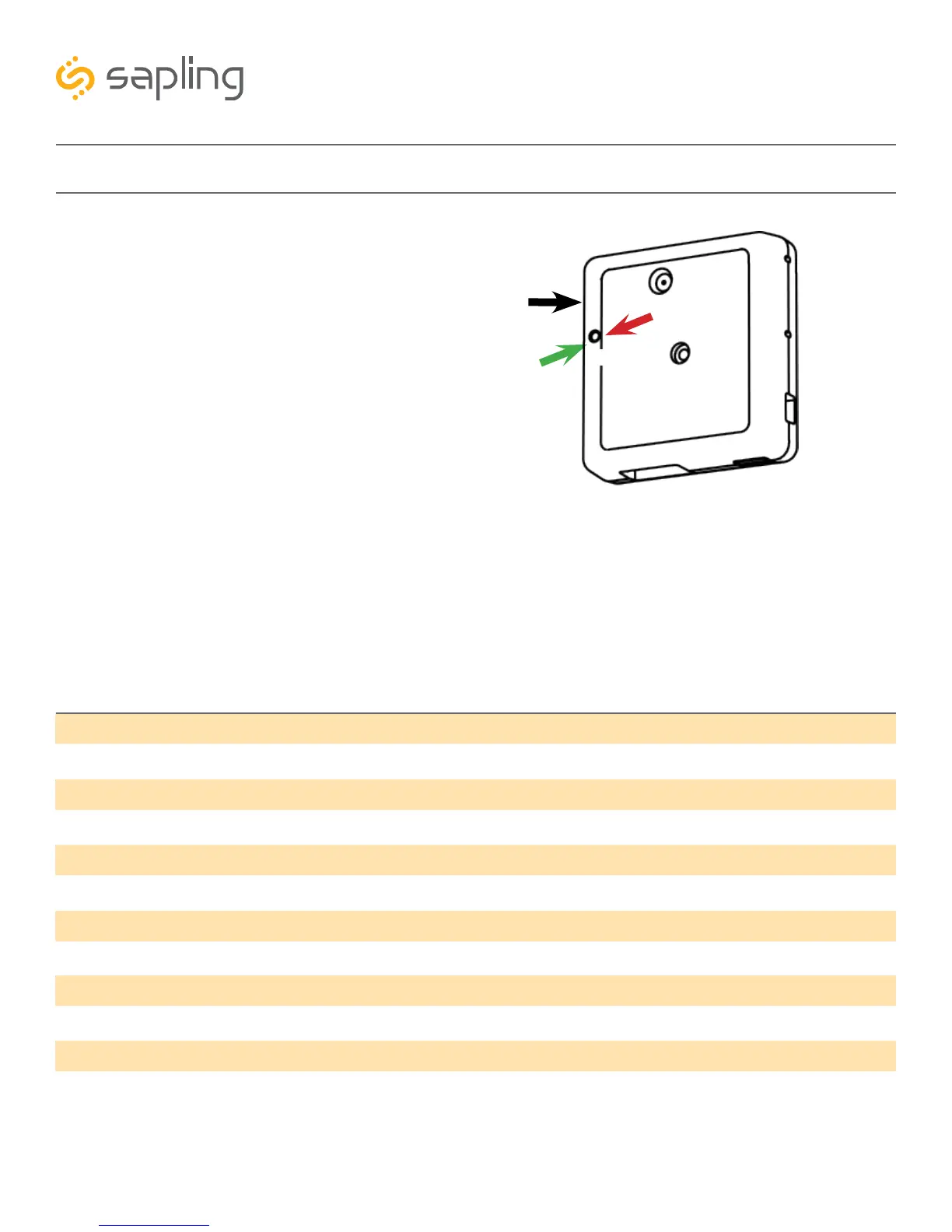

Diagnostic #2 may be enabled by holding down
the diagnostic button for three seconds. If the SAM
clock is performing this diagnostic, then a green
LED on the movement will flash twice every three
seconds. It will continue to flash twice every three
seconds until the diagnostic is complete. The clock
will confirm that the diagnostic is complete when
the LED shines a different color:
If the LED is shining a solid green:
The second hand will display the protocol and polarity that was detected. See the table on the previous
page for details.
The minute hand will display the software version number.
If the LED is flashing red:
The hour hand will display how much time has passed since the clock last received a communication signal:
Diagnostic Test #2 - Comprehensive Test (Metal Only)
The clock hands will remain on these numbers for three minutes, and then the clock will revert to
displaying the accurate time.
Hour Hand Position
12
1
2
3
4
5
6
7
8
9
10
11
Time Since Clock Last Recieved Communication
Clock received communication within the last hour.
Clock received communication between 1 and 2 hours ago.
Clock received communication between 2 and 3 hours ago.
Clock received communication between 3 and 4 hours ago.
Clock received communication between 4 and 5 hours ago.
Clock received communication between 5 and 6 hours ago.
Clock received communication between 6 and 7 hours ago.
Clock received communication between 7 and 8 hours ago.
Clock received communication between 8 and 9 hours ago.
Clock received communication between 9 and 10 hours ago.
Clock received communication between 10 and 11 hours ago.
Clock received communication more than 11 hours ago.
--May signify a manufacturer default.
Button
LED
