SPECIFICATIONS
Power Supply • 95-265v 50-60Hz AC 20VA Max via Fig 8 mains lead.
Controls • Rotary VOLUME control to vary the output level.
• Rotary TONE control to vary the output tone.
• ON/OFF power push button switch.
• AGC, PRIORITY, MIC and LINE functions
Input connections • 2x microphone inputs A/B. 3.5mm mono jack plug.
DC powered for electret microphones.
• 2x Aux In Left/Right line inputs. Phono/RCA sockets.
For direct connection to a TV sound output or other
audio source via SCART or other suitable socket.
Output connections • Push grip connectors for loop cable or loop pad
(Labelled: Loop Cable). Loop will give full output
with loop resistance between 0.5 and 1.5 Ohms.
Headphone output • 3.5mm stereo jack for headphones (Phones) 8-60
Ohms.
Loop output • 2.85A output current @ 100-5kHz. Sufficient to meet
BS EN 60118-4:2006 in a loop not exceeding
6.25m(20ft) in width for most domestic situations
(approx 50m2).
Loop cable • Single turn loop cable. Standard system supplied
with 37m (120ft) 24/0.2 (0.75mm
2
) single core PVC
insulated cable and cable clips. Minimum cable
length 11m = 0.5 Ohms.
Indicators and • Blue Light Emitting Diode (LED) for Power On
indication.
Functions • Red Light Emitting Diode (LED) Loop Level Indicator
Sarabec Ltd declares that the LA215 complies with the relevant EU directives. The full
declaration of conformance for the LA215 is available from Sarabec Ltd.

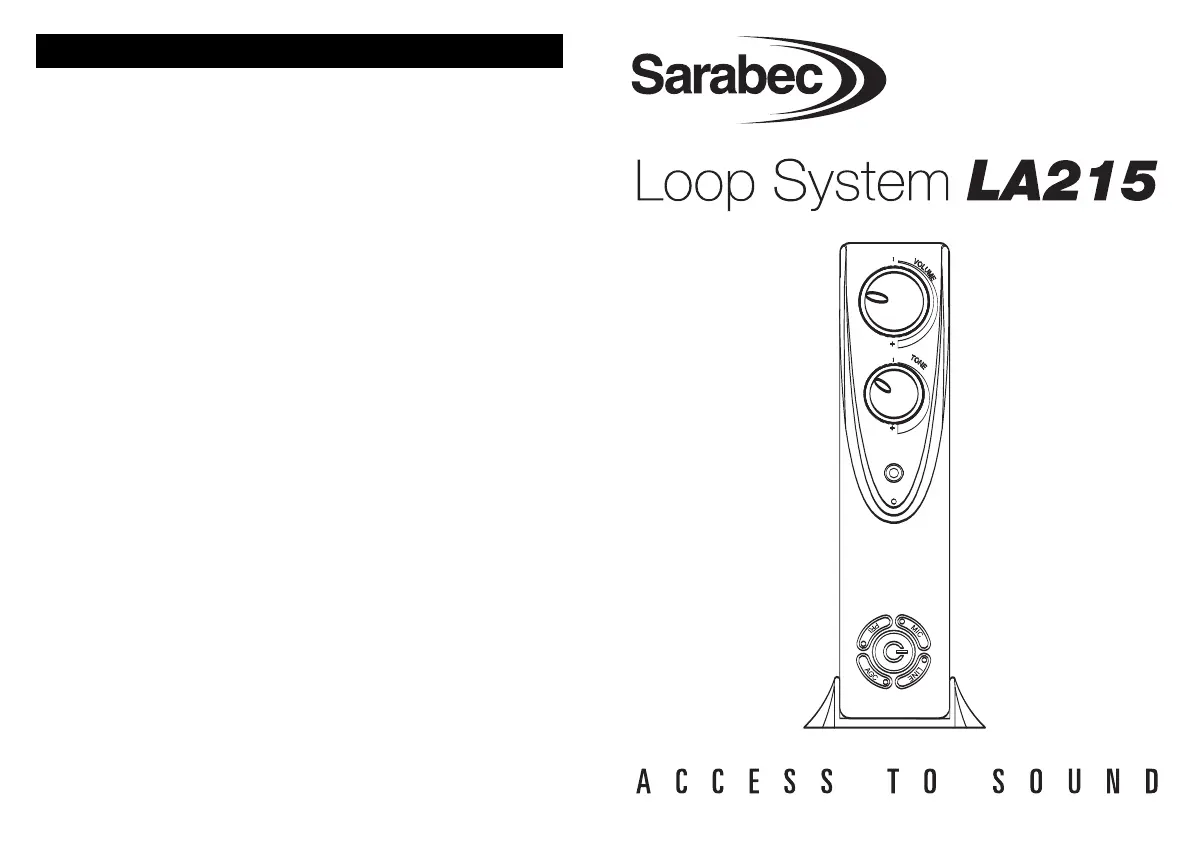

LA215 Instruction book 12/10/07 07:42 Page 1
