PRODUCT OVERVIEW
An enhanced microprocessor controlled loop amplifier with outstanding
sound quality designed to be used with modern audio and video
products to transmit the sound direct to your hearing aid. Your hearing
aid must be switched to the T position to use the loop system. You can
also enjoy the benefits of the loop amplifier by simply plugging a set of
headphones into the headphone socket on the front of the amplifier. For
best results connect the amplifier directly to your TV or other sound
source using the lead kit supplied.

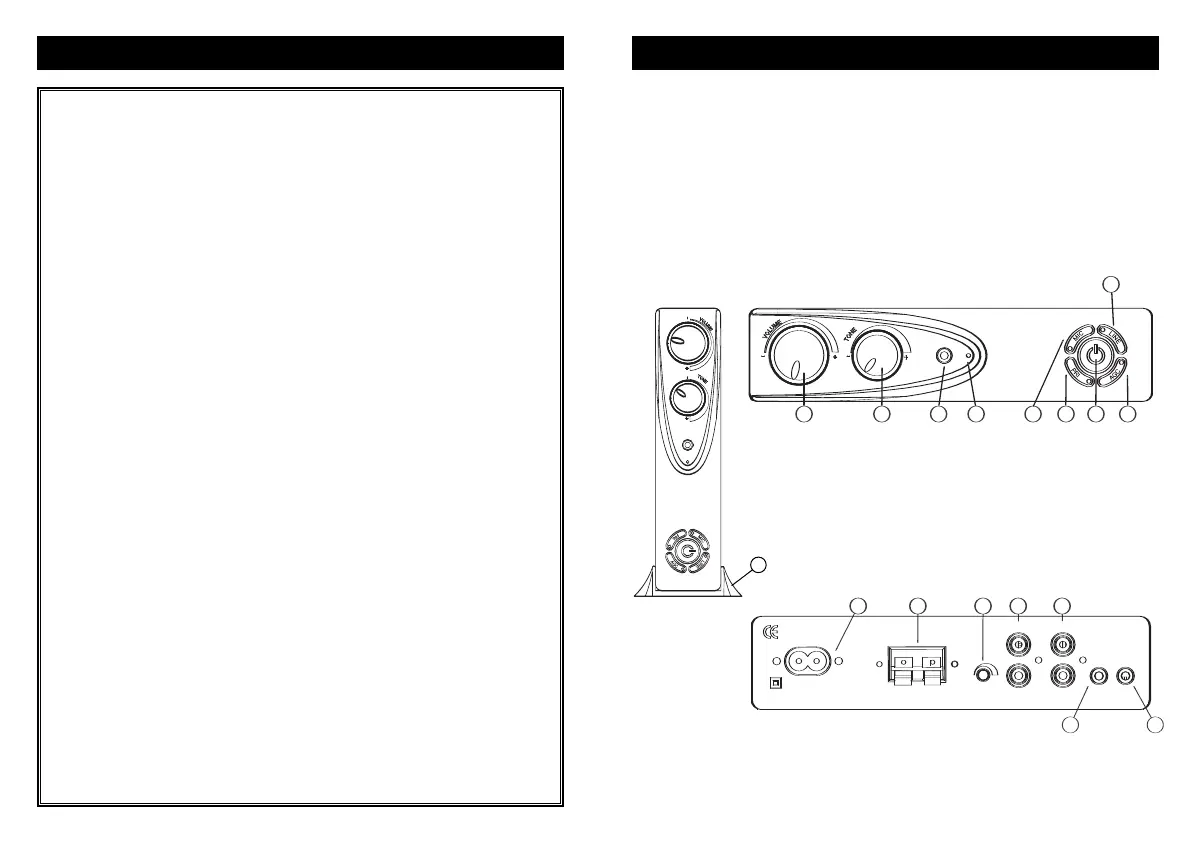

1) Volume Control
2) Tone Control
3) Headphone Output
4) Loop level Indicator
5) Mic sensitivity
6) PRIority
7) Power On/Off
8) AGC
9) Line Input select
The manufacturer cannot be held responsible for damage which is caused by not
using the Loop System in compliance with the safety precautions.
• Do not open casing of Loop Amplifier at any time; NO user serviceable
parts can be found inside.
• Ensure mains power is disconnected BEFORE any connections are made
to the Loop Amplifier.
• Do not expose the Loop Amplifier, cable and accessories to rain or any
other source of moisture.
• Ensure that there is enough room around the Loop Amplifier for ventilation
purposes. Do not cover the ventilation holes of the amplifier with anything.
• Do not place the Loop Amplifier close to sources of heat, such as
radiators.
United Kingdom connection to mains supply
• This apparatus must be protected by a 3amp fuse if a 13amp(BS1363)
plug is used. Be sure to replace the fuse only with an identical approved
type, as originally fitted, and to replace the fuse cover.
•
IMPORTANT: The wires in this mains lead are coloured in accordance
with the following code: - Blue: Neutral, Brown: Live.
• If you need to change the mains plug supplied, the colours of the wires in
the mains lead of this apparatus may not correspond with the coloured
markings identifying the terminals in your plug. Proceed as follows: The
wire which is coloured BLUE must be connected to the terminal marked
with the letter N or coloured BLACK. The wire coloured BROWN must be
connected to the terminal which is marked with the letter L or coloured
RED. DO NOT make any connection to the terminal which is marked with
the letter E or coloured GREEN.
IF IN DOUBT - SEEK EXPERT ADVICE
SAFETY PRECAUTIONS
Sarabec ltd
Middlesbrough UK
95-265V~ 50-60 Hz 20 VA
Loop cable 0.5 - 1.5 Ohms
Line input level Line input Microphone
10 11
12 13 14
15 16
DO NOT OPEN
No user serviceable parts inside
BA
BA
10) Mains socket
11) Loop Cable
Connectors
12) Line Level control
13) Line Input B
14) Line Input A
15) Mic Input B
16) Mic Input A
17) Amplifier Stand
17
