Loop Cable
• Run the loop cable around the room starting
and ending at the amplifier, figure (A). The
cable may be tucked under the edge of the
carpet, or fixed to either a picture / dado rail,
or skirting board with the clips provided.
Where the cable passes a door or other
obstacle, either fix the cable around the frame
or tuck under the carpet. The cable only has to
go round the area to be looped, it does not
matter about going up and over doors/windows
or round fireplaces etc.
• Connect both ends of the loop cable to the loop
cable connectors, one wire in each connector.
Excess loop wire may be cut off, provided a MINIMUM of 11metres (35feet)
is left connected to the amplifier.
Loop Pad
• Place the loop pad in a suitable position on the chair to be used for
listening, either on the chair back or under the seating area. Lay the
connecting lead from the Pad to the back of the Amplifier. Make
sure that the connecting lead is kept out of the way to prevent injury
or obstruction.
• Attach the connecting lead to the loop cable connectors, one wire in
each connector.
Connect to TV or other sound source
For best results connect your loop amplifier with the direct
connection lead kit.
Connect Loop Cable or Loop Pad to the amplifier

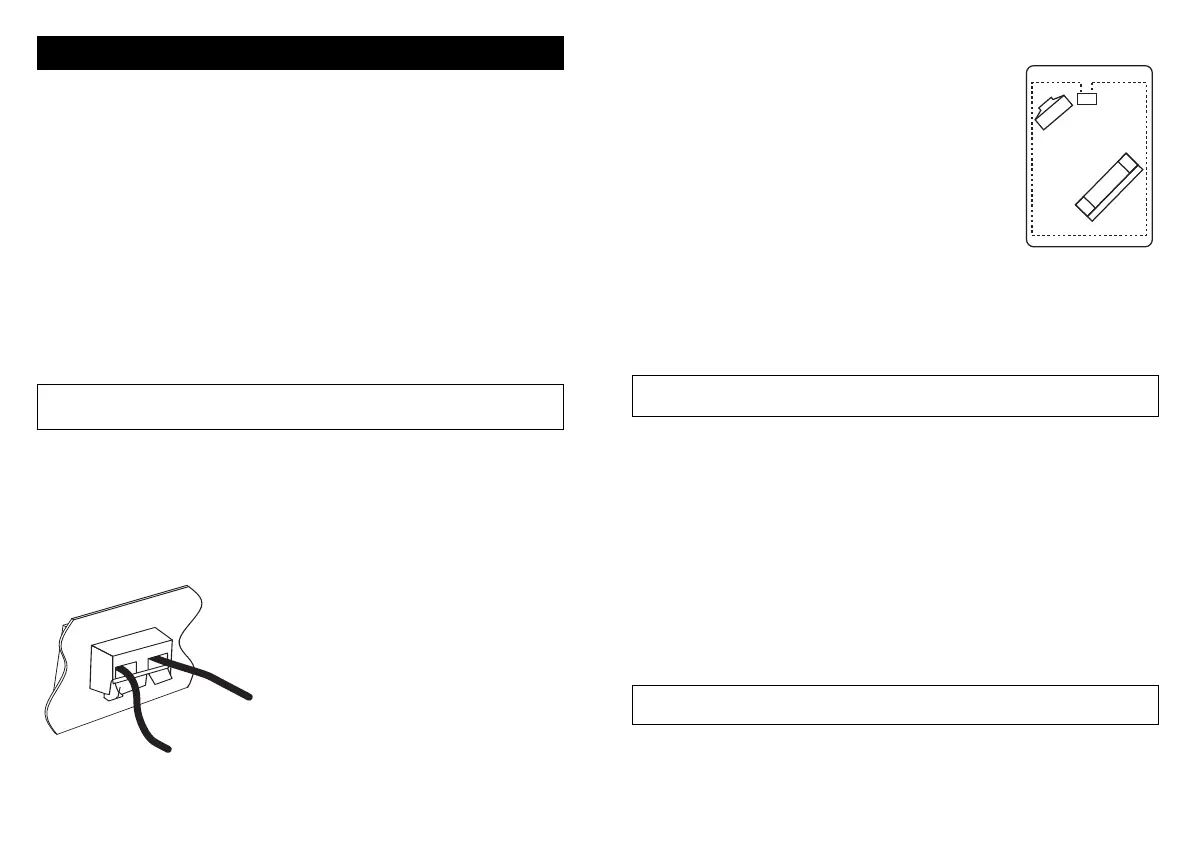

When the loop cable connector buttons are pushed in a hole will appear.
Push the bare wire into the hole. Ensure that only the bare wire and not
the plastic insulation goes in, then release the button. Figure (B).
A loop system is supplied ready for use with the following items
• Loop Amplifier with stand.
• Mains lead with fitted plug.
• 1 Microphone with Velcro™ pads
• Direct connection lead kit : 1.2m phono – phono lead, SCART to
phono adaptor and 3.5mm stereo jack to phono adaptor
• 37m(120ft) Loop Cable and pack of 50 cable clips OR Loop Pad with
5m (15ft) connecting cable
• Guarantee Card
• Operating Instructions
Place the amplifier in a convenient well ventilated area near to the TV or
other audio source.
SETTING UP
IMPORTANT
Always disconnect from mains supply before making any connections
