Saris Glide EX - Installation Guide; Step 1: Install Receiver Tube

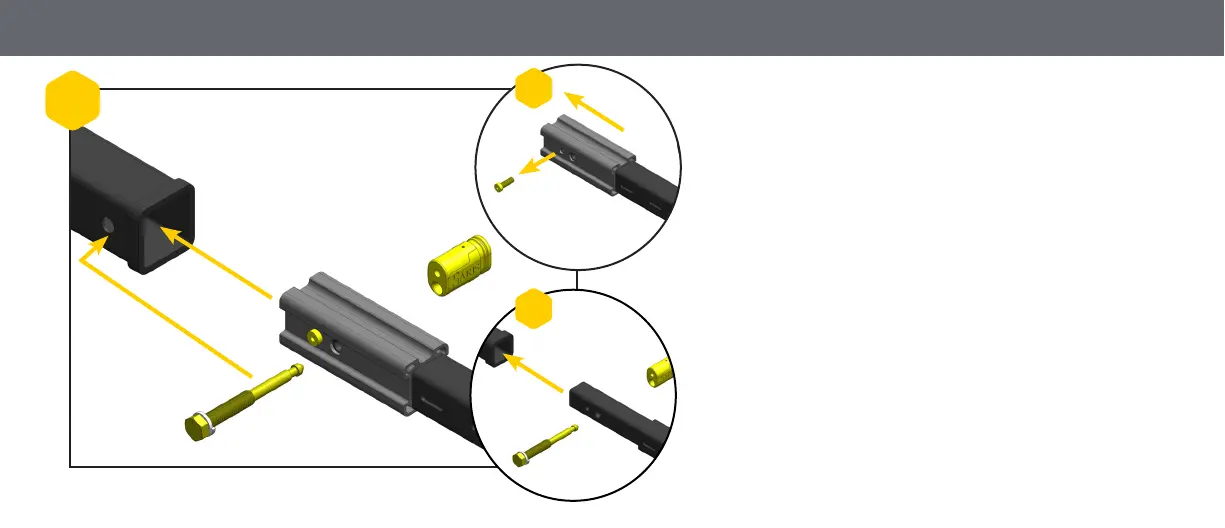

Install receiver tube into hitch. Hitch pin should enter in on the
driver’s side. Tighten hitch pin with wrench. Secure with lock.
Note: If your receiver is 1.25” remove the adapter block as shown
(A/B). Tools Required: 3/4’’ Wrench, 5mm Hex Key (to remove
adapter block). 2’’ adapter on 5-bike model is not removable.
1
INSTALL RACK
EN
6
2”
1.25”
1.25”
A
B
26676C Glide EX Manual.indd 6 10/12/2018 11:10:31 AM
