Sartorius Entris II - Cabling Diagram

6

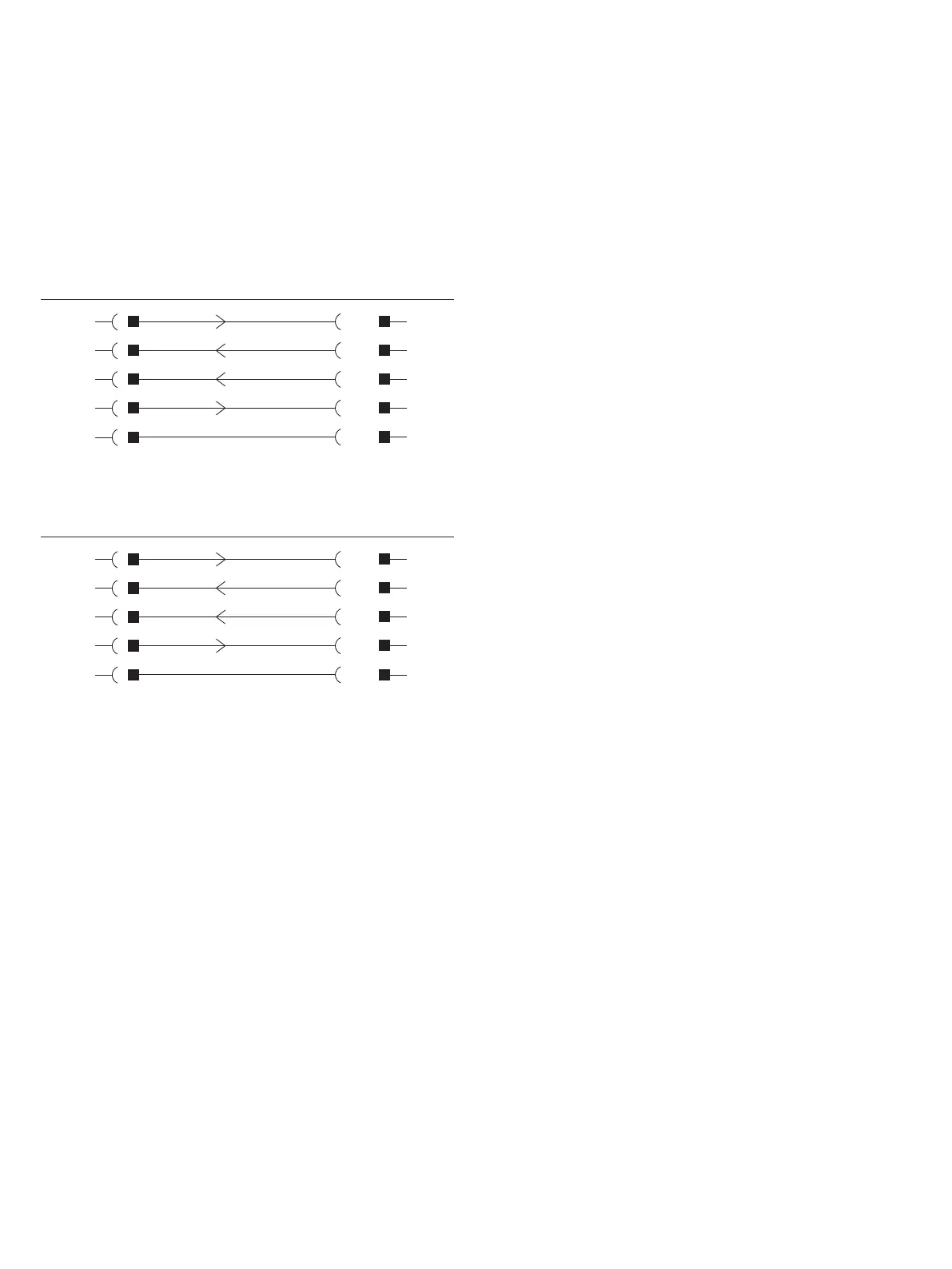

Cabling Diagram
For connecting a computer or other peripheral device to
the balance using the standard DCE protocol and cable
lengths of up to 15 m (approx. 50 ft).
Important: do not connect any other pins to the cable
connector of the balance.
Cable type: AWG 24 specification
W
aage Computer
9-pol.
25-pol.
Stecker
Buchse
T
xD 2 3
RxD 3
2
CTS 7
4
R
TS 8 5
GND 5
7
Waage Computer
9-pol.
9-pol.
Stecker
Buchse
T
xD 2 2
RxD 3
3
CTS 7
7
R
TS 8 8
GND 5
5
Balance
9-pin
male connector
Computer
9-pin
female connector
Balance
9-pin
male connector
Computer
25-pin
female connector
