PR 5210 Operating Manual PR 5210 Transmitter Series
Sartorius 13
2.5.1.3 Connection of PR 6221 load cells
Please refer to the instruction manual PR 6021/08, -/68.

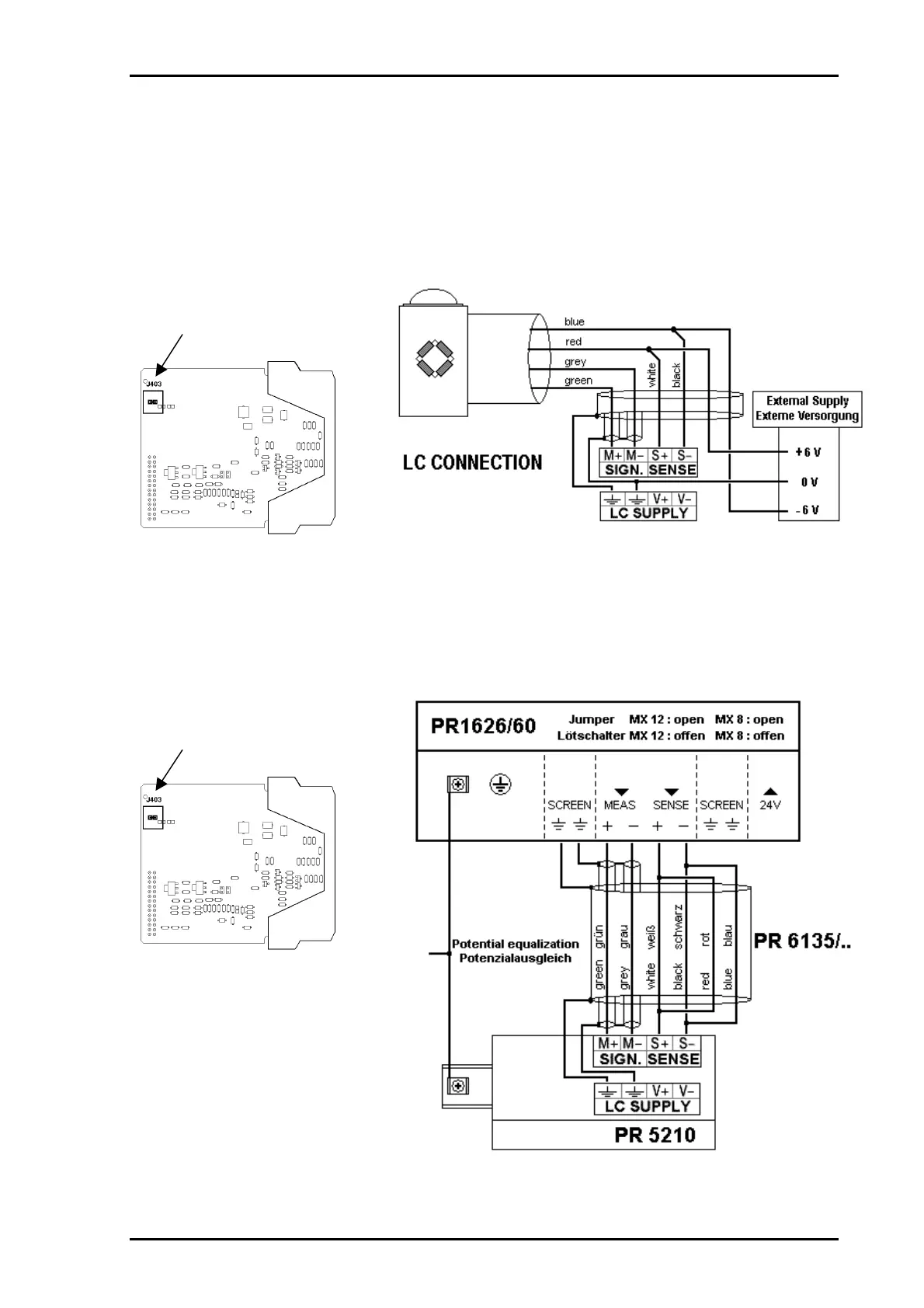

2.5.1.4 External load cell supply
If an external load cell supply is used, the solder jumper J403 on the power supply board has to be
closed. (Factory setting: closed.) The common line of the symmetrical external supply has to be
connected to the same terminal at PR 5210 as the screen of the load cell / extension cable.
For connection of external
supply the solder jumper
J403 has to be closed
Specification external supply: 6 VDC + 5 %, - 30 %; ripple max. 50 mVpp; asymmetry max. +/- 3%.
2.5.1.5 Connection via PR 1626/60
If the PR 1626/60 is used, the solder jumper J403 on the power supply board has to be closed. (Factory
setting: closed.) The connection to the PR 1626/60 has to be done as follows, for general connections
please refer to the PR 1626/60 manual.
For connection via
PR 1626/60 the solder jumper
J403 has to be closed
If the PR 16126/ 60 has to be
used with MX 8 : closed,
please contact
Sartorius Hamburg technical
support for further INFO!
