8 AOD-210 SATEL
4.2 Ball bracket mounting

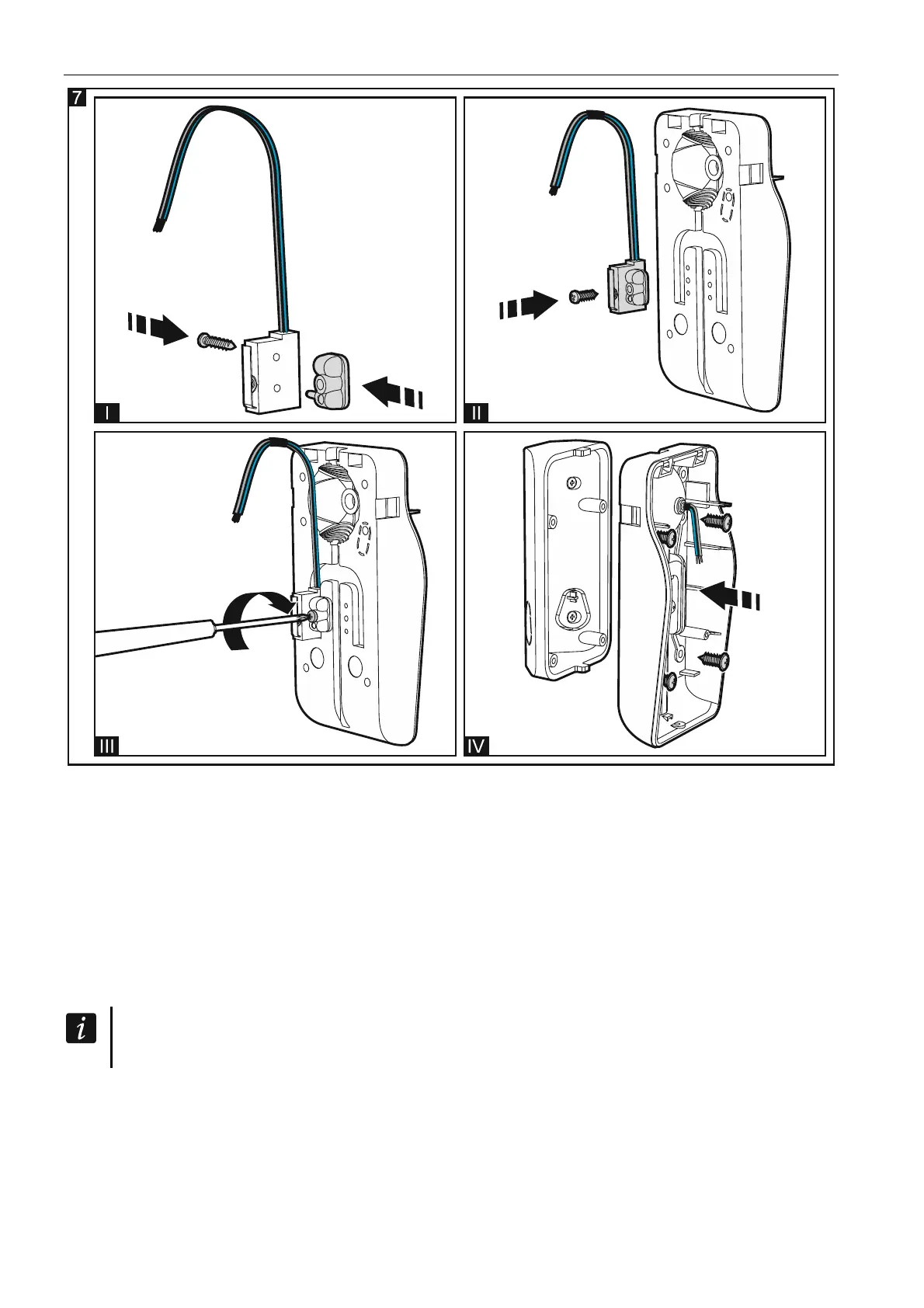

1. Attach extra tamper switch:
– screw the holder to the tamper switch (Fig. 8-I),
– put the unit making the surface bigger on the tamper switch (Fig. 8-II),
– screw the tamper unit to the ball bracket (Fig. 8-IV).
2. Run the cable through the opening in the handle of the bracket.
3. Using wall plugs and screws, fasten the ball bracket to the wall (Fig. 8-V).
4. Run the tamper switch wires through the hole made in the enclosure base.
It is recommended that the tamper switch wires be placed in a heat shrink tubing. This
will reduce the risk of water penetration into the enclosure.
5. Using screws, fasten the enclosure base to the ball bracket (Fig. 8-VII).
