SATEL AOD-210 3

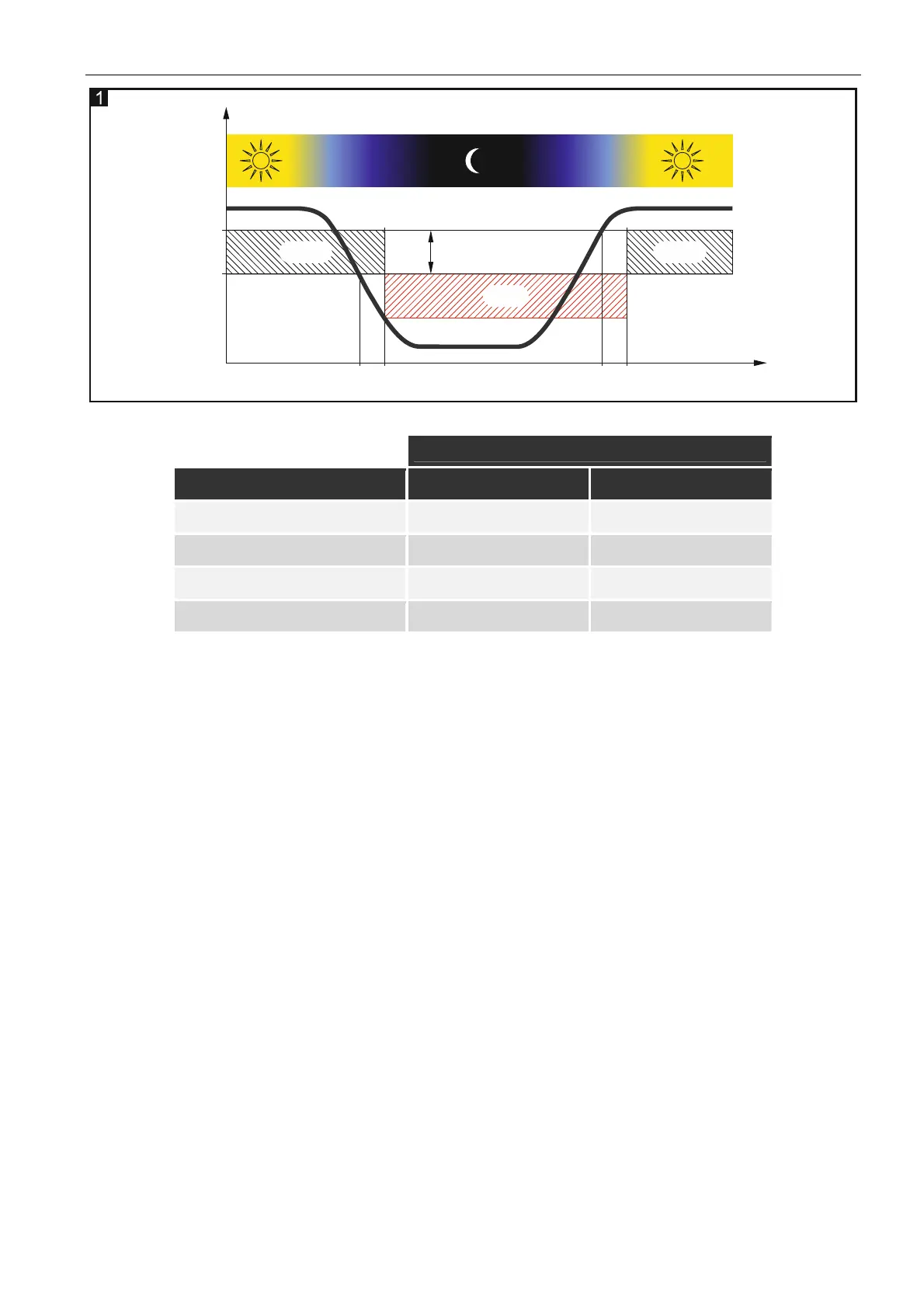

OFF OFF
ON
lx
TT
P
ON
P OFF
t
H
Light intensity
Detection threshold Turning on [P
ON
] Turning off [P
OFF
]
1 5 lx 10 lx
2 10 lx 20 lx
3 30 lx 50 lx
4 40 lx 70 lx
Table 1
Test mode
The test mode makes the detector testing easier, because the LED indicators are enabled
and the dusk sensor reacts quicker to changes in the light intensity. How to start and end the
test mode is described in the ABAX 2 / ABAX controller manual / the INTEGRA 128-WRL
control panel manual.
LEDs
The LEDs are flashing for about 40 seconds from inserting the battery, thus signaling the
warm-up of the detector. The LEDs also work in the test mode, in which they indicates:
 periodical communication – short flash of the red LED (80 milliseconds).
 motion detection by the microwave sensor – the green LED is ON for 4 seconds.
 motion detection by the PIR sensor – the yellow LED is ON for 4 seconds.
 alarm – the red LED is ON for 2 seconds.
Supervision of motion detection system
When the motion detection system starts malfunctioning, the detector will report an alarm
during periodical communication. The alarm will keep going until the fault is cleared (long
violation).
Battery status control
When the battery voltage is below 2.75 V, information about low battery is sent during each
transmission.
