LEDs
The LEDs are flashing for about 35 seconds from inserting the battery, thus signaling the
warm-up of the detector. The LEDs also work in the test mode, in which they indicates:
 periodical communication – short flash (80 milliseconds),
 alarm – ON for 2 seconds.
Supervision of motion detection system
When the motion detection system starts malfunctioning, the detector will report an alarm
during periodical communication. The alarm will keep going until the fault is cleared (long
violation).
Battery status control
When the battery voltage is below 2.75 V, information about low battery is sent during each
transmission.
In response to the battery voltage drop below 2.75 V, sensitivity of the IR sensor in the
detector is automatically lowered to eliminate false alarms.

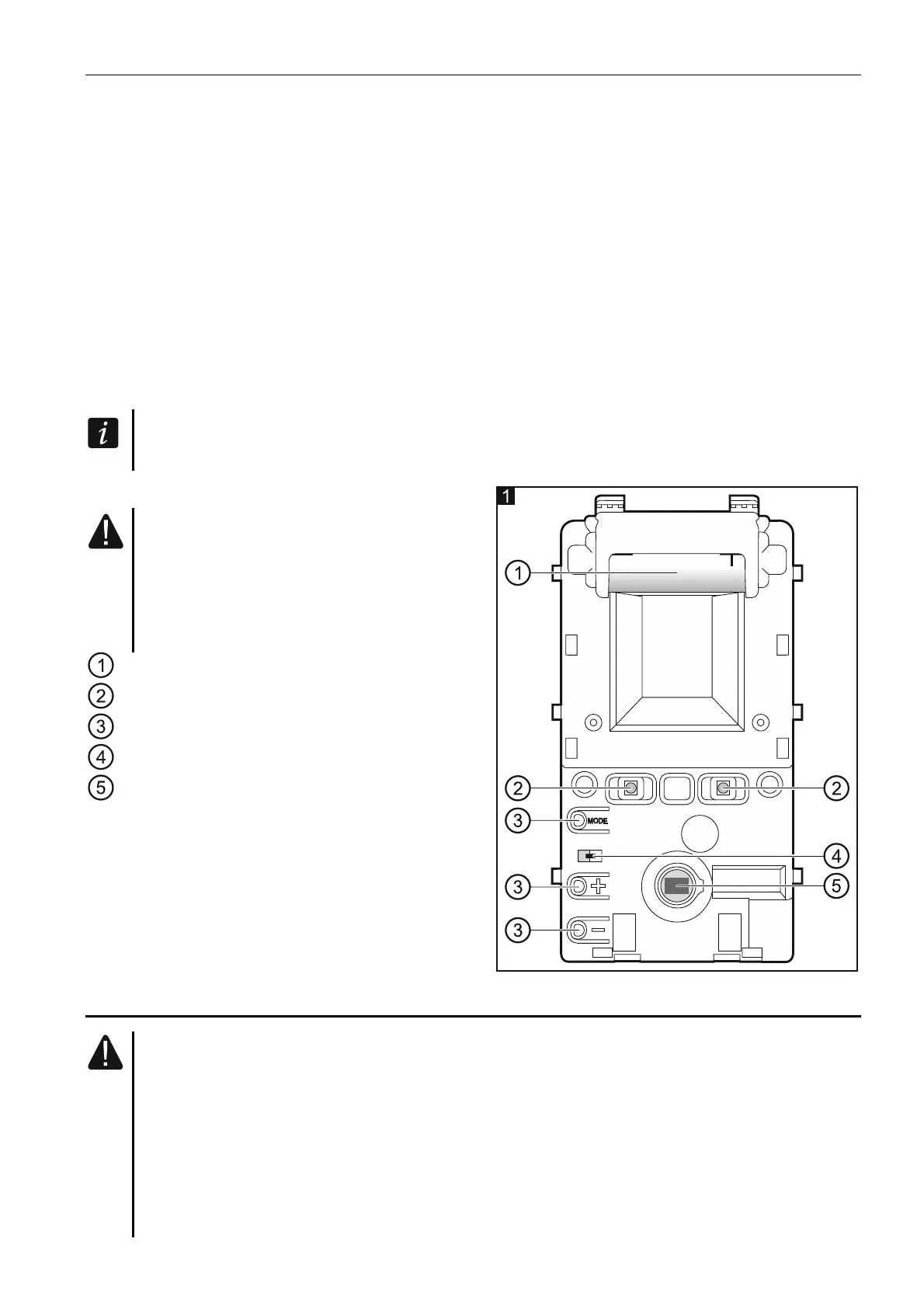

Electronics module
Do not remove the plastic cover from
the circuit board to prevent damage to
the components located on the board.
Do not touch the pyroelectric sensor,
so as not to soil it.
CR123A lithium battery.
LED indicator.
element not used.
tamper switch activated by cover removal.
PIR sensor (dual element pyrosensor).
On the other side of the electronics module is
a tamper switch activated by removing the
detector from the wall.
4 Installation
There is a danger of battery explosion when using a different battery than
recommended by the manufacturer, or handling the battery improperly.
Be particularly careful during installation and replacement of the battery. The
manufacturer is not liable for the consequences of incorrect installation of the
battery.
The used batteries must not be discarded, but should be disposed of in
accordance with the existing rules for environment protection.
