12
System description and installation
CA-64 SATEL
When the “Monitor for Station 1 or 2” mode is on, the control panel dials in the
following sequence: station 1 basic number, station 1 backup number, station 2 basic
number, station 2 backup number, station 1 basic number and so on, until the
number of trials determined for each station is reached. After the programmed
number of trials is completed, the control panel hangs monitoring either until a next
event occurs or for the time defined by the service (the control panel starts the next
series of trials to transmit the message after that time elapses).
NOTE:
8 is the typical value for parameter “Repetitions”, and typical value for the
parameter “Hanging period” = 30 (occurrence of a new event causes all not
transmitted events to be sent now).

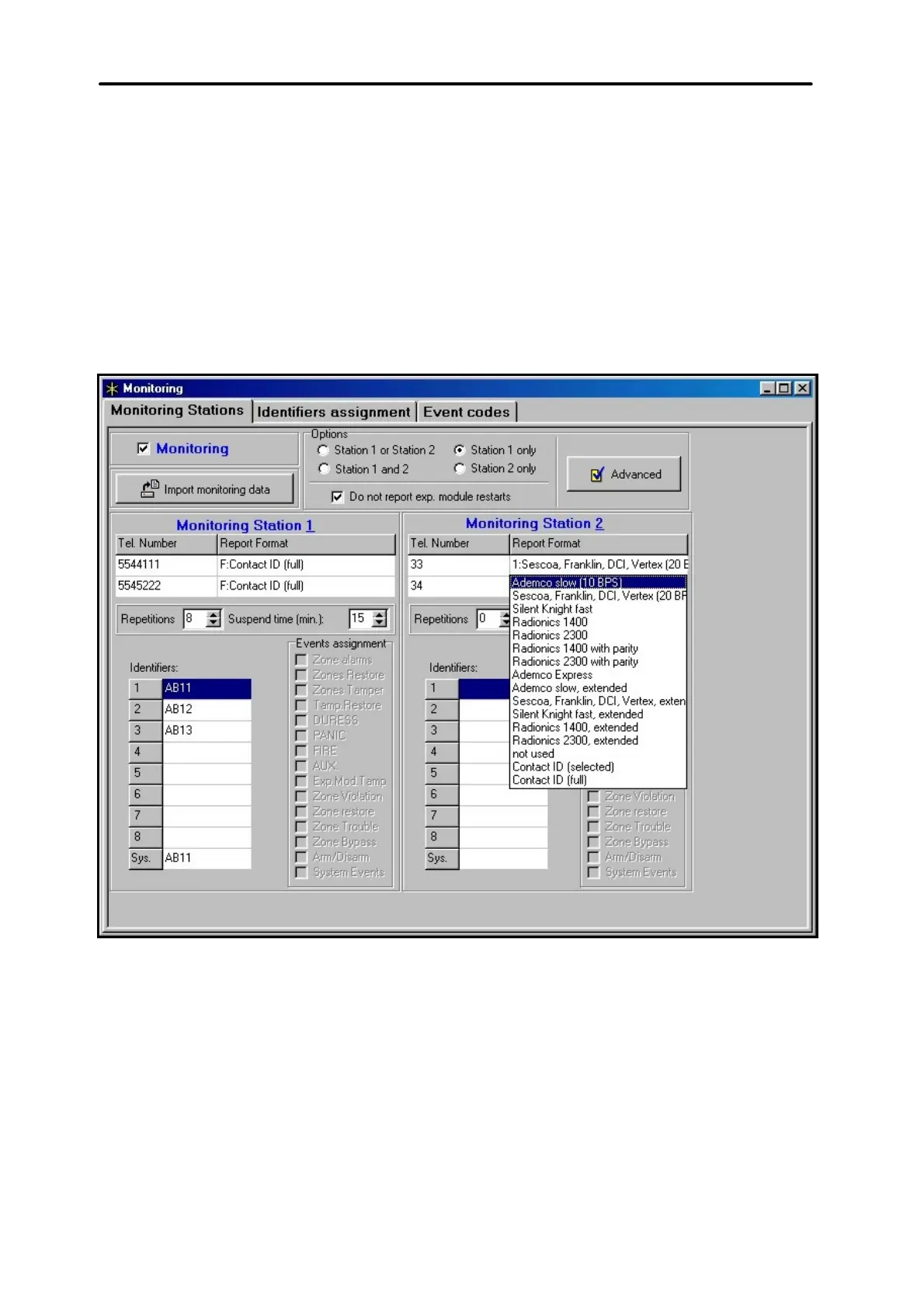

Fig. 5. Window for format selection and definition of identifiers.
Events in the system are divided into eight classes:
1) alarms from zones and tampers,
2) alarms occurring in partitions (e.g. PANIC, fire alarm from the LCD keypad),
3) arming and disarming,
4) zone bypass,
5) access control,
6) system failures,
7) functions used,
8) other events in the system (e.g. start of the service mode).
Event of 5 and 7 classes are not monitored. Other events are transmitted depending
on transmission format selected.
