FUNCTIONAL DESCRIPTION
13

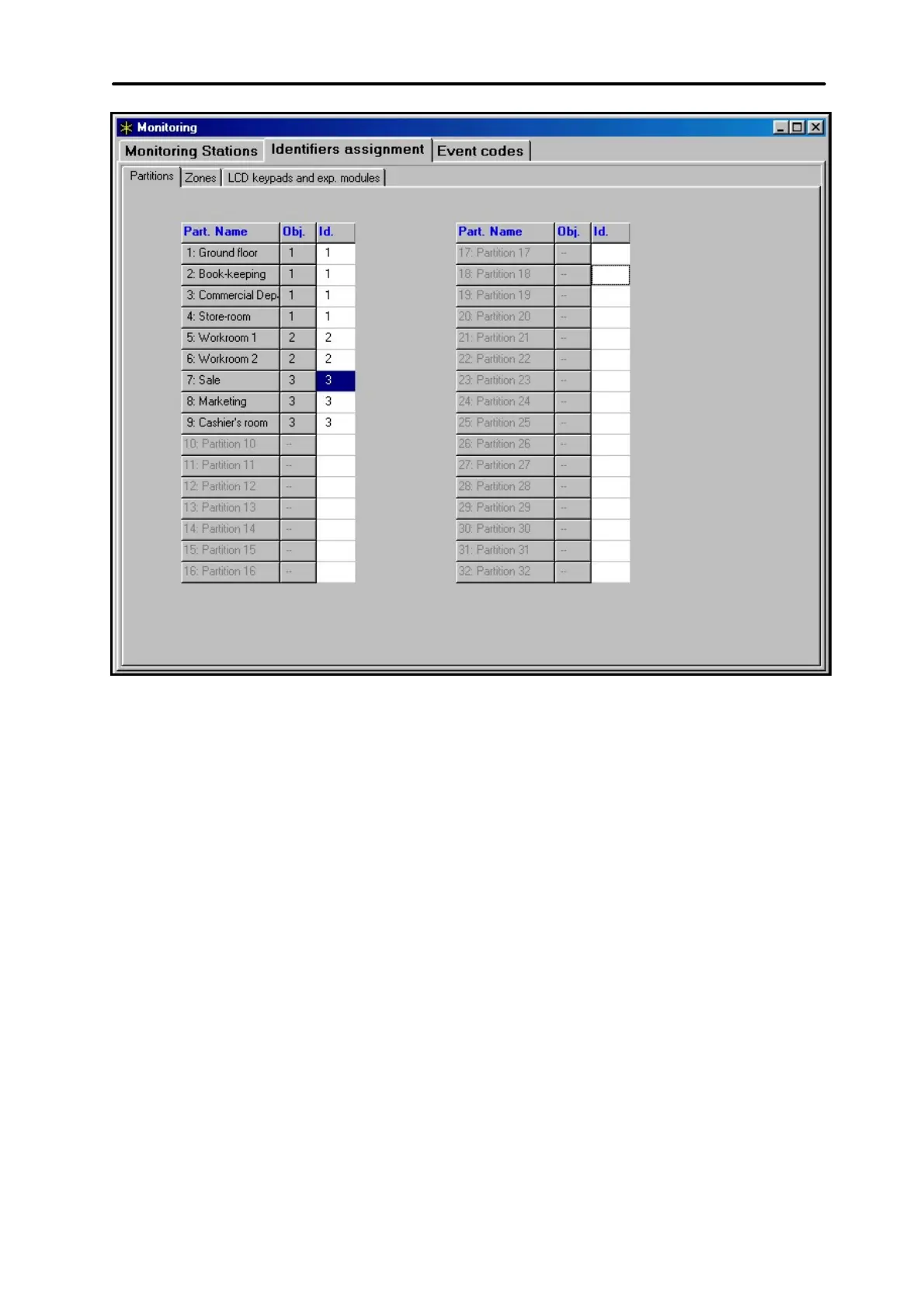

Fig. 6. Widow for assigning partition events to identifiers.
• For pulse formats and Ademco Express it is necessary to program event codes.
Only those events are transmitted, which are assigned to a valid identifier (e.i.
those, which have at least three characters different from “0”) and which code is
different from “00”.
• When format “E: Ademco Contact ID (selected codes)” is selected, those events
are transmitted, which have been transmitted in pulse formats and it has no
meaning which code is programmed, since the control panel transmits codes
according to the format specification.
• When format “F: Ademco Contact ID (all codes)” is selected, there is no need to
program any event codes and assign events to identifiers. The control panel
transmits codes according to the format specification and the defined division into
subsystems.
NOTES:
• When format „E: Ademco Contact ID (selected codes)” is selected, the control
panel may transmit such events only, for which there is a possibility to be
transmitted in pulse formats. Not all possible events have their equivalents in
pulse formats. Programming of codes for all possible events in the system would
require to reserve tens identifiers for the control panel.
• For E and F (Ademco Contact ID ...) formats, each subsystem has its own
identifier. Therefore, the identifiers of non-existing subsystems have not to be
programmed. In the system event identifier field (events of class 6 and 8), repeat
