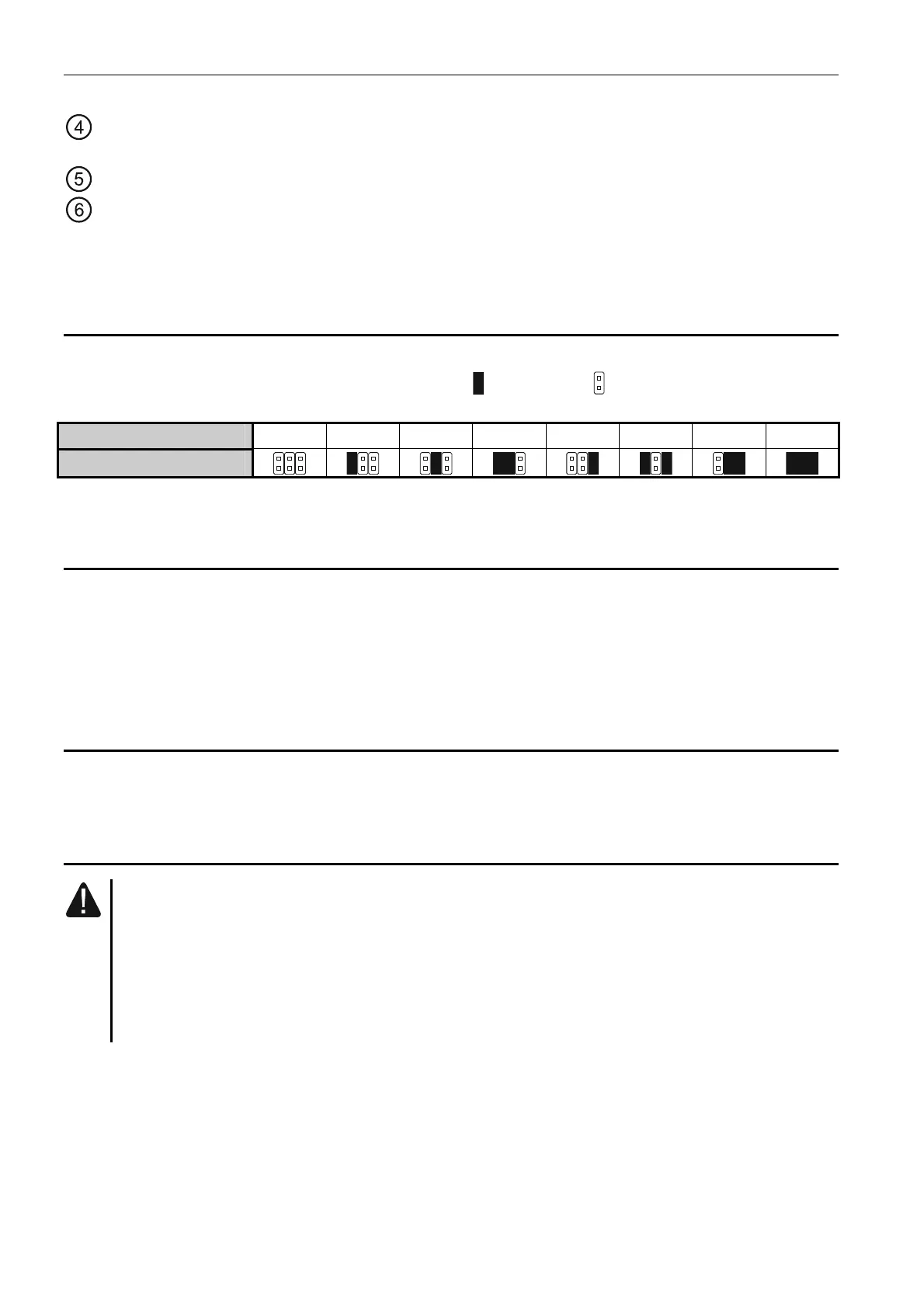

Page #2 background imageLoading...
Page #2 background image
2 SATEL
blinking – control panel being programmed or operated by means of the module.
BUS LED – blinking LED indicates that data exchange with the control panel is in
progress.
pins for setting the module address (see “Setting address”).
RJ-45 connector for Ethernet network. It is provided with two LEDs:
green – indicates connection to the network and data transmission,
yellow – indicates negotiated transmission rate (ON: 100 Mb; OFF: 10 Mb).
2. Setting address
To set an address, you must place jumpers across the ADDRESS pins. Table 1 shows how
to use jumpers in order to set a specific address (
- jumper on; - jumper off).
Address
0 1 2 3 4 5 6 7
Pins status
Table 1.
2.1 Module connected to INTEGRA / INTEGRA Plus control panel
Set an address in the module within the range:
from 0 to 3, if it is connected to INTEGRA 24 or INTEGRA 32 control panel,
from 0 to 7, if it is connected to another INTEGRA or INTEGRA Plus control panel.
The address set must be different from that in the other devices connected to the keypad bus
of the control panel (the control panel does not support devices with the same address).
2.2 Module connected to VERSA control panel
Set address 4 in the module. No keypad with the address 4 may be connected to the control
panel.
3. Installation
The alarm system should be installed by qualified personnel.
Disconnect power before making any electrical connections.
The device is designed to be used only in the local area networks (LAN). It must
not be connected directly to the public computer network (MAN, WAN). For
establishing connection with public networks, use a router or xDSL modem.
The device is designed for installation indoors, in spaces with normal air humidity.
1. Secure the module electronics board in the enclosure. The module should be installed in
the same enclosure as the control panel. This will facilitate connecting the RS-232 ports
of control panel and module, which is required, if the control panel is to be configured via
Ethernet using the DLOADX program.
2. Set the module address (see “Setting address”).
3. Connect the +12V, COM, DTM and CKM module terminals to the control panel terminals
(Fig. 2). It is recommended that an unshielded non-twisted cable be used for making the

Other manuals for Satel ETHM-1 Plus

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Satel ETHM-1 Plus and is the answer not in the manual?

Satel ETHM-1 Plus Specifications

Power IconPower
supply voltage12 V DC ±15%
standby current consumption70 mA
maximum current consumption80 mA
Operating Environment IconOperating Environment
environmental classII
operating temperature range-10 to +55 °C
maximum humidity93±3%
Weight and Dimensions IconWeight and Dimensions
dimensions68 x 140 mm
weight64 g
