Satel ETHM-1 Plus Quick Installation Guide

4 SATEL

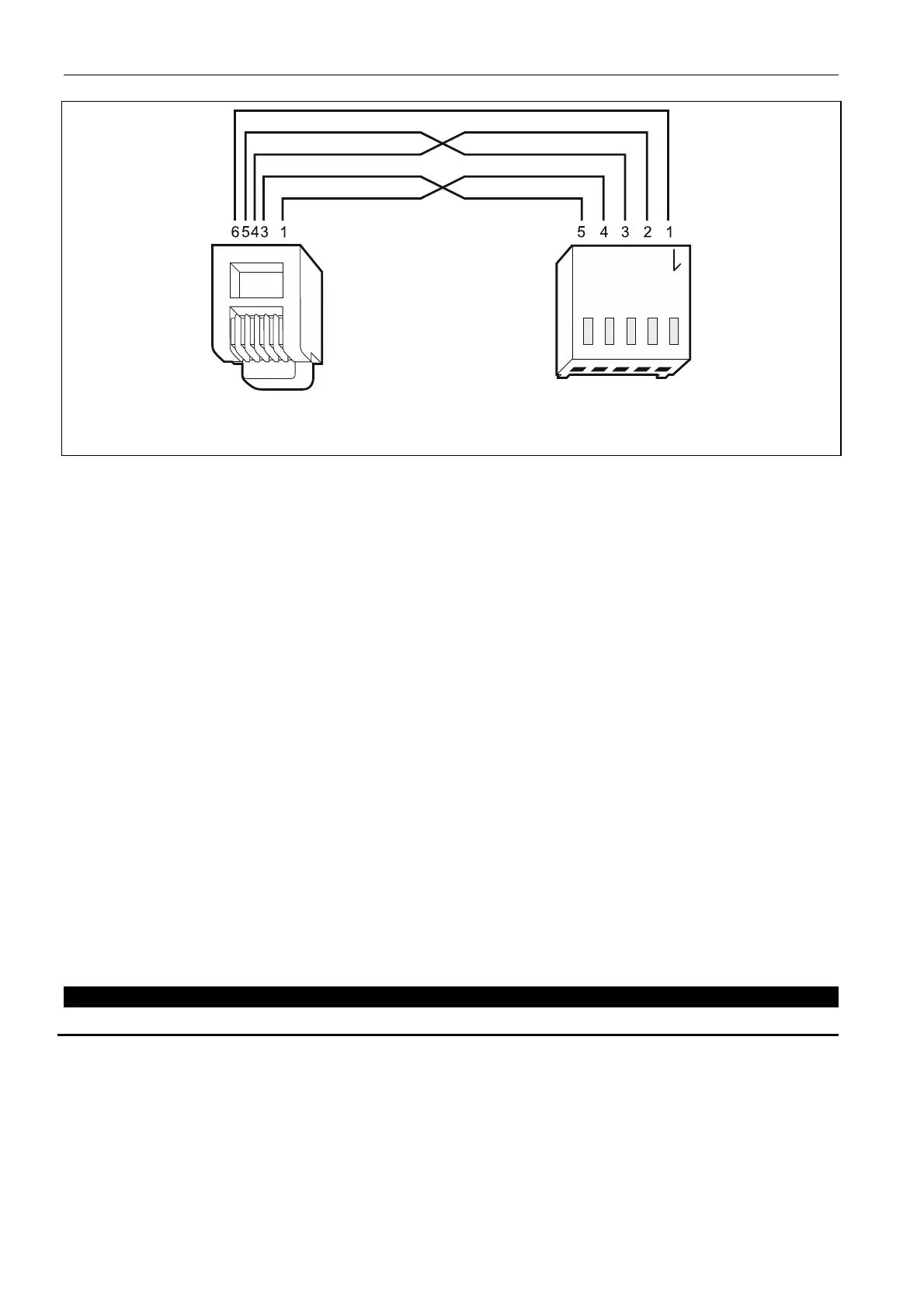

Fig. 4. Wiring diagram of the cable connecting RS-232 ports of ETHM-1 Plus module and
INTEGRA / INTEGRA Plus control panel with RJ type connector socket.
The declaration of conformity may be consulted at www.satel.eu/ce
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Satel ETHM-1 Plus Specifications

Power

supply voltage	12 V DC ±15%
standby current consumption	70 mA
maximum current consumption	80 mA

Operating Environment

environmental class	II
operating temperature range	-10 to +55 °C
maximum humidity	93±3%

Weight and Dimensions

dimensions	68 x 140 mm
weight	64 g
