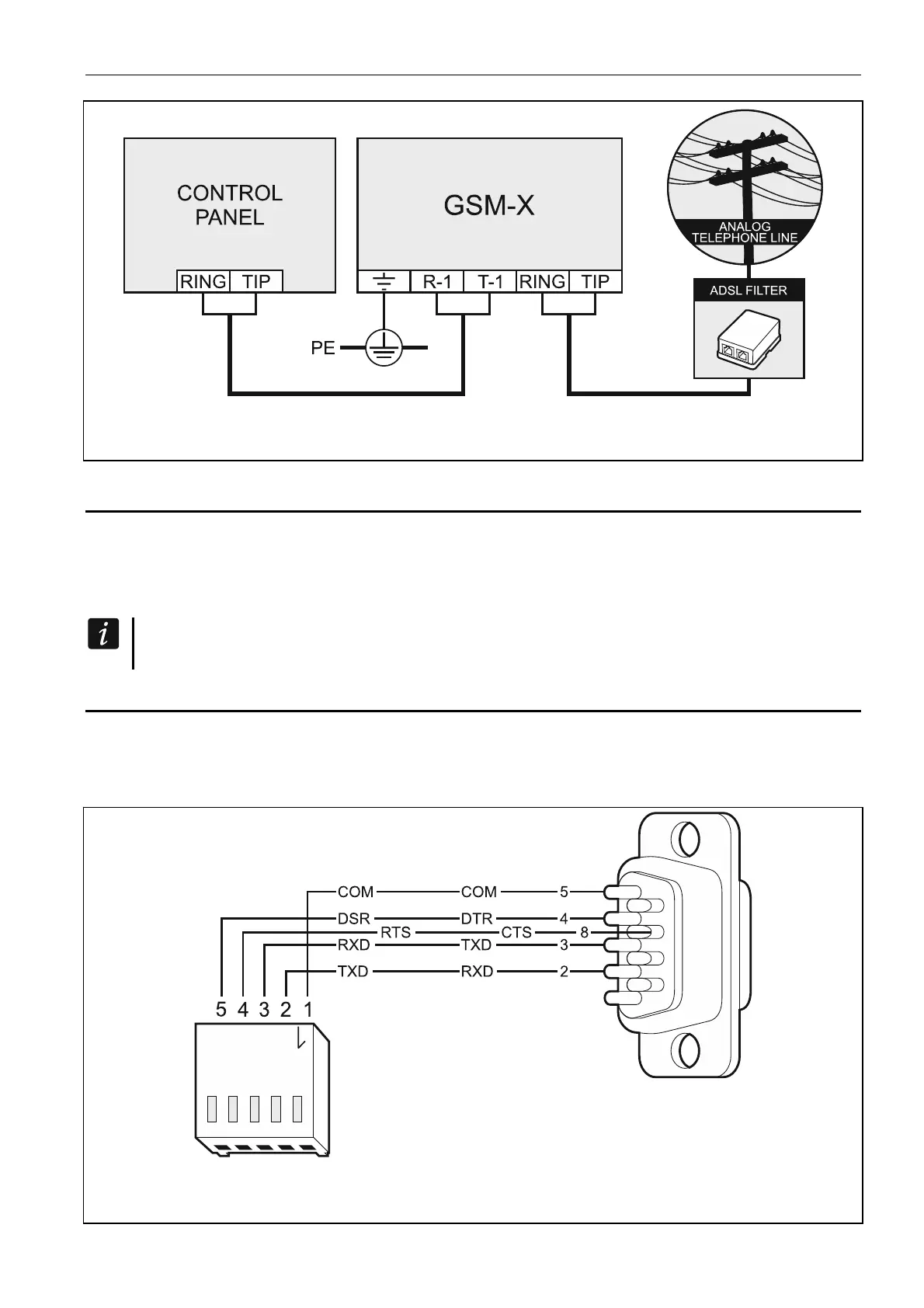

Fig. 5. An example of module connection to ADSL filter (control panel connected to the
module).
1.4 Connecting the devices to the inputs and outputs
1. Connect the devices whose operation is to be monitored by the module to the input
terminals.
2. Connect the devices which are to be controlled by the module to the terminals of OC type
outputs.
The sum of currents drawn by devices powered from the AUX output must not exceed
300 mA.
1.5 Connecting the RS-232 port
If the module is to work in conjunction with the INTEGRA / INTEGRA Plus control panel,
connect together the RS-232 ports on module and control panel. To connect the module
PIN5 connector to the control panel RJ connector, use the RJ/PIN5 cable offered by SATEL.
Fig. 6. Connecting the RS-232 ports on module and computer. Shown on the left is PIN-5
plug. Shown on the right is DB-9 female connector (solder side view).
