L8 Lightbar Installation Guide 875-3006-000 Rev A1
4

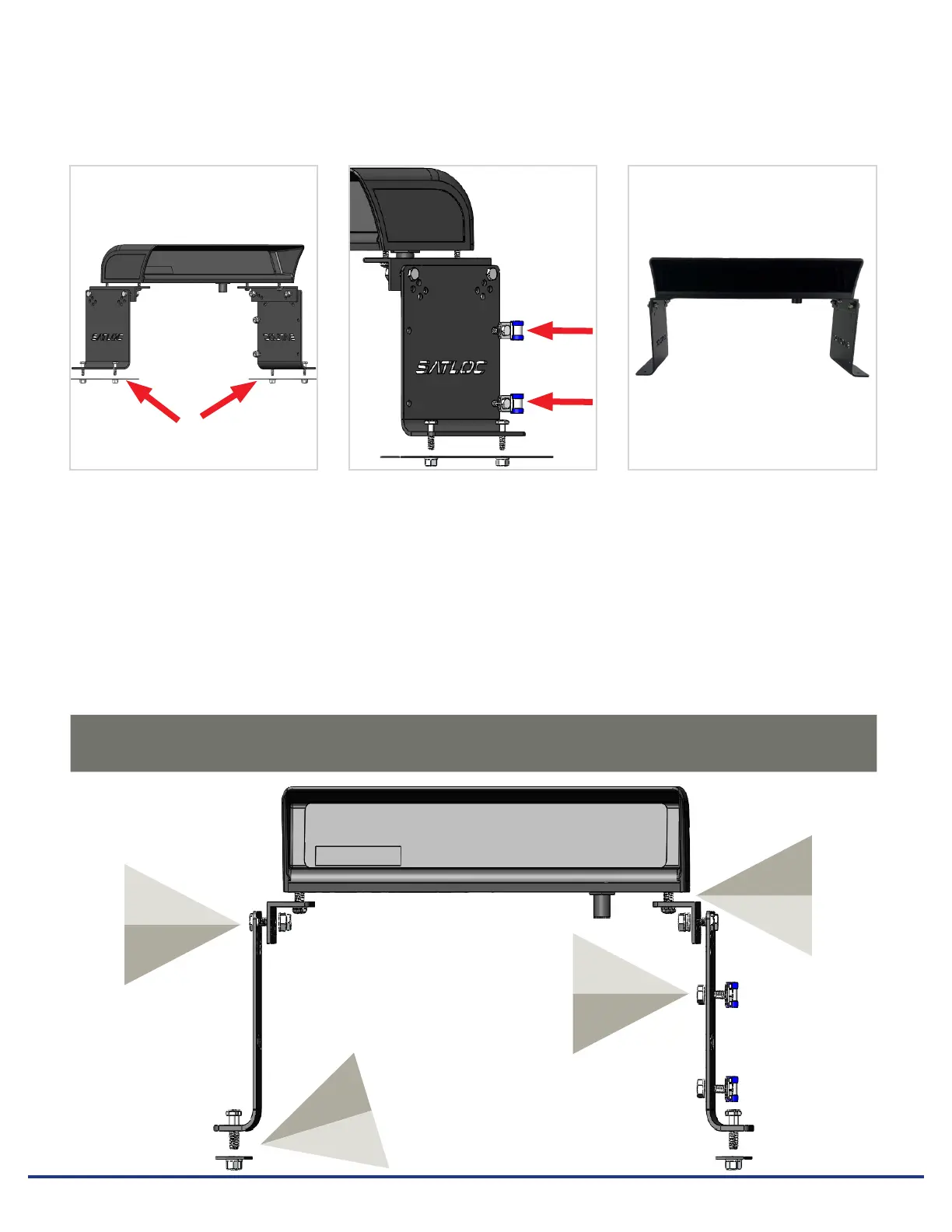

Exploded View
Step Four
Secure Lightbar to Aircraft
Step Five
Attach Cable
to Lightbar
Step Six
Tighten Hardware
Using hardware F, secure
the lightbar to the aircraft.
If required, use the backing
plates on the underside of the
mounting surface for additional
reinforcement (these provide
additional support to prevent the
bolts from pulling through the
surface under vibration).
When finished, tighten all
hardware.
Connect cable to the bottom of
the lightbar. Using hardware G,
attach the cable to the lightbar.
Be careful not to make any sharp
turns or bends.
Note: There are two size options
for the Adel clamps.
Step One
REF B, C and D
X4
Step Two
REF C and E
X4
Step Four
REF
B and F
X4
Step Five
REF B, G and H
X2
To Next Page
