Unit 3: Installation
Lt408 Operator Manual
3-20 PN: 9001152A

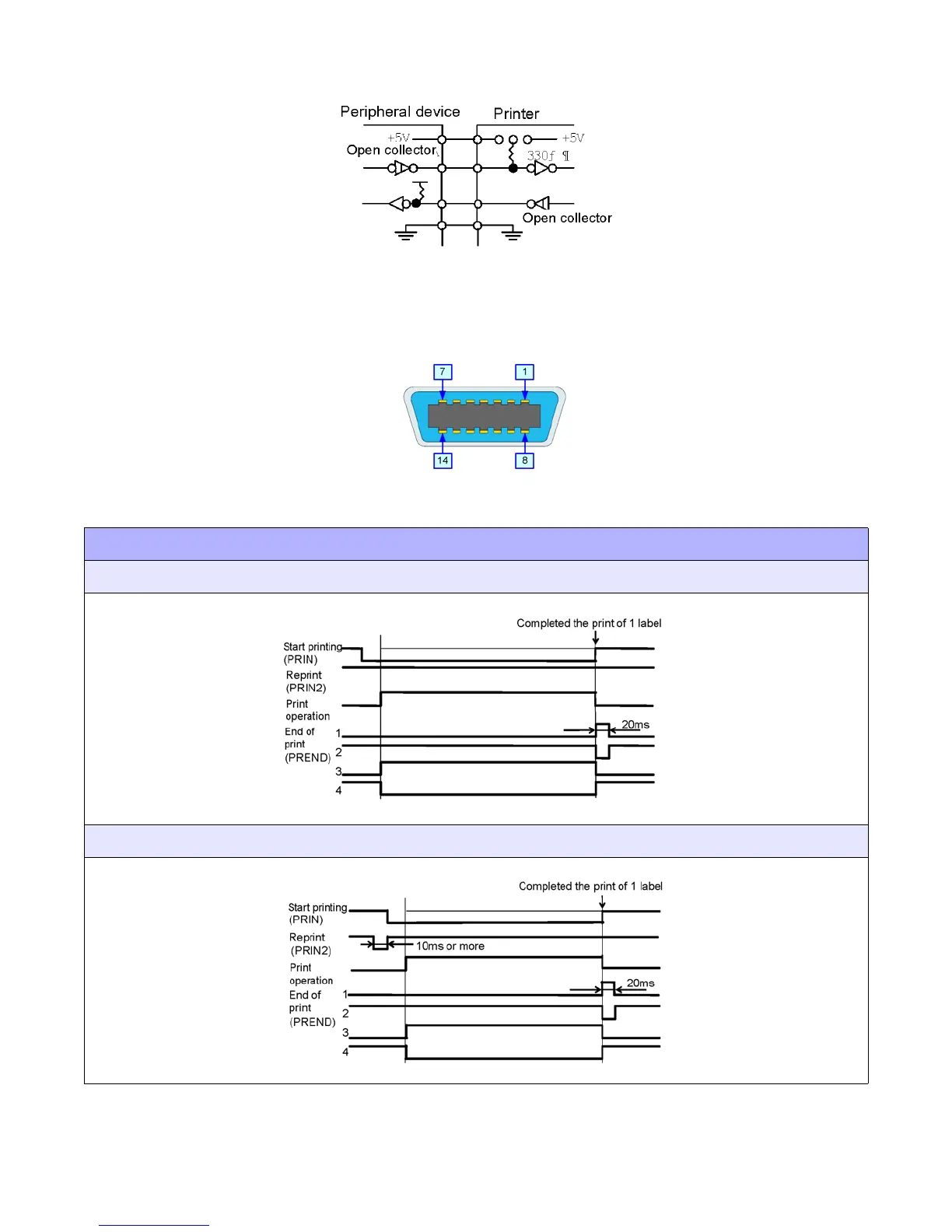

Figure 3-12, Input/Output Circuit Diagram
Figure 3-13, 14-Pin Connector Assignments
INPUT SIGNAL WAVE FORM
START PRINTING
(Figure 3-14a)
REPRINTING
(Figure 3-14b)
