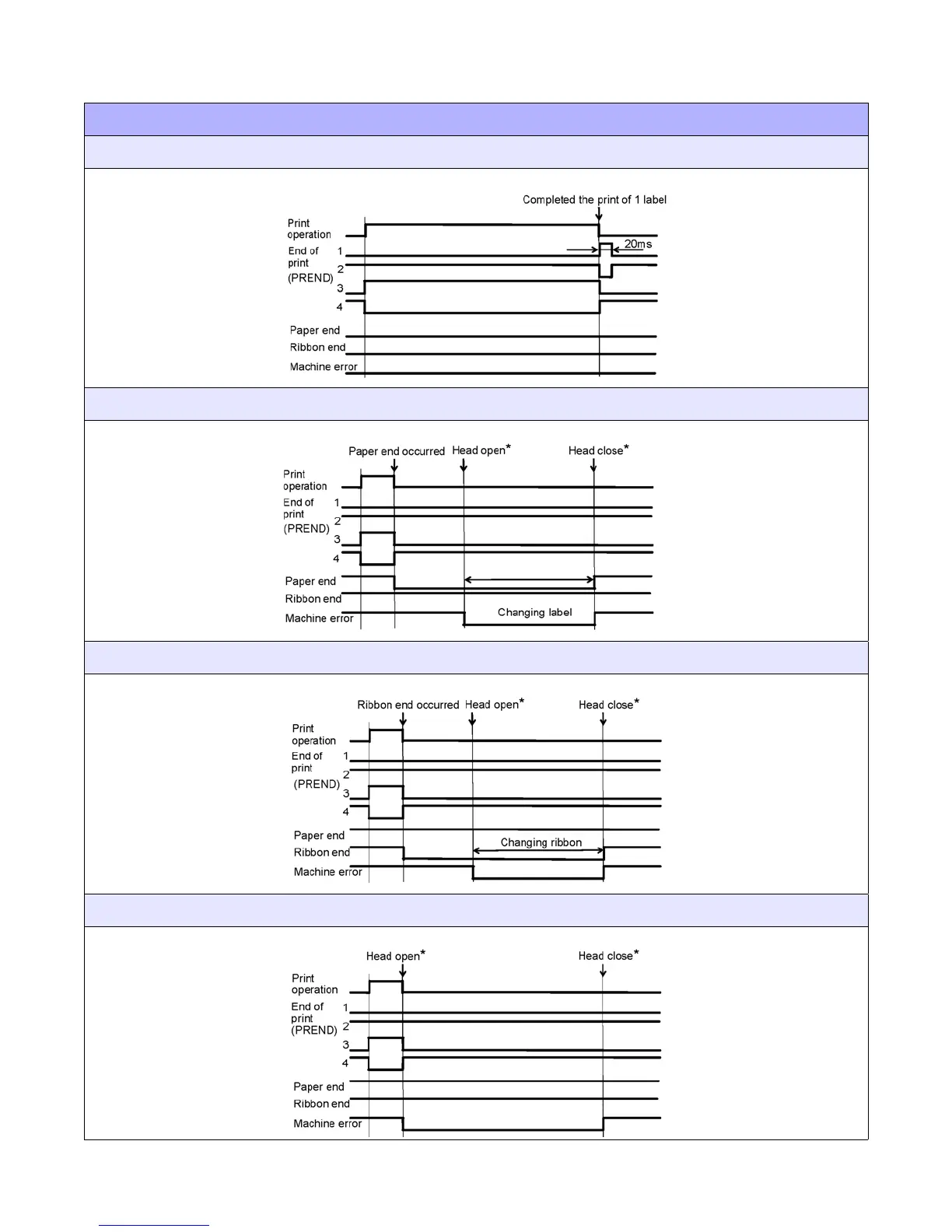

OUTPUT SIGNAL WAVE FORM
BASIC OPERATION
(Figure 3-15a)
PAPER END
(Figure 3-15b)
RIBBON END
(Figure 3-15c)
MACHINE ERROR
(Figure 3-15d)
