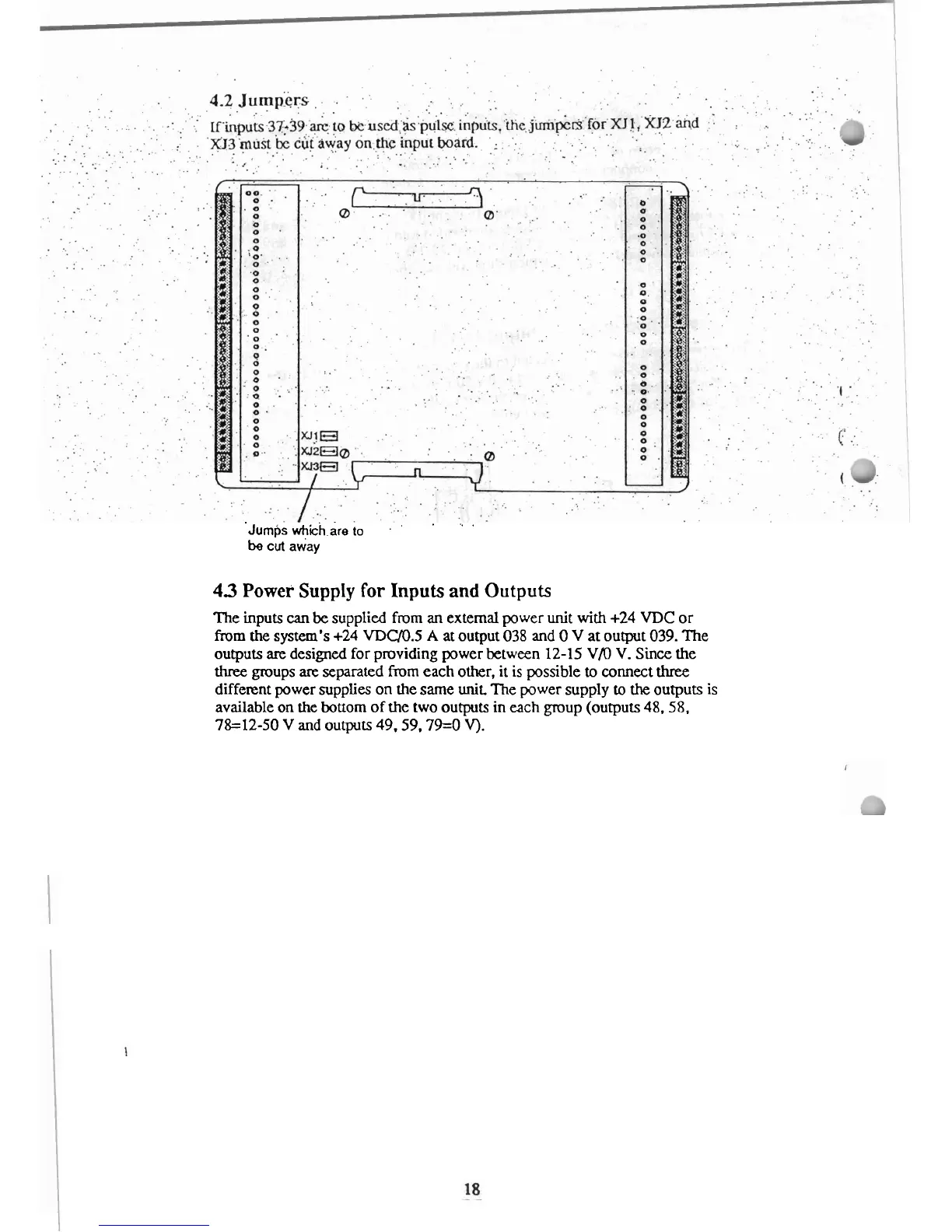

'~urnps
which
are
to
.
'
be
cut
away
43
Power
Supply
for
Inputs
and
Outputs
The inputs
can
be
supplied from
an
external power
unit
with
+24
VDC
or
from
the
system's +24 VDC70.5
A
at output 038
and
0
V
at output 039. The
outputs
are
designed for pmviding power between
12-15 V/O
V.
Since the
three
groups
are
separated
from
each other,
it
is
possible
to
connect
three
different power
supplies
on the same
unit
The power supply
to
the
outputs is
available
on
the bottom of the two outputs
in
each
group (outputs 48.58.
78=12-50
V
and
outputs 49.59,79=0
V).
