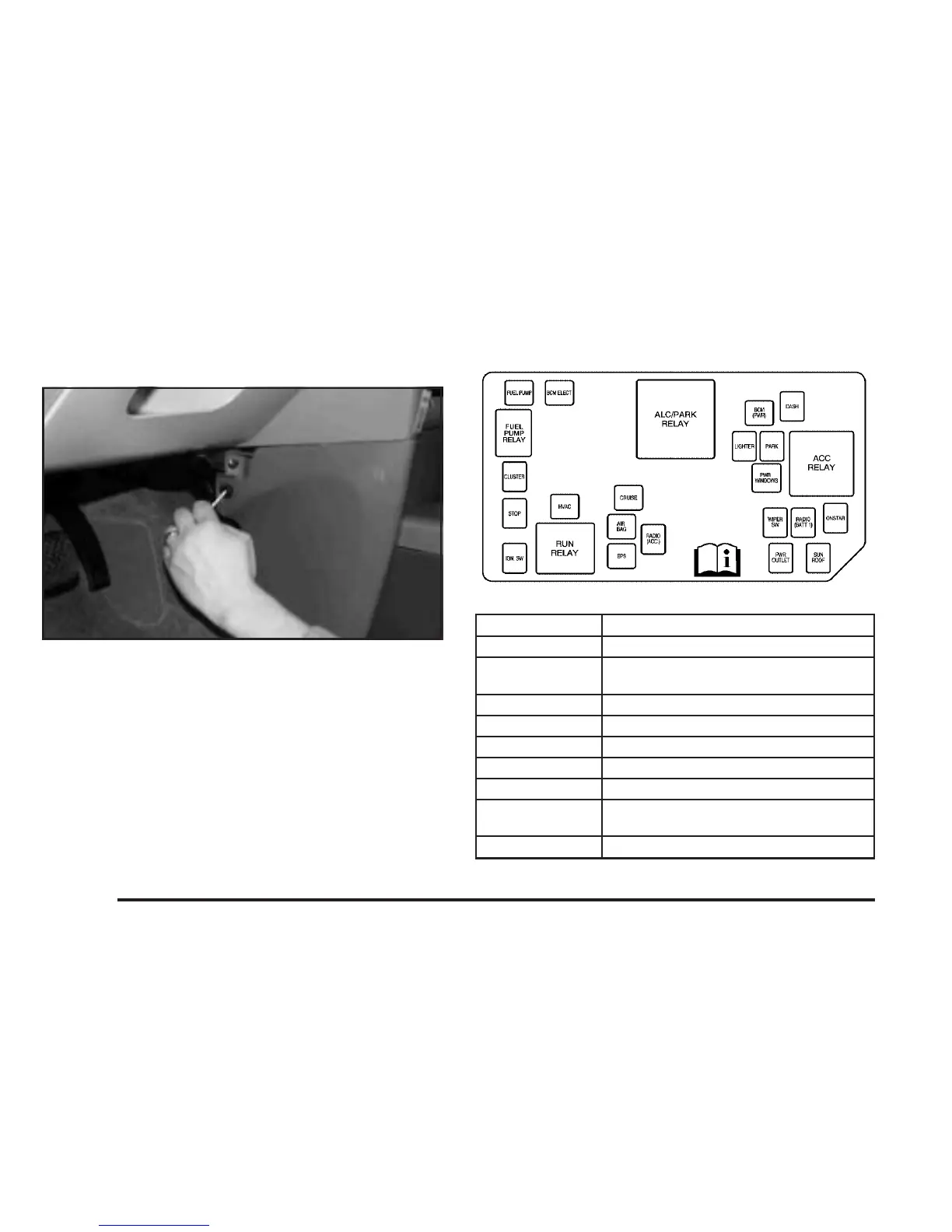

Instrument Panel Fuse Block
Some fuses are in a fuse block on the driver’s side of
the vehicle, near the driver’s right leg. Loosen the screw
on the cover and remove the cover.
Fuses Usage
FUEL PUMP Fuel Pump Relay
BCM ELECT
Ignition Switch, Body Control
Module (BCM)
BCM (PWR) Entry Control, Trunk Release
DASH Instrument Panel, Dimming Switch
LIGHTER Cigar Lighter
PARK Headlamp Switch
CLUSTER Instrument Panel Cluster
PWR
WINDOWS
Power Window Switches
STOP Stoplamp (Brake) Switch
