A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” under Windshield Washer Fluid
on page 5-34.
B. Coolant Surge Tank and Pressure Cap. See Cooling
System on page 5-28.
C. Brake Master Cylinder Reservoir. See “Brake Fluid”
under Brakes on page 5-35 and Hydraulic Clutch
on page 5-23.
D. Engine Oil Dipstick. See “Checking Engine Oil”
under Engine Oil on page 5-15.
E. Engine Air Cleaner/Filter. See Engine Air
Cleaner/Filter on page 5-21.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
under Engine Oil on page 5-15.
G. Power Steering Fluid Reservoir. See Power Steering
Fluid on page 5-33.
H. Remote Negative (−) Ground (Out of View).
See Jump Starting on page 5-39.
I. Battery (Out of View). See Battery on page 5-38.
J. Remote Positive (+) Terminal. See Jump Starting on
page 5-39.
K. Underhood Fuse Block. See Underhood Fuse Block
on page 5-96.
Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.

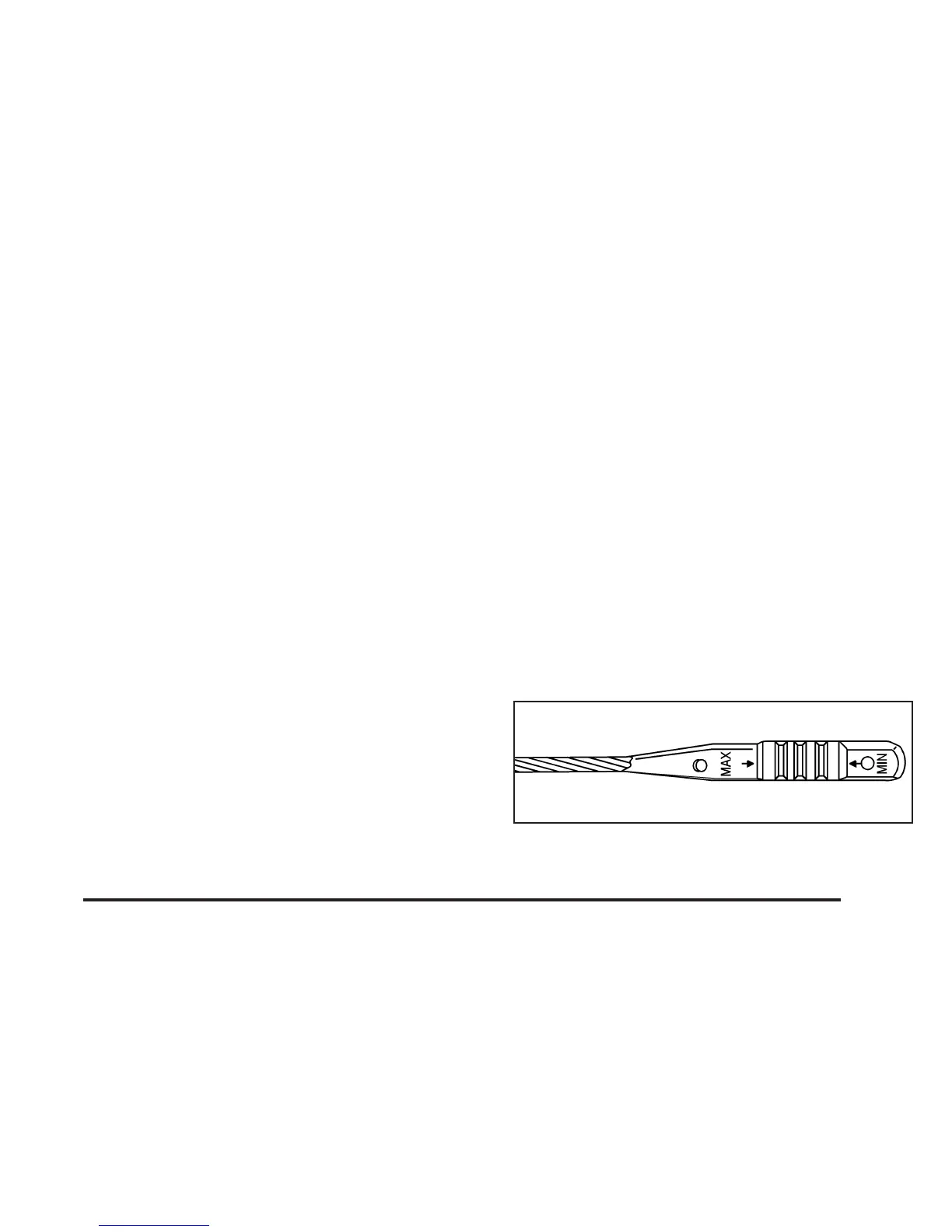

The engine oil dipstick handle is a yellow loop.
See Engine Compartment Overview on page 5-12 for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it
again, keeping the tip down and check the level.
When to Add Engine Oil
If the oil is below the MIN (minimum) mark, add at
least one quart/liter of the recommended oil.
