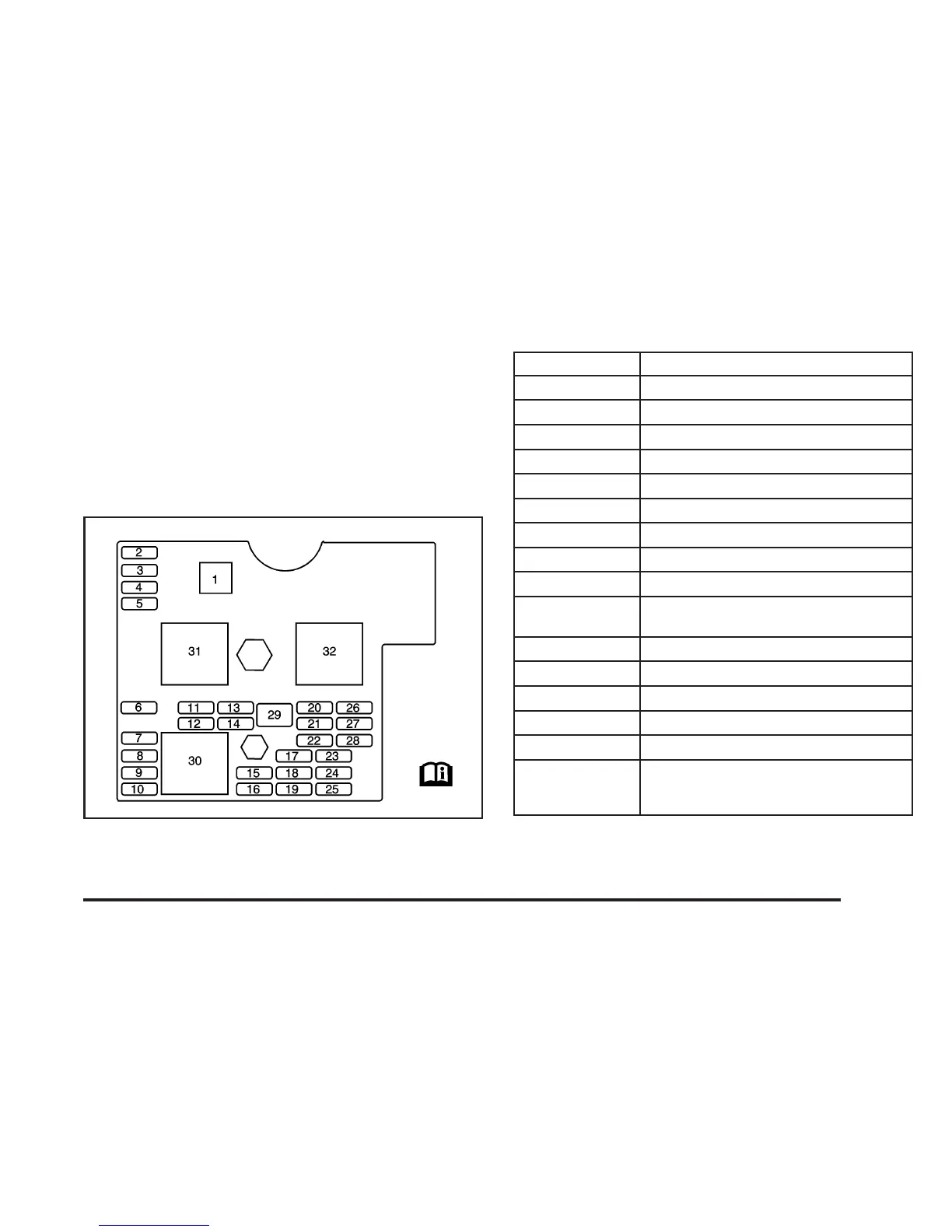

Floor Console Fuse Block
The floor console fuse block is located on the passenger
side of the vehicle under the carpet.
Remove the fuse block cover to access the fuses.
Use the fuse puller to remove fuses.
After re-installing the fuse block cover, be sure to tuck
the carpet under the heater floor outlets.
Fuses Usage
1 Fuse Puller
2 Empty
3 Empty
4 Empty
5 Empty
6 Amplifier
7 Cluster
8 Ignition Switch, PassKey III+
9 Stoplamp
10
Climate Control System,
PassKey III+
11 Empty
12 Spare
13 Airbag
14 Spare
15 Wiper
16
Climate Control System, Automatic
Occupant Sensing Module, Crank
Relay, Instrument Panel Cluster
5-95
