Relays Usage
LT/PWR/
SEAT
Driver Side Power
Seat Relay
RT/PWR/
SEAT
Passenger Side
Power Seat Relay
Relays Usage
PWR/
WNDW
Power Windows
Relay
PWR/
COLUMN
Power Steering
Column Relay
L/GATE Liftgate Relay
LCK Power Lock Relay
REAR/WSW
Rear Window
Washer Relay
UNLCK Power Unlock Relay
DRL2
Daytime Running
Lamps 2 Relay
LT/UNLCK
Driver Side Unlock
Relay
DRL
Daytime Running
Lamps Relay
SPARE Spare
FRT/WSW
Front Windshield
Washer Relay

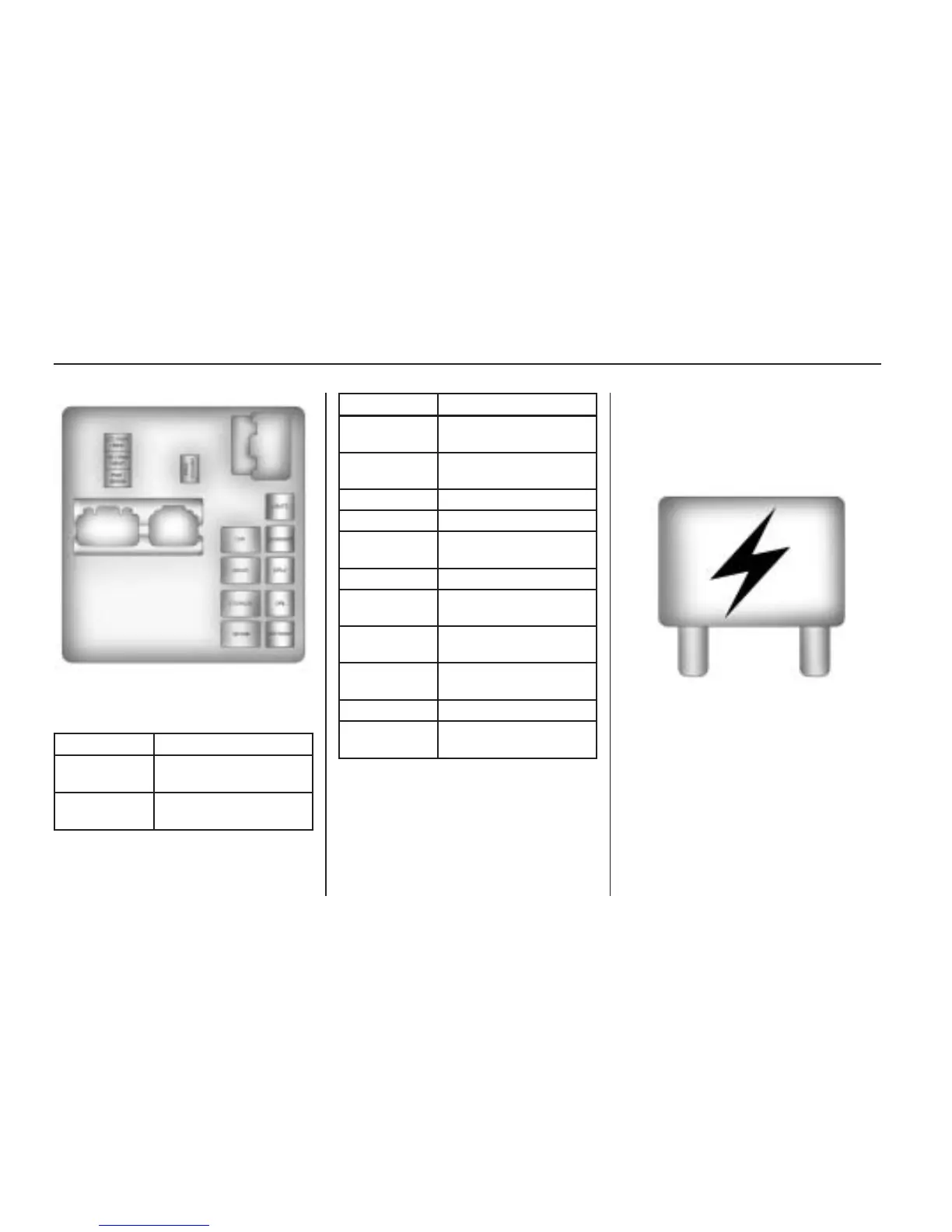

Underhood Fuse Block
The underhood fuse block is located
in the engine compartment, on
the passenger side of the vehicle.
Lift the cover for access to the
fuse/relay block.
Notice: Spilling liquid on any
electrical components on the
vehicle may damage it. Always
keep the covers on any electrical
component.
To remove fuses, hold the end of the
fuse between your thumb and index
finger and pull straight out.
Relay Side
5-94 Service and Appearance Care
To Next Page
