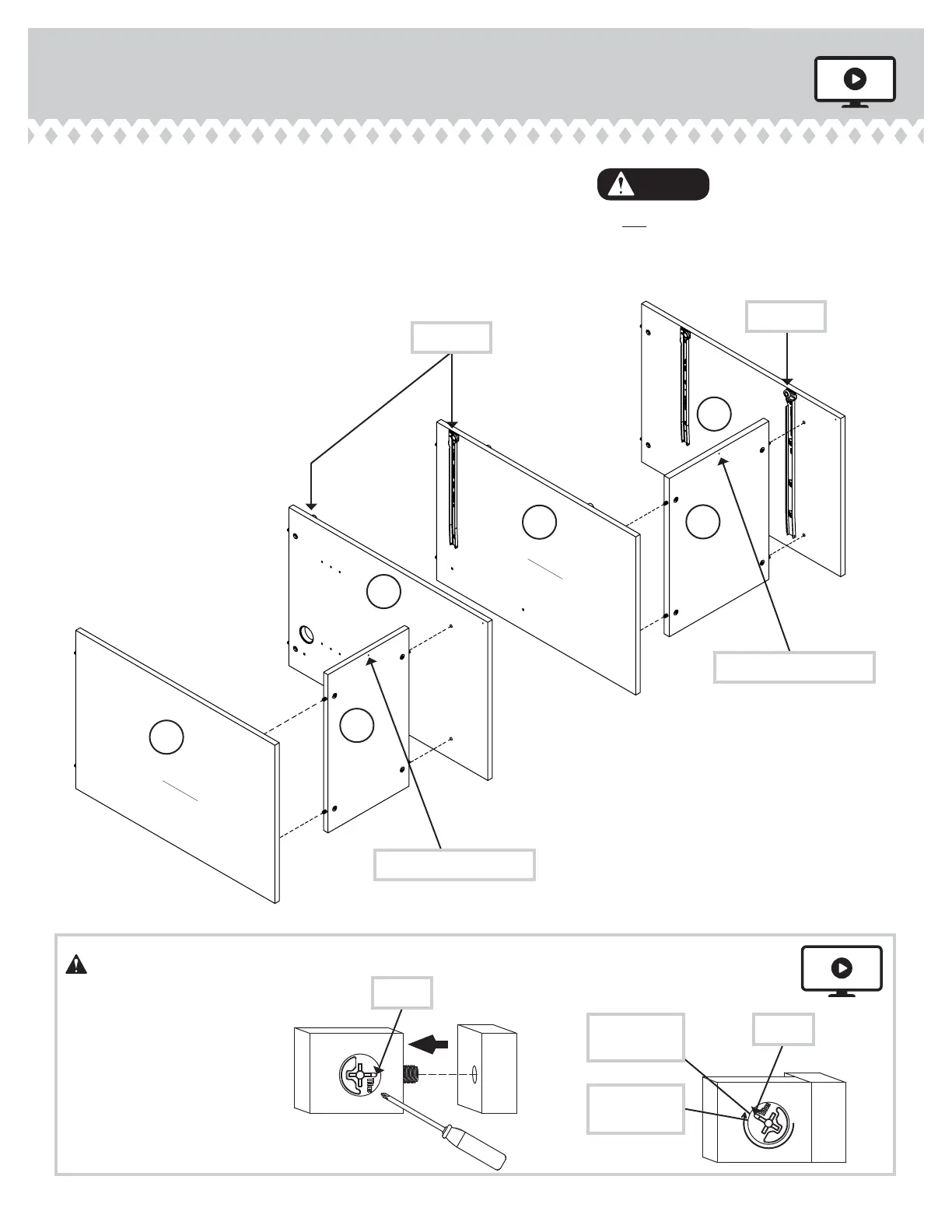

Fasten the ENDS (A2 and B) and UPRIGHTS (C2 and D2) to
the BOTTOMS (G2 and H). Tighten eight HIDDEN CAMS.
Step 3
402375 www.sauder.com/servicesPage 8
Start Tighten
Arrow
Minimum
190 degrees
Caution
Risk of damage or
injury. HIDDEN CAMS
must be completely
tightened. HIDDEN
CAMS that are not
completely tightened
may loosen, and parts
may separate. To
completely tighten:
Arrow
Maximum
210 degrees
A2
D2
C2
B
H
G2
Roller end
Roller end
This hole must be here.
This hole must be here.
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
Surface without
HIDDEN CAMS
Surface without
HIDDEN CAMS
Surface with
HIDDEN CAMS
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
