Sauder 408726 - Step 11: Attach Door Hinge and Strike Plate; Single Hinge Attachment Note

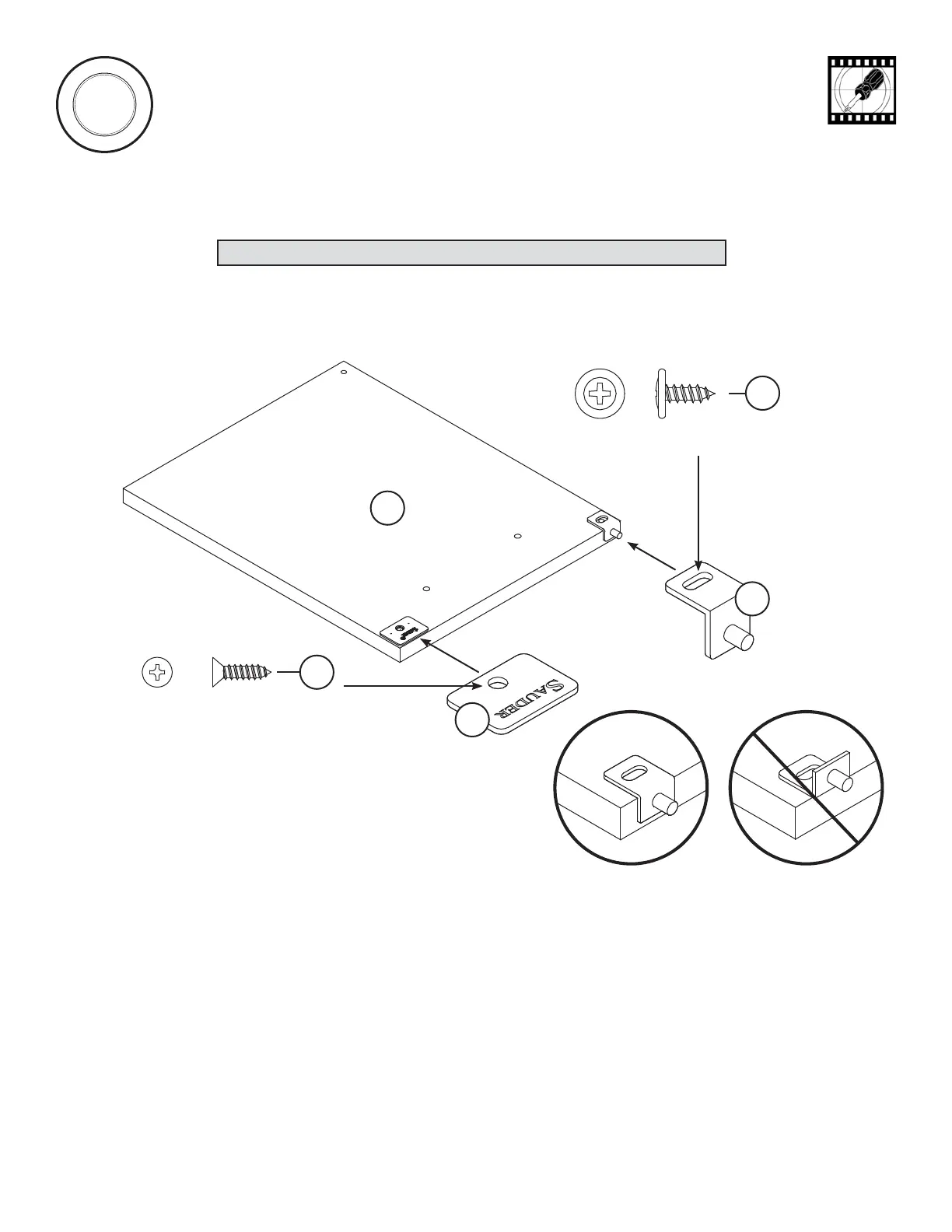

Fasten a PIVOT HINGE (X) to the DOOR (N). Use one BROWN 7/16" LARGE HEAD SCREW (HH).
Fasten a STRIKE PLATE (W) to the DOOR (N). Use one BLACK 1/2" FLAT HEAD SCREW (GG).
NOTE: The surface of the STRIKE PLATE with “SAUDER” should be facing up.
11
11
S
t
e
p
BLACK 1/2” FLAT HEAD SCREW
(1 used in this step)
GG
BROWN 7/16” LARGE HEAD SCREW
(1 used in this step)
HH
N
Page 15
www.sauder.com/services408726
W
X
IMPORTANT: ONLY FASTEN ONE HINGE TO THE DOOR IN THIS STEP.
