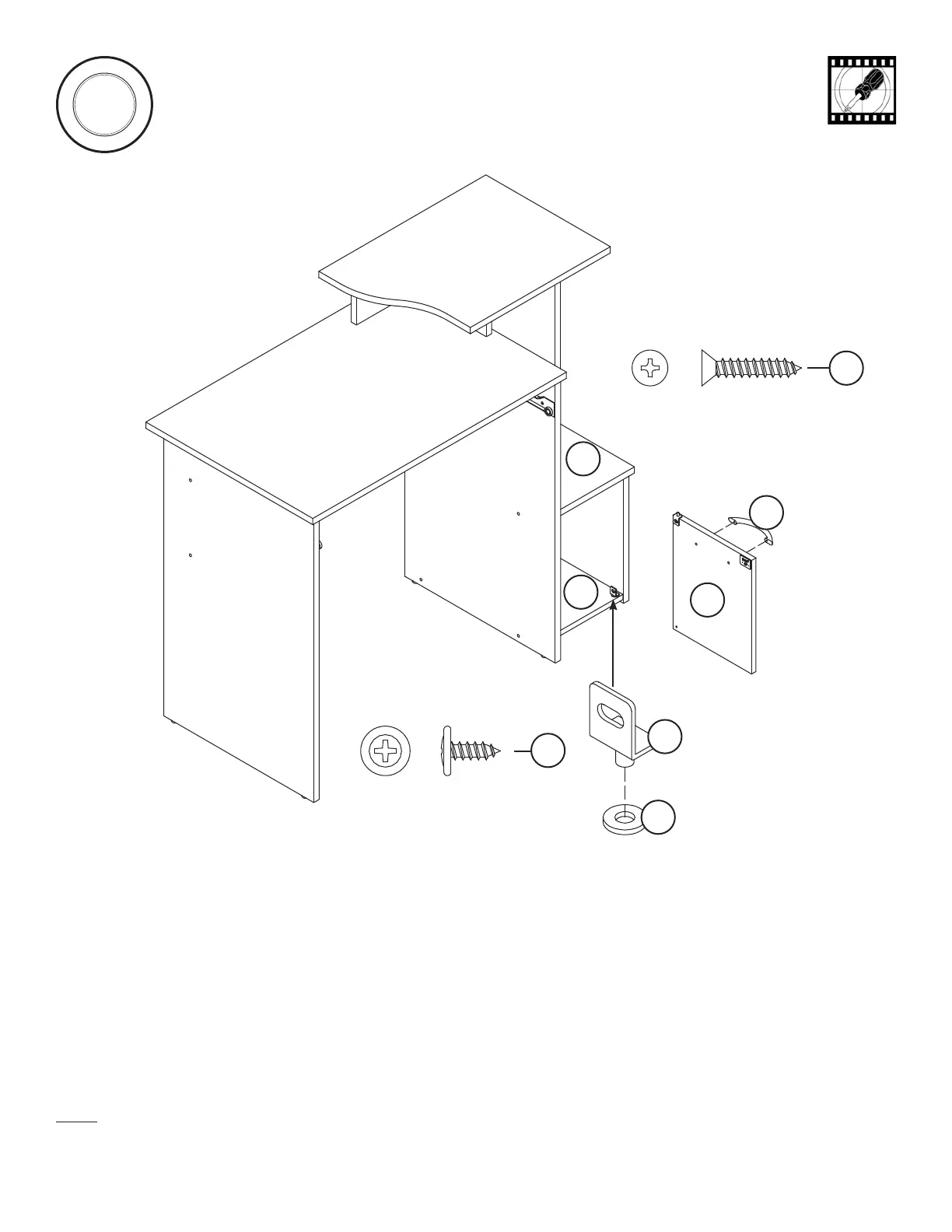

Carefully stand your unit upright.
Insert the remaining PIVOT HINGE (X) into the WASHER (Y) and into the BOTTOM(I).
Insert the PIVOT HINGE, which is fastened to the DOOR (N), into the hole in the SHELF (H3). You will need to tilt your DOOR
slightly.
Now, tip the DOOR in and fasten the free HINGE to the DOOR. Use a BROWN 7/16" LARGE HEAD SCREW (HH).
Fasten the HANDLE (Z) to the DOOR (N). Use two BLACK 7/8" FLAT HEAD SCREWS (FF).
NOTE: To make adjustments to the DOOR, loosen the SCREW in the HINGE, make needed adjustments, and tighten the SCREW.
12
S
t
e
p
BLACK 7/8" FLAT HEAD SCREW
(2 used for the HANDLE)
FF
BROWN 7/16" LARGE HEAD SCREW
(1 used for the PIVOT HINGE)
HH
I
X
Y
Z
H3
N
Page 16 www.sauder.com/services 408726
