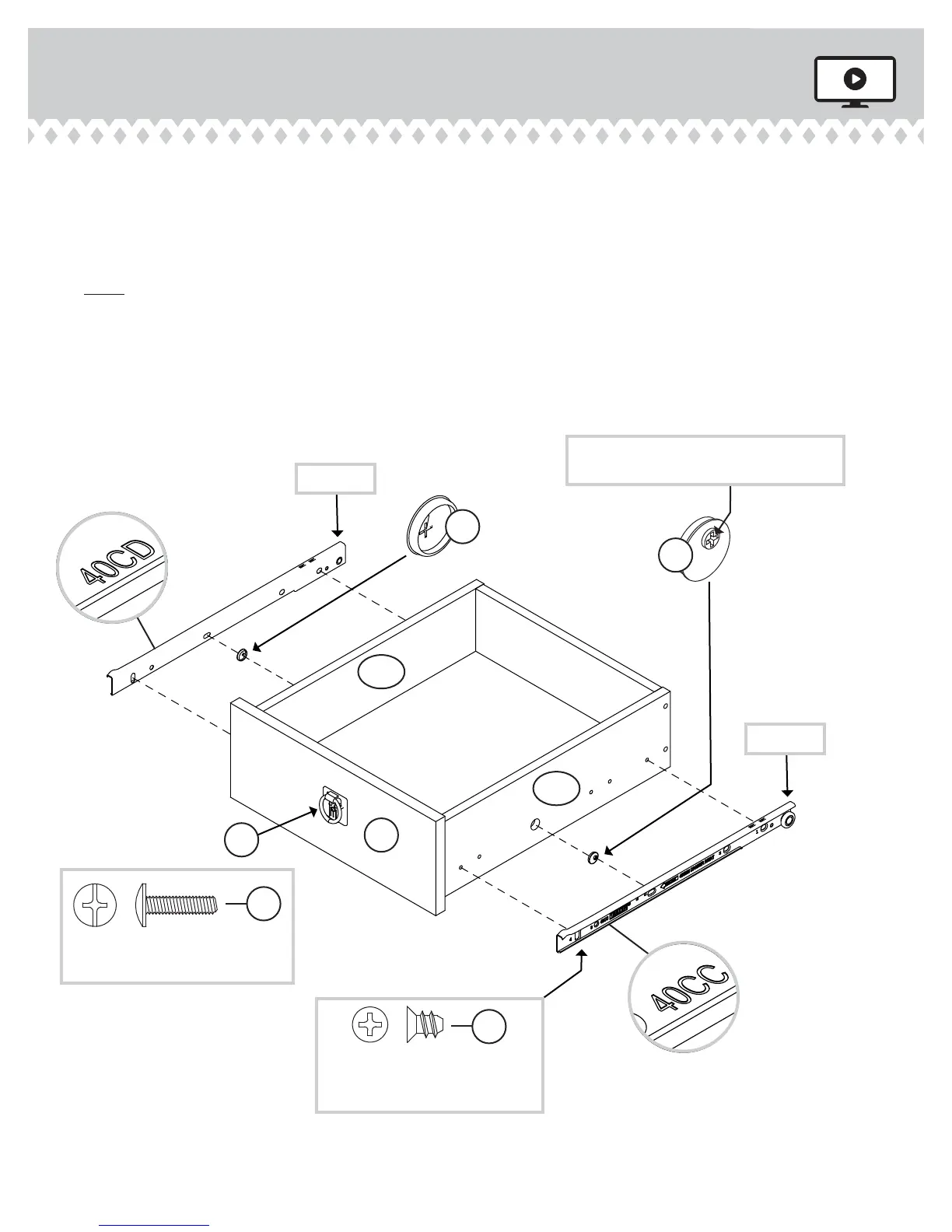

Insert a SLIDE CAM (GG) into each DRAWER SIDE (D107 and D108).
å
Fasten the DRAWER RIGHT (40CC) and DRAWER LEFT (40CD) to
the DRAWER SIDES (D107 and D108). Use four GOLD 5/16" FLAT
HEAD SCREWS (QQ) through holes #1 and #4.
å
NOTE: The screw head in the CAM must be visible through the
slotted hole in the SLIDE.
å
Fasten a PULL (II) to the DRAWER FRONT (T). Use a SILVER 5/8"
MACHINE SCREW (OO).
Step 13
408761www.sauder.com/services
Page 17
Screw head - turn CAM to line up holes in
the SLIDES with holes in DRAWER SIDES
GG
GG
GOLD 5/16" FLAT HEAD SCREW
(4 used in this step)
QQ
D107
D108
T
1
2
3
4
Roller end
Roller end
1
2
3
4
SILVER 5/8" MACHINE SCREW
(1 used for the PULL)
OO
II
