Step 20
408995www.sauder.com/services
Page 25
å

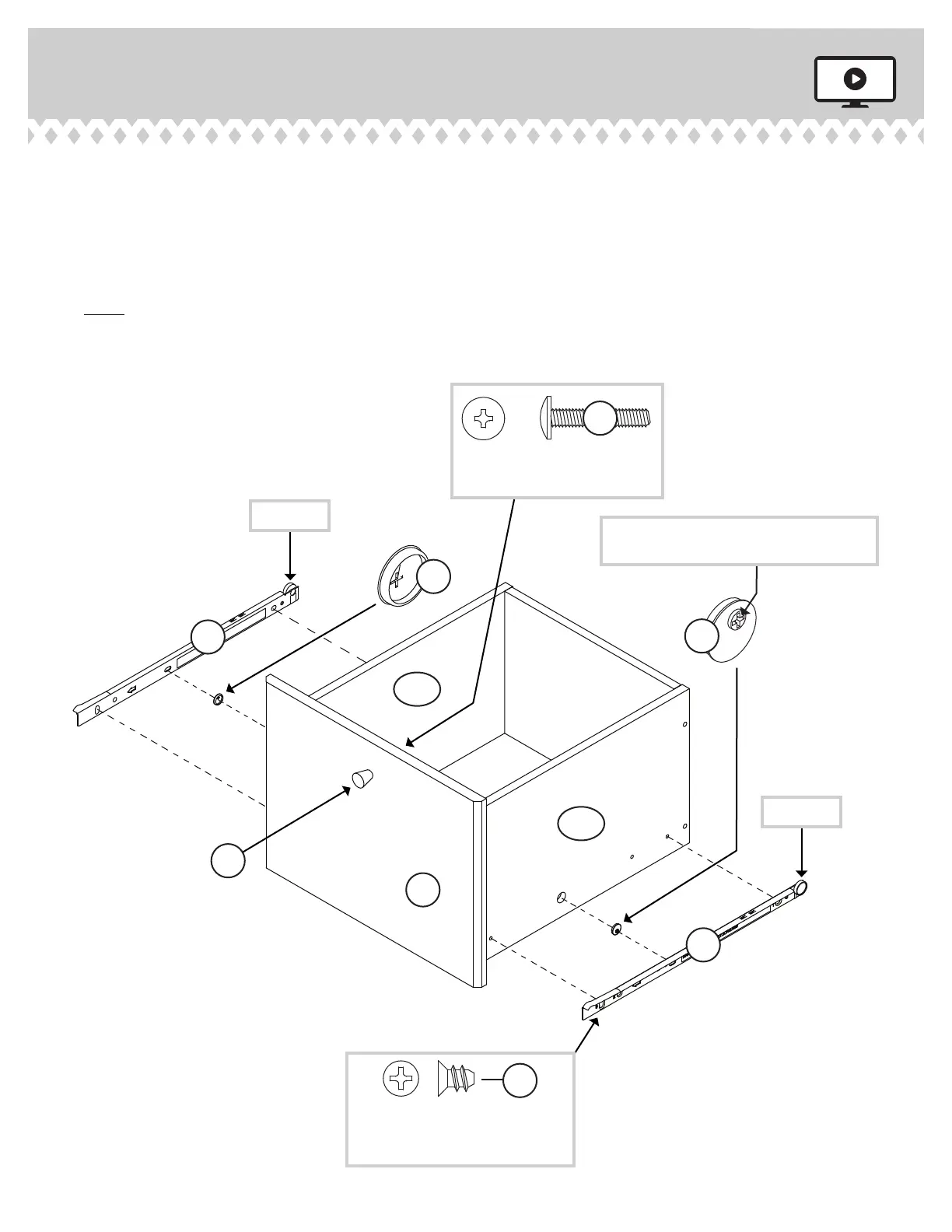

Insert a SLIDE CAM (10A) into each DRAWER SIDE (D28 and D29).
å
Fasten the LONG RIGHT DRAWER SLIDE (W) to the RIGHT DRAWER
SIDE (D28) and the LONG LEFT DRAWER SLIDE (X) to the LEFT
DRAWER SIDE (D29). Use four GOLD 5/16" FLAT HEAD SCREWS (3S)
through holes #1 and #3.
å
NOTE: The screw head in the CAM must be visible through the slotted
hole in the SLIDE.
å
Fasten a KNOB (25K) to the DRAWER FRONT (M). Use a BLACK 7/8"
MACHINE SCREW (37S).
Screw head - turn CAM to line up holes in
the SLIDES with holes in DRAWER SIDES
GOLD 5/16" FLAT HEAD SCREW
(4 used for the SLIDES)
3S
1
2
3
1
2
3
W
X
10A
10A
25K
Roller end
Roller end
M
BLACK 7/8" MACHINE SCREW
(1 used for the KNOB)
37S
D28
D29
