Page 8 www.sauder.com/services 413072

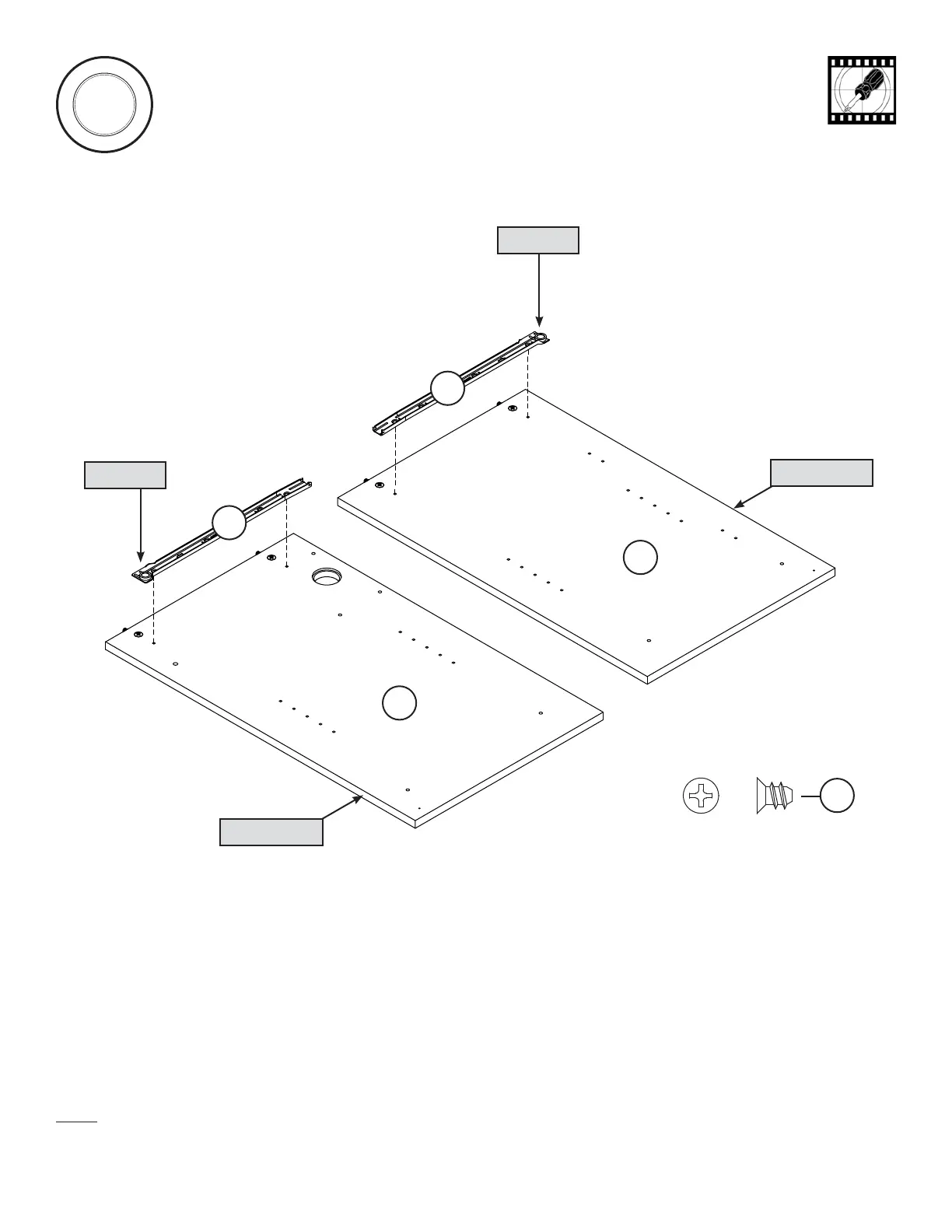

Fasten the LONG RIGHT CABINET RAIL(U) to the RIGHT END (A) and the LONG LEFT CABINET RAIL (V) to the UPRIGHT (C).
Use four GOLD 5/16" FLAT HEAD SCREWS (YY) through holes #1 and #4.
NOTE: The CABINET RAILS are marked "CABINET RIGHT" and "CABINET LEFT" for easy identification.
GOLD 5/16" FLAT HEAD SCREW
(4 used for the in this step)
YY
1
2
3
4
4
3
2
1
Finished edge
Finished edge
Roller end
Roller end
A
C
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
U
V
To Next Page
