Sauder 413852 - Page 11

å

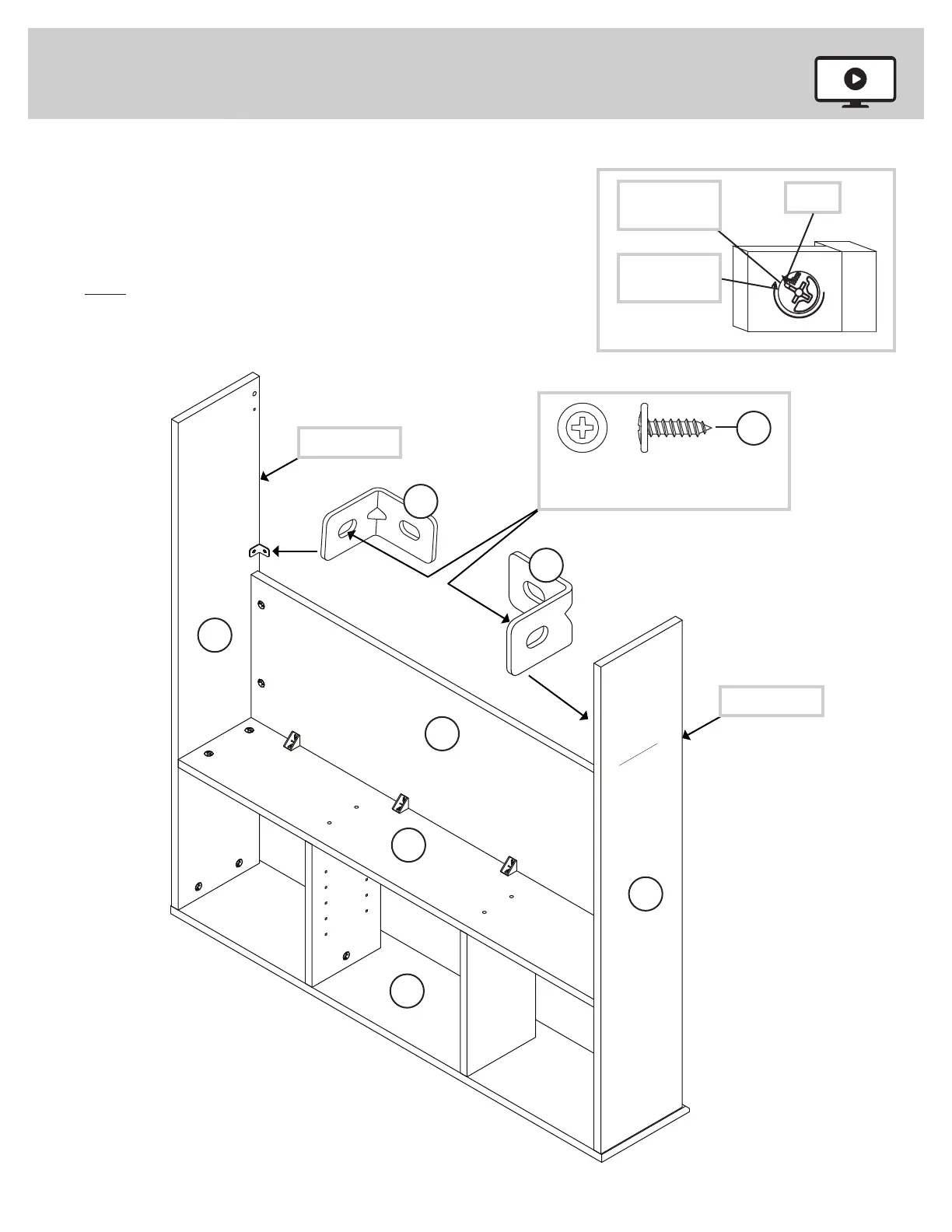

Fasten the ENDS (A and B) to the TOP (J), SHELF (L), and
SHELF BRACE (M). Tighten twelve HIDDEN CAMS.
å
Fasten two METAL BRACKETS (4G) to the ENDS (A and B).
Use two BLACK 9/16" LARGE HEAD SCREWS (1S).
å
NOTE: Be sure the BRACKETS are even with the edges of
the ENDS (A and B).
Step 7
413852www.sauder.com/service
Page 11
Arrow
Minimum
190 degrees
Maximum
210 degrees
Surface
with
HIDDEN
CAMS
B
M
L
J
Finished edge
Surface
without
HIDDEN
CAMS
A
Finished edge
BLACK 9/16" LARGE HEAD SCREW
(2 used for the METAL BRACKETS)
1S
4G
4G
