Step 1
Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å
Assemble your unit on a carpeted fl oor or on the empty
carton to avoid scratching your unit or the fl oor.
å

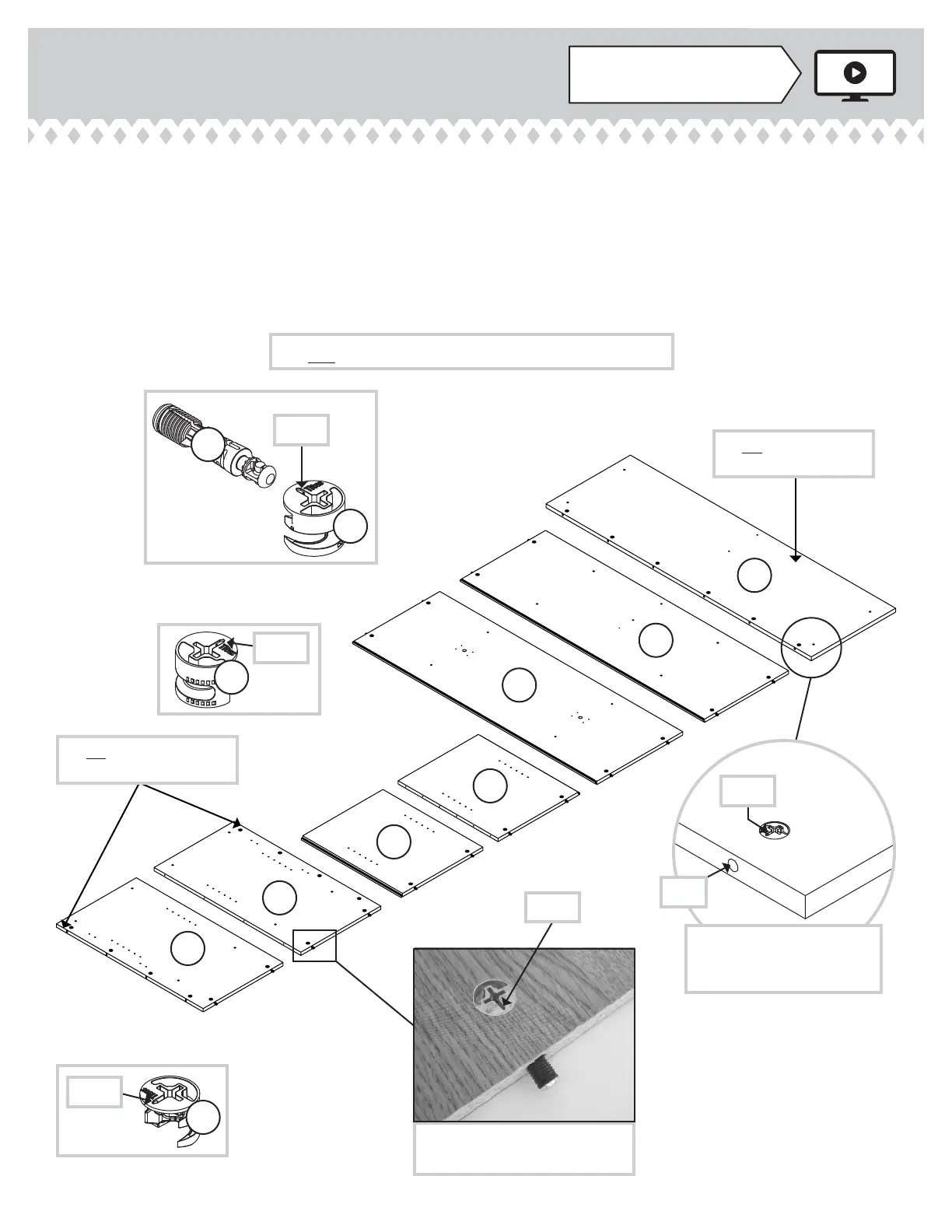

Push thirty HIDDEN CAMS (1F) into the ENDS (A and B),
UPRIGHTS (C and D), TOP (F), BOTTOM (G), and SHELF (H).
Then, insert the metal end of a CAM DOWEL (2F) into each
HIDDEN CAM except for the long edges of the ENDS (A
and B) and TOP (F).
419119www.sauder.com/services
Page 5
(16 used)
Arrow
1F
2F
Do not tighten the HIDDEN CAMS in this step.
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
Arrow
Arrow
1F
The arrow in the HIDDEN
CAM must point toward the
hole in the edge of the board.
Hole
1F
Arrow
Do not insert CAM
DOWELS into this part.
Do not insert CAM
DOWELS into these edges.
(30 used)
A
B
C
D
F
G
H
