Sauder 420203 - Page 15

å

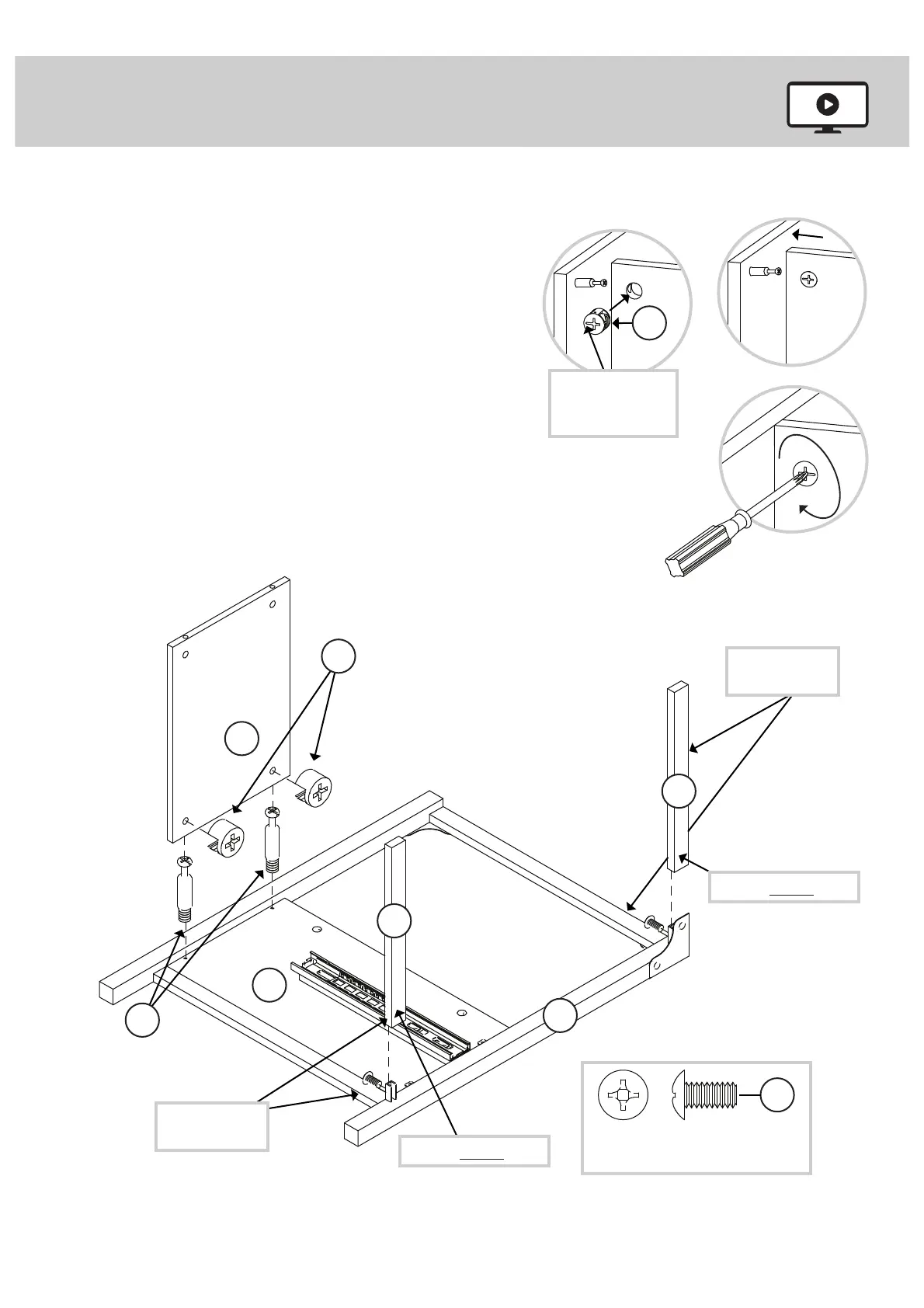

Separate the BLACK 1/2" MACHINE SCREWS (17 and 20). Use
the thicker SCREW (20) in this step.
å
Turn two CAM SCREWS (7) into the RIGHT END (E).
å
Insert two SMALL HIDDEN CAMS (6) into the LARGE BACK (J).
å
Fasten the LARGE BACK (J) to the RIGHT END (E). Tighten two
HIDDEN CAMS.
å
Fasten the SHORT BRACES (P) to the RIGHT LEG (A). Use two
BLACK 1/2" MACHINE SCREWS (20).
Step 11
Page 15www.sauder.com420203
7
E
J
A
P
3
21
6
The arrow must
point toward the
edge of the board.
6
BLACK 1/2" MACHINE SCREW
(2 used for the SHORT BRACES)
20
These edges
should be even.
These edges
should be even.
Surface
with holes
Surface without holes
Surface without holes
P
