Fasten the STRIKE PLATES (6I) to the SMALL DOOR (M). Use
two BLACK 1/2" FLAT HEAD SCREWS (11S).
å
Fasten the PULL (102K) to the SMALL DOOR (M). Use two
SILVER 3/4" MACHINE SCREWS (20S).
å
Fasten the DOOR END (C) and DOOR UPRIGHT (H) to the
SMALL DOOR (M). Tighten six TWIST-LOCK® FASTENERS.
å
NOTE: Use the exact holes shown.
å
Fasten the HINGES (1H) to the DOOR END (C). Use eight
BLACK 9/16" LARGE HEAD SCREWS (1S).

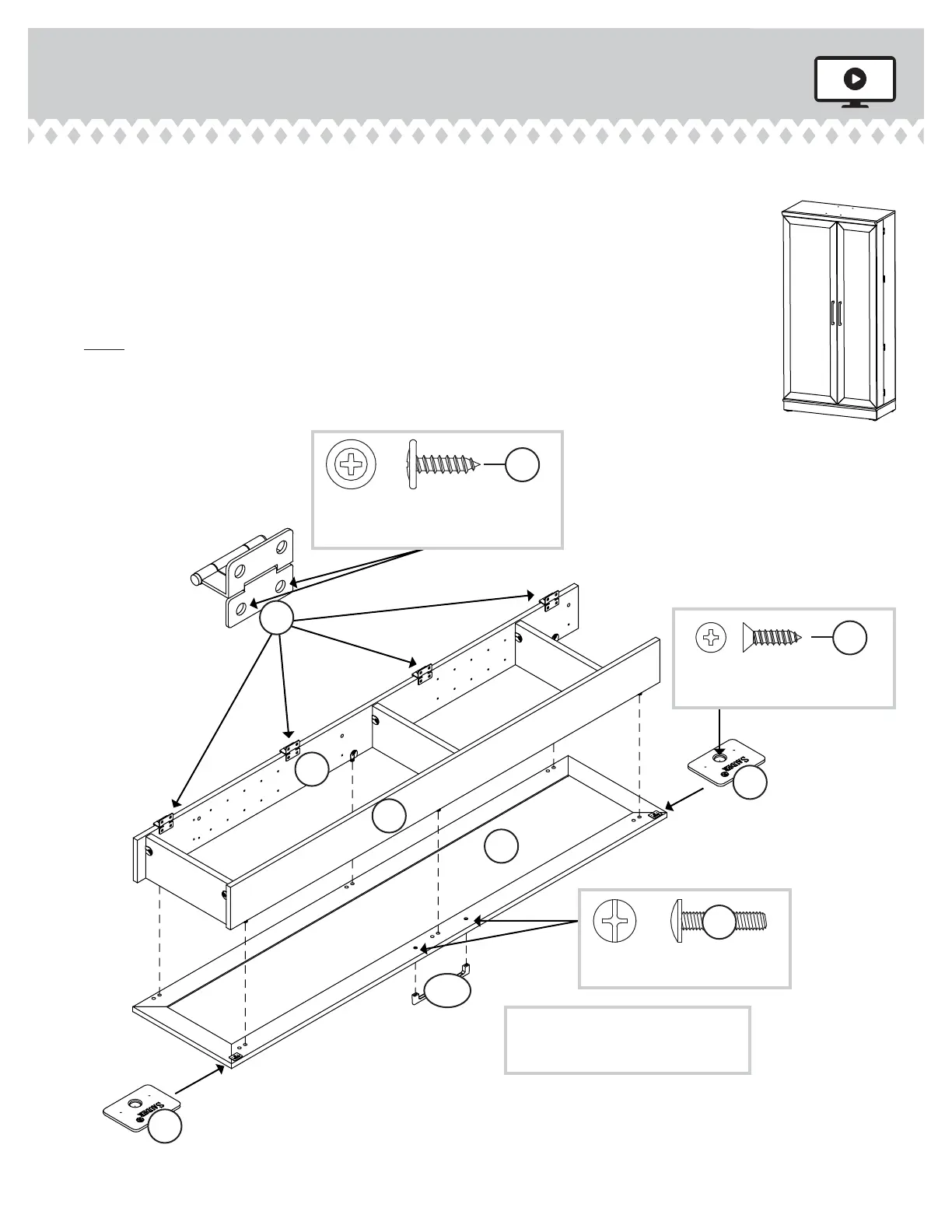

Step 10
C
H
M
6I
6I
1H
BLACK 9/16" LARGE HEAD SCREW
(8 used for the HINGES)
1S
SILVER 3/4" MACHINE SCREW
(2 used for the PULL)
20S
BLACK 1/2" FLAT HEAD SCREW
(2 used for the STRIKE PLATES)
11S
IMPORTANT: The PULL (102K) must
be fastened to the DOOR before the
END and UPRIGHT are fastened.
422427 www.sauder.com/servicesPage 16
LARGE DOOR ON LEFT
102K
To Next Page
