Step
å

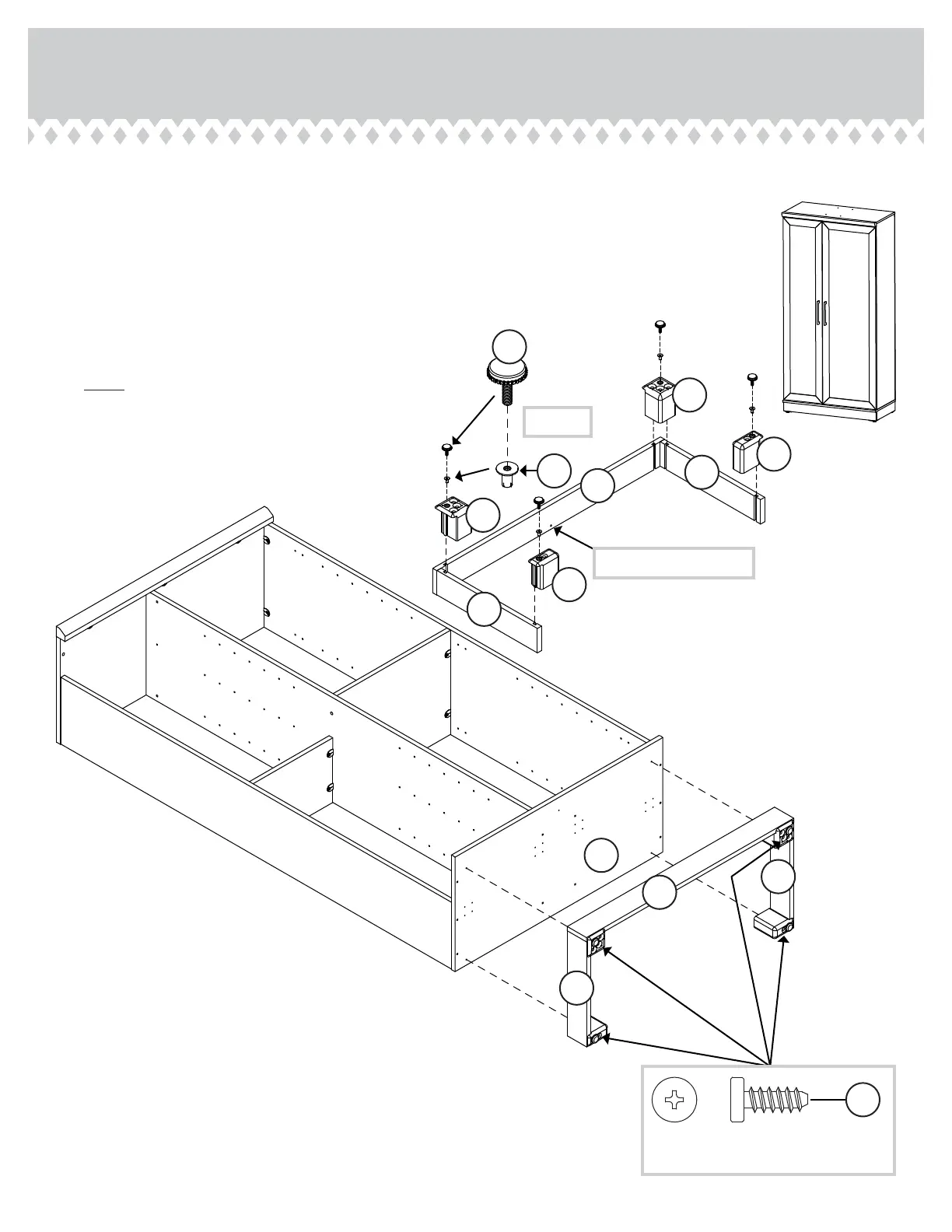

Slide the FEET (31E and 32E) into the notches in the SKIRTS (Q and R).
å
Use a hammer to drive a PROPEL NUT (14M) into the holes in the
FEET (31E and 32E). Now, turn an ADJUSTABLE GLIDE (18E) into each
PROPEL NUT as shown in the upper diagram.
å
Fasten the SKIRTS (Q and R) to the BOTTOM (F2). Use four
BLACK 9/16" WAFER HEAD SCREWS (33S) through
the FEET and into the BOTTOM as shown
in the lower diagram.
å
NOTE: You should start each SCREW a few
turns before completely tightening
any of them.
Step 24
This hole must be here.
18E
14M
(4 used)
Q
R
R
32E
32E
31E
31E
Q
R
R
F2
BLACK 9/16" WAFER HEAD SCREW
(4 used for the FEET)
33S
422427 www.sauder.com/servicesPage 30
